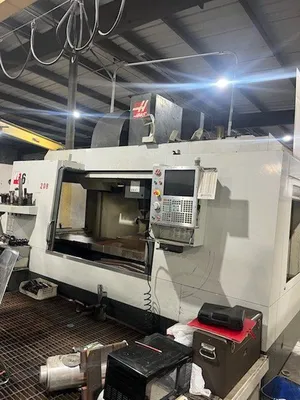

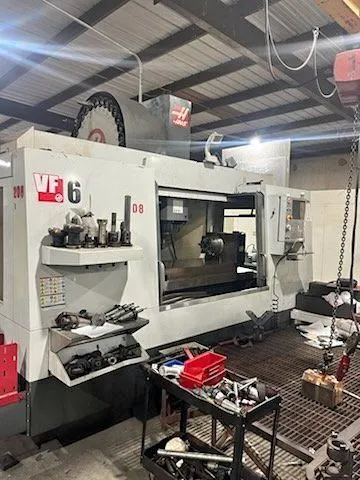

Haas VF6/50 4 Axis Vertical Machining Center (2012)

Haas VF6/50 4 Axis Vertical Machining Center (2012)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Machining Centers, Vertical
Manufacturer:
HAAS
Model:
VF-6/50
Year:
2012
Stock #:
95617
Status:
For Sale

Description

Haas VF6/50 4 Axis Vertical Machining Center (2012)

size64" x 32" x 30"64" x 32" x 30"
X Travel64"1,625.6 mm
Y Travel32"812.8 mm
Z Travel30"762 mm
Power30 hp22.4 kW
RPM7,500 RPM7,500 RPM
# ATC3030
Taper5050
Table-W28"711.2 mm
Table-L64"1,625.6 mm
# Axis44

Haas VF6/50 4 Axis Vertical Machining Center (2012)

X-Axis: 64.0 in (1,626 mm)
Y-Axis: 32.0 in (813 mm)
Z-Axis: 30.0 in (762 mm)
SpindleMax Power: 30.0 hp (22.4 kW)
Max Speed: 7,500 rpm
Max Torque: 340 ft-lbf @ 700 rpm (460 Nm)
Taper Type: CAT 50 (or BT 50)
Drive System: 2-speed gearbox
Table & Capacity
Length: 64.0 in (1,626 mm)Width: 28.0 in (711 mm)
Max Table Load: 4,000 lbs (1,814 kg)
Tool Changer & Feed Rates
Capacity: 30+1 tools (side-mount)
Max Tool Weight: 30 lbs (13.6 kg)
Rapid Traverse (X/Y/Z): 600 ipm (15.2 m/min)

4th Axis Rotary Table
