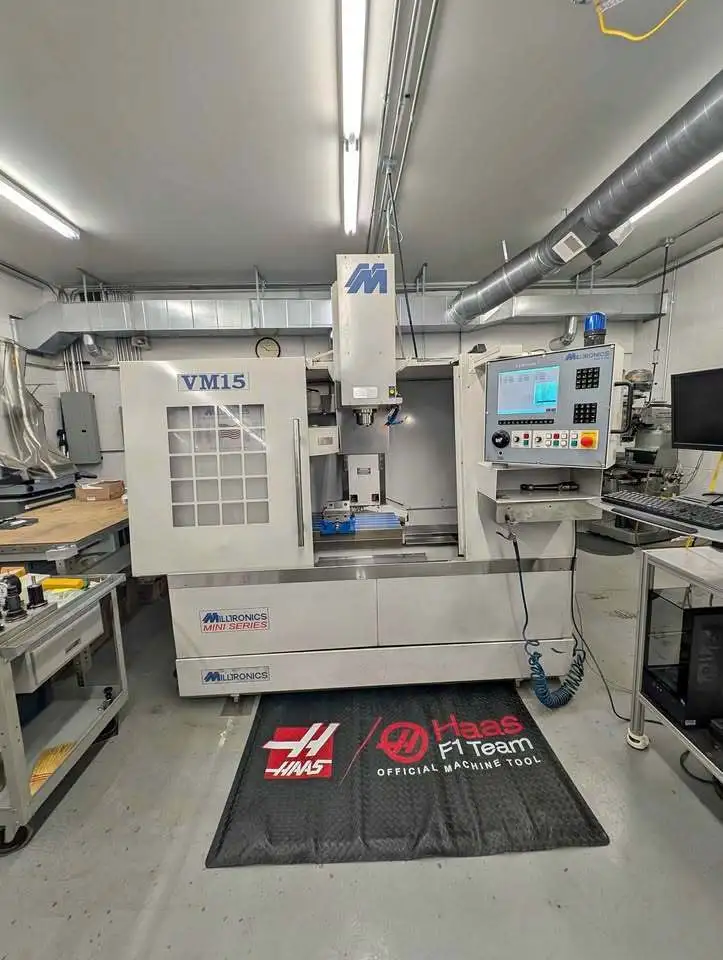

Milltronics VM15 Vertical Machining Center

Milltronics VM15 Vertical Machining Center

Travels & Table Capacity
X-Axis Travel: 24 inches (some variants up to 25 inches)
Y-Axis Travel: 16 inches
Z-Axis Travel: 20 inches
Table Size: Approx. 16 x 40 inches
Max Table Load: 1,200 lbs
Spindle & Feed Rates
Spindle Speed: 100–8,000 RPM (belt-driven)
Spindle Taper: CAT 40 (or 40 taper)
Spindle Motor: 10 HP
Rapid Traverse Rate: 1,000 IPM (X & Y axes), 800 IPM (Z axis)
Max Cutting Feed Rate: 500 IPM
Tool Changer & Power
Tool Changer Capacity: 16-station carousel (or up to 20-station depending on exact build series)
Max Tool Weight: 15 lbs
Max Tool Length: 9 inches
Power Requirement: 220 Volt, 3-Phase
Control: Milltronics Centurion
