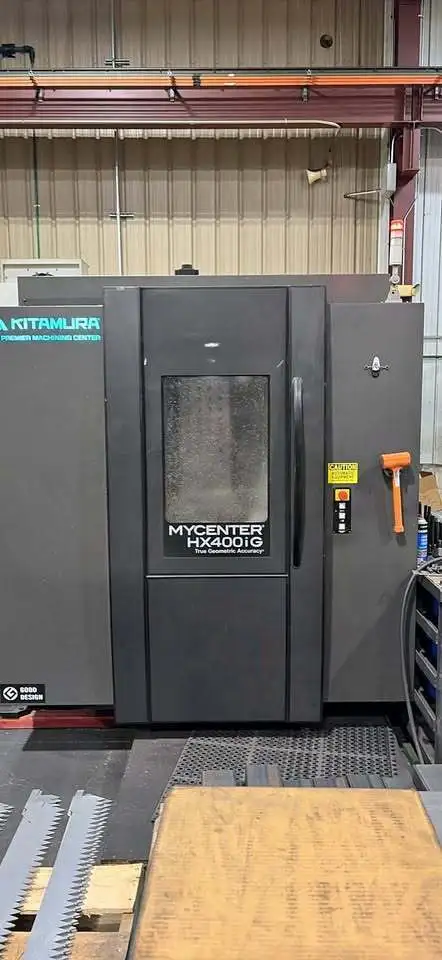

Kitamura Mycenter HX400iG Horizontal Machining Center (2017)

Kitamura Mycenter HX400iG Horizontal Machining Center (2017)

Travel & Capacity

X-Axis Travel: 24.0 inches (610 mm)
Y-Axis Travel: 24.0 inches (610 mm)
Z-Axis Travel: 24.0 inches (610 mm)
Pallet Size: 15.75" x 15.75" (400 x 400 mm)
Pallet System: 2-station rotating pallet system (expandable)B-Axis (4th Axis):
Full 4th axis rotary table with 0.001° indexing
Spindle
Spindle Speed: 40 to 15,000 RPM (Direct drive, dual-contact)
Taper: 40
Spindle Motor: 30 HP / 40 HP peak
Automatic Tool Changer (ATC)Standard Capacity: 50
Tool-to-Tool Time: 1.3 seconds
Chip-to-Chip Time: 2.5 seconds minimum
Max. Tool Diameter: Ø3.7" (95 mm) with adjacent tools / Ø5.9" (150 mm) without
Max. Tool Length: 14.6 inches (370 mm)
Max. Tool Weight: 22 lbs (10 kg)
Feedrates & Motion
Rapid Traverse (X, Y, Z): 2,362 inches per minute (60 m/min)
Rapid Traverse (B-Axis): 45,000 deg/min (125 RPM)
Positioning Accuracy: ±0.000079" (±0.002 mm) full stroke
Repeatability: ±0.000039" (±0.001 mm)
Physical & Electrical Requirements
Power Capacity: 50 kVA, 200V AC, 3-Phase
Machine Dimensions (W x D): 120.8" x 160.0" (3,068 x 4,065 mm)
Machine Height: 107.8 inches (2,739 mm)Machine Weight: 21,560 lbs (9,800 kg)
CNC Control & Features
Control Unit: Kitamura Arumatik-Mi CNC control system
