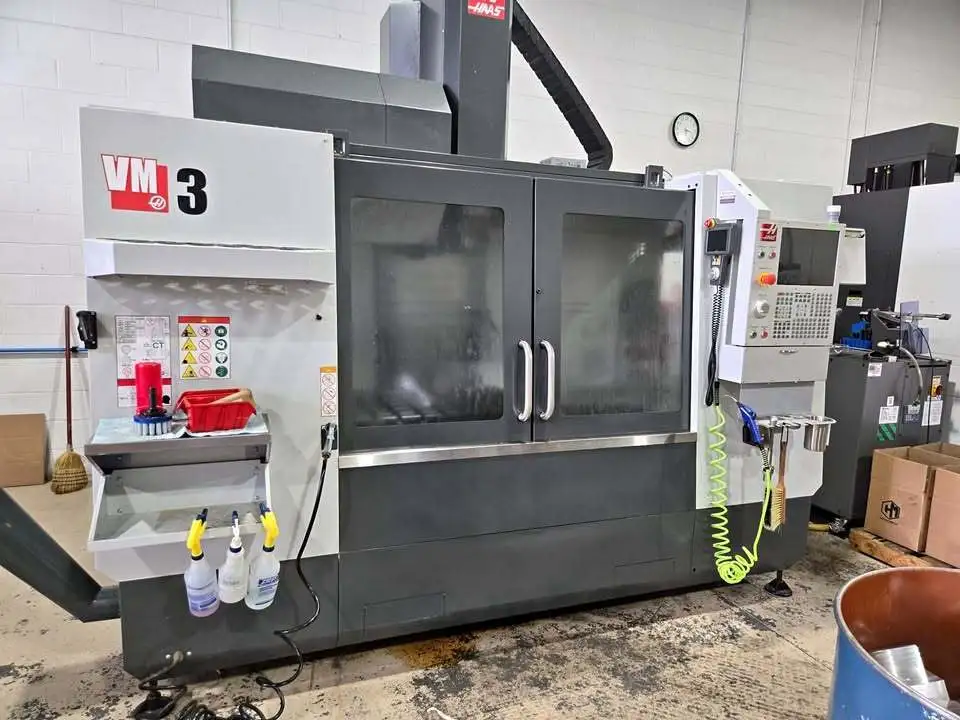

Haas VM-3 Vertical Machining Center (2022)
Have one to sell?
ConditionUsed
1 available
Haas VM-3 Vertical Machining Center (2022)
Haas VM-3 Vertical Machining Center (2022)
Travels & Work Area
X-Axis Travel: 40 in (1,016 mm)
Y-Axis Travel: 26 in (660 mm)
Z-Axis Travel: 25 in (635 mm)

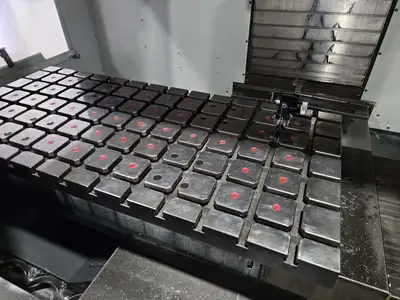

Table Size: 54 in x 24 in (1,372 mm x 610 mm)
Table Weight Capacity: 4,000 lb (1,814 kg)
SpindleMax Speed: 12,000 RPM
Max Power: 30 hp (22.4 kW)
Spindle Taper: 40
Drive System: Inline Direct-Drive
Feedrates
Max Cutting Feedrate: 500 ipm (12.7 m/min)
X/Y/Z Rapid Traverse: 710 ipm (18.0 m/min)
Tool ChangerType: Side-Mount Tool Changer (SMTC)
Capacity: 30+1 tools
Max Tool Diameter: 2.5 in (64 mm)Max Tool Weight: 12 lb (5.4 kg)
12,000-rpm Spindle
30+1 Side-Mount Tool Changer
4th-Axis Drive and Wiring
Wireless Intuitive Probing System
Auxiliary Coolant Filter
Chip Tray Filter Kit
Through-Spindle Coolant, 300 psi (21 bar)
Automatic Air Gun
Programmable Coolant Nozzle
Window Air Blast
55-Gallon Coolant Tank
Chip Auger
Standard Low-Volt Transformer
Standard Program Memory, 1 GB
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop
High-Speed Machining
Media Display M-Code; M130
Large Remote Jog Handle with Touchscreen Display
Rigid Tapping
Safe Run
WiFi Connection for the Haas Control
Table Auxiliary Air Supply
Haas Control Touch Screen
6600 Running hours. Machine is in good shape, no known issues. Has been converted to oil from grease. Under power for inspection.
