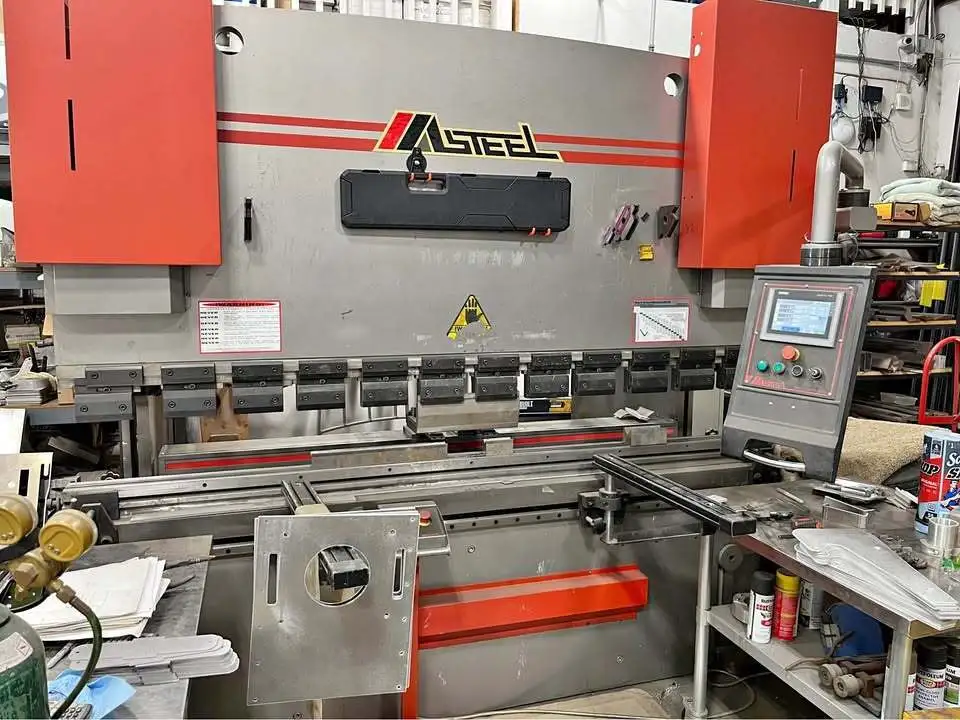

Masteel MBHSA-08070 70 Ton x 8' Hydraulic Press Brake (2017)

Masteel MBHSA-08070 Hydraulic Press Brake (2017)

Capacity & Dimensions
Maximum Capacity: 70 Tons
Overall Bed Length: 8 feet (96 inches)
Distance Between Housings: 76 inches
Backgauge Travel: 28 inches
Throat Depth: 12 inches (standard for this series range)
Overall Dimensions (L x W x H): 102" x 40" x 68"
Machine Weight: 8,200 lbs
Ram & Stroke Specs
Length of Ram Stroke: 8 inches
Maximum Open Height: 17.5 inches
Operating Speeds
Fast Approach Speed: 275 Inches Per Minute (IPM)
Pressing Speed: 25 IPM
Fast Return Speed: 245 IPM
Motor & Tooling
Main Motor: 10 HP

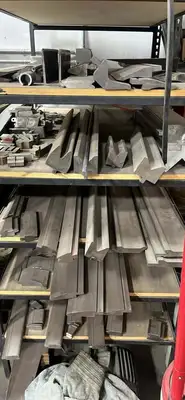

Punch Holder: Combination European / North American style
