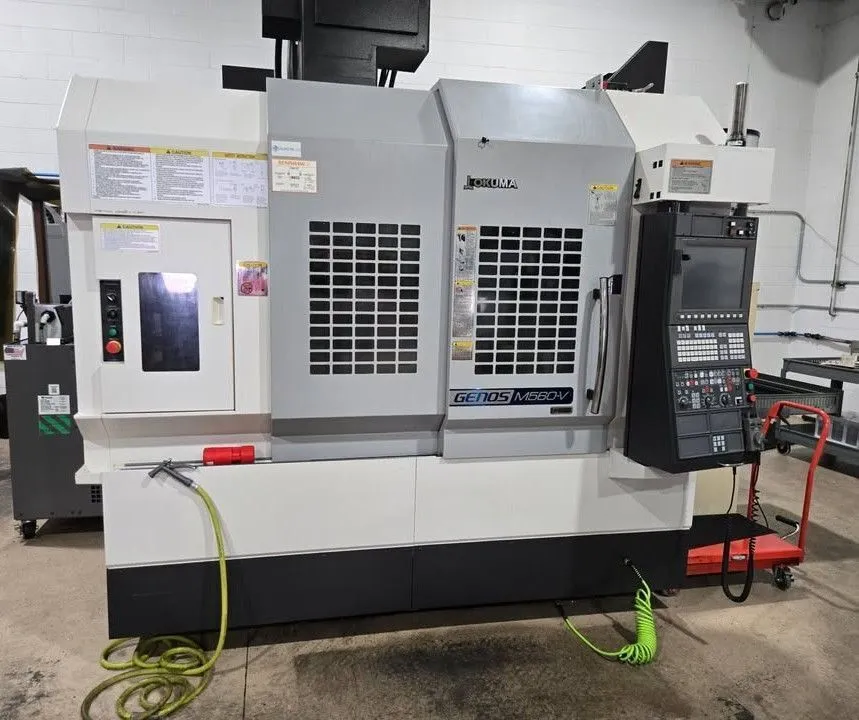

Okuma Genos M560-V CNC Vertical Machining Center (2017)
Have one to sell?
ConditionUsed
1 available
Okuma Genos M560-V CNC Vertical Machining Center (2017)
Okuma Genos M560-V CNC Vertical Machining Center (2017)
Specifications:
Travels:
X-Axis: 41.34"
Y-Axis: 22.05"
Z-Axis: 18.11"
Table Size: 51.18" x 22.05"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40 Big Plus
Spindle Motor: 30 HP
Max Load: 3300 Lbs
Tool Changer: 32 ATC
Max Tool Length: 18"
Max Tool Diameter: 3.54" - 4.92"
Rapid Traverse Rates: 1575 IPM (X/Y), 1260 IPM (Z)
Cutting Feedrate: 1260 IPM
Electrics: 37 kVA, 220V/3Ph

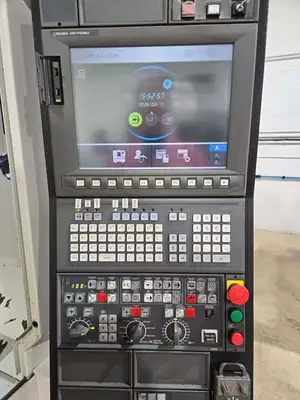

Okuma OSP-P300M CNC Control
Renishaw OMP400 Wireless Part Probe
Renishaw Tool Setter
Renishaw Inspection/Probing Software

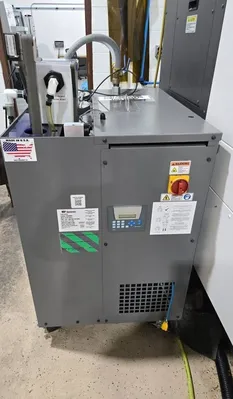

MP Systems AT-RF High Pressure Coolant System
1,000 PSI Through-Spindle Coolant
LNS Chip Conveyor
Royal FX575 Mist Collector
Okuma Genos M560-V CNC Vertical Machining Center (2017)
Imperial
| X Travel | 41.34" |
| Y Travel | 22.05" |
| Z Travel | 18.11" |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 32 |
| Taper | #40 |
| Table-W | 22.05" |
| Table-L | 51.18" |
| # Axis | 3 |
Okuma Genos M560-V CNC Vertical Machining Center (2017)
Specifications:
Travels:
X-Axis: 41.34"
Y-Axis: 22.05"
Z-Axis: 18.11"
Table Size: 51.18" x 22.05"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40 Big Plus
Spindle Motor: 30 HP
Max Load: 3300 Lbs
Tool Changer: 32 ATC
Max Tool Length: 18"
Max Tool Diameter: 3.54" - 4.92"
Rapid Traverse Rates: 1575 IPM (X/Y), 1260 IPM (Z)
Cutting Feedrate: 1260 IPM
Electrics: 37 kVA, 220V/3Ph
Okuma OSP-P300M CNC Control
Renishaw OMP400 Wireless Part Probe
Renishaw Tool Setter
Renishaw Inspection/Probing Software
MP Systems AT-RF High Pressure Coolant System
1,000 PSI Through-Spindle Coolant
LNS Chip Conveyor
Royal FX575 Mist Collector
