Hurco TMX8MYSI Live Tool Twin Spindle CNC Lathe (2023)
Have one to sell?
ConditionUsed
1 available

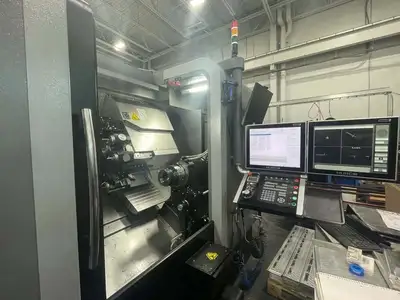

Hurco TMX8MYSI Live Tool Twin Spindle CNC Lathe (2023), The Hurco TMX8MYSi is a high-performance, heavy-duty slant-bed CNC turn-mill center designed for complex, multi-axis machining in a single setup. It integrates a main spindle, full C-axis live tooling, Y-axis off-center capability, and an independent sub-spindle for complete part processing.
Hurco TMX8MYSI Live Tool Twin Spindle CNC Lathe (2023)
Capacity & Work Envelope
Chuck Size (Main Spindle): 8 inches (203 mm)
Max Swing Over Bed: 20.0" to 22.0" (508 mm – 558 mm)
Max Turning Diameter: 10.8" to 13.2" (277 mm – 336 mm)
Max Turning Length: 20.7" to 22.0" (527 mm – 558 mm)
Max Bar Capacity: 2.5" to 2.54" (64.5 mm – 65 mm)
Distance Between Centers: 29.68" (754 mm)
Main Spindle
Max Spindle Speed: 4,500 RPM
Spindle Power: 25 kW to 27.8 kW (33.5 HP – 37.3 HP)
Spindle Torque: 239 Nm @ 1,000 RPM
Spindle Nose: A2-6Sub-Spindle (Counter-Spindle)
Sub-Spindle Chuck Size: 6 inches
Max Spindle Speed: 6,000 RPM
Spindle Power: 15 kW (20 HP)Sub-Spindle Bar Capacity: 1.77" (45 mm)

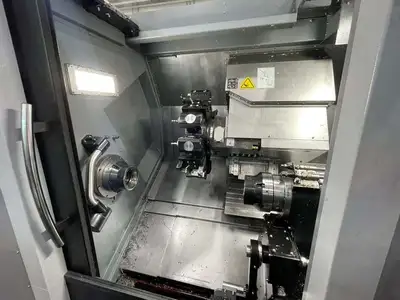

Turret & Live Tooling
Tool Positions: 12-station duplomatic turret (all stations accept live tools)
Live Tooling Max Speed: 5,000 RPM
Live Tooling Motor Power: 6.4 kW to 8.4 kW (8.5 HP)
Live Tooling Max Torque: 27.6 Nm @ 2,190 RPM
Axis Travel & Feedrates
X-Axis Travel: 11.24" (285 mm)
Y-Axis Travel: ±2.17" (±55 mm / 110 mm total travel)
Z-Axis Travel: 22.05" (560 mm)W-Axis (Sub-Spindle)
Travel: 25.2" (640 mm)
Rapid Traverse (X / Y / Z / W): 24 / 12 / 30 / 30 m/min (945 IPM for X, 1,181 IPM for Z/W)
System & Physical Dimensions
CNC Control:

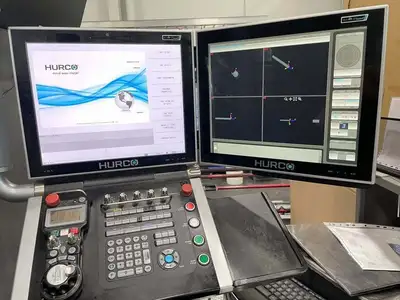

Hurco WinMax (Dual-Folding screen supporting conversational and NC/G-code programming merge)
Machine Weight: Approx. 15,432 lbs to 16,500 lbs (7,000 kg – 7,500 kg)
Standard Features: All-digital drives, absolute encoders on all linear axes, and standard chip conveyor capability

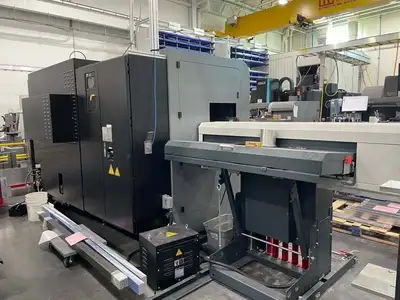

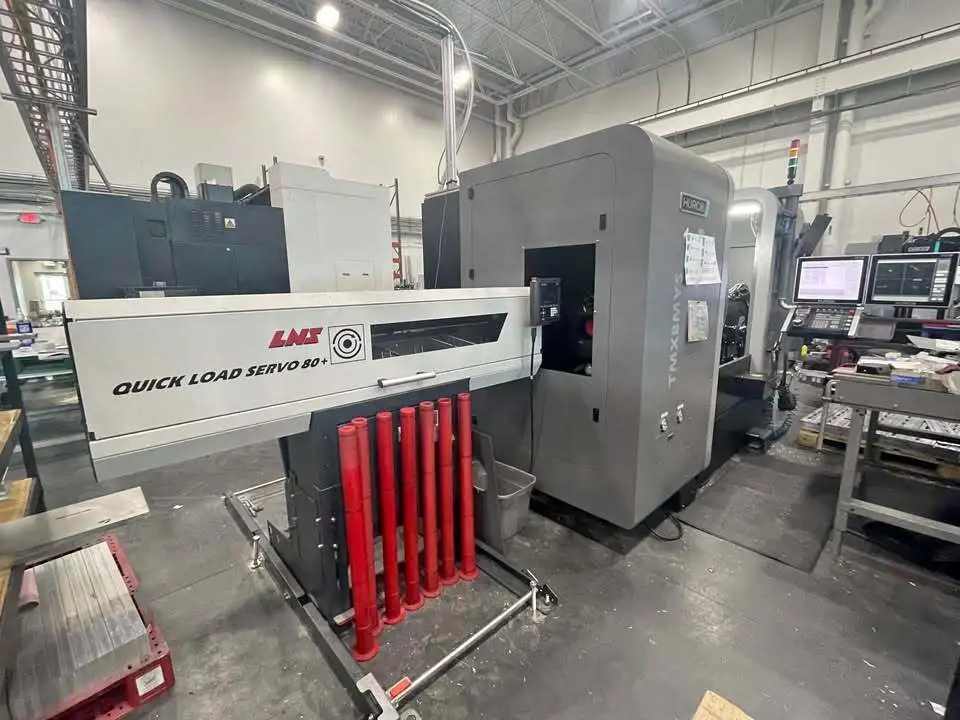

LNS Quick Load Servo 80 Barfeed, Live Tooling, Twin Spindle, Tool Presetter
- High-performance 5-axis CNC lathe with a maximum spindle speed of 4500 RPM, enabling precision machining for complex parts.
- Equipped with live tooling capability, allowing simultaneous turning and milling operations to enhance productivity and reduce cycle times.
- Dual-screen CNC control from Hurco provides intuitive programming and real-time monitoring, optimizing user experience and machine efficiency.
- Robust 37 HP main motor and 8.4 HP live tooling motor ensure consistent power delivery for demanding machining tasks.
- Compact design with a maximum swing over bed of 22 inches and a weight of 16,500 lbs, providing stability and versatility in various production environments.
