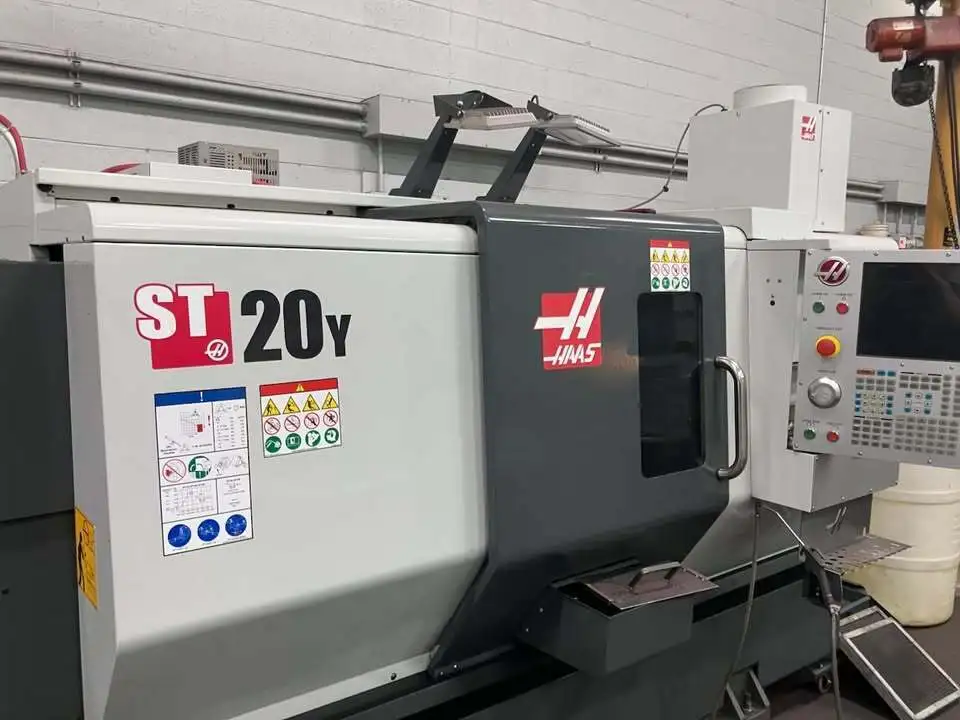

Haas ST20Y Live Tool CNC Lathe (2018)

Haas ST20Y Live Tool CNC Lathe (2018)

Chuck Size: 8.3"Max Part Swing: 21.0"
Max Cutting Diameter (BMT65 Turret): 11.75"
Max Cutting Length: 22.5"Bar Capacity: 2.50"
Bar Cap 2.0" bar capacity
Spindle Headstock
Spindle Motor Rating: 20.0 HP Vector Drive
Max Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Spindle Bore Ø: 3.50"
Max Spindle Torque: 150.0 ft-lbf @ 500 RPM
Axis Travels & FeedratesX-Axis Travel: 8.4"
Y-Axis Travel: ± 2.0" (4.0" total travel)
Z-Axis Travel: 22.5"X / Y Axis Rapids: 472 IPM
Z-Axis Rapids: 945 IPM

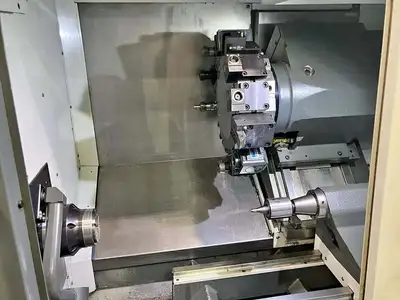

Turret & Live Tooling
Tool Stations: 12-Station Turret (Standard BOT or BMT65 hybrid variants)
C-Axis Live Tool Speed: 4,000 RPM or 6,000 RPM (depending on year and option pack)
Live Tooling Drive Power: 5.0 HP C-axis index rating
Shipping & Footprint Information
Coolant Tank Capacity: 55 Gallons
Approximate Machine Weight: 10,480 lbs
Domestic Pallet / Shipping Footprint: 143" x 90" x 92"Power Requirement: 220V / 3 Phase
