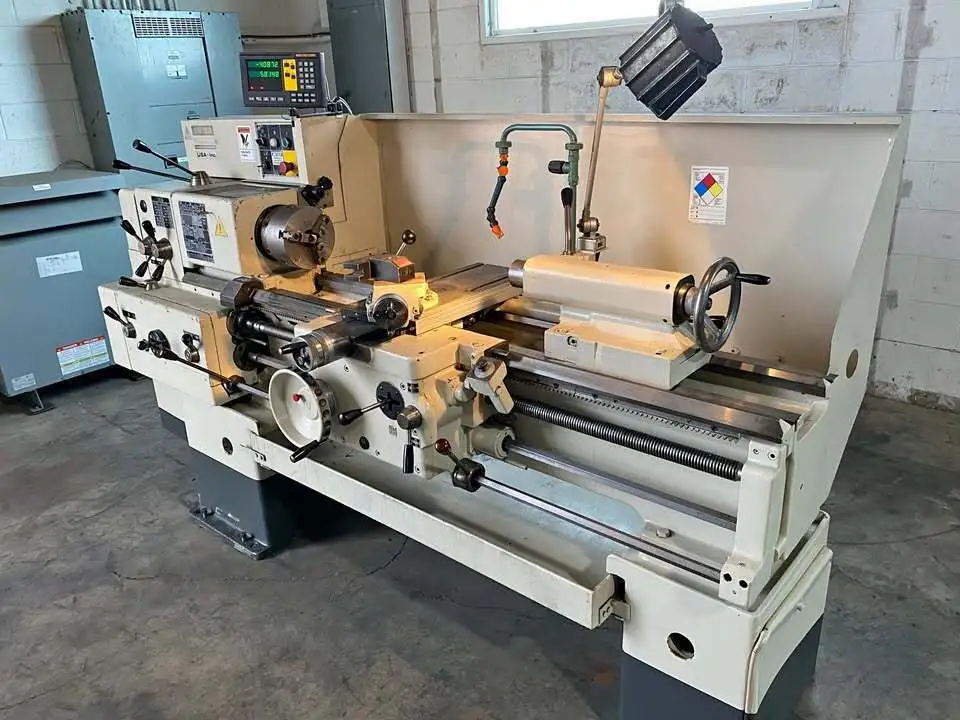

Tos Trencin SN 32 13" x 40" Heavy Duty Engine Lathe (1995)

Tos Trencin SN 32 13" x 40" Heavy Duty Engine Lathe (1995)

Swing Over Bed: 13" (330 mm)
Swing Over Cross Slide: 6.5" (168 mm)
Swing In Bed Gap: 20.5" (520 mm)
Distance Between Centers (DBC): 40" (1000 mm)
Bed Width: 13.4" (340 mm)

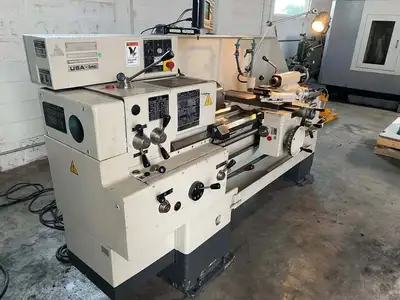

Spindle Headstock
Spindle Bore: 2.04" (52 mm)Spindle Nose: Camlock D1-6 (or STN ISO 702/III-B6)
Internal Spindle Taper: Morse Taper No. 6 (MT6)
Spindle Speed Range: 14 to 2,500 RPM
Feeds & Threading
Longitudinal Feed Range: 0.025 to 3.2 mm/rev
Cross Slide Travel: 9.84" (250 mm)Top Tool Slide Travel: 5.51" (140 mm)
Maximum Tool Shank Size: 0.78" x 0.78" (20 x 20 mm)
Tailstock
Tailstock Quill Taper: Morse Taper No. 5 (MT5)
Tailstock Quill Stroke: 7.08" (180 mm)
Tailstock Quill Diameter: 7.08" (180 mm)
Power & Dimensions (40" / 1000mm Model)
Main Motor Power: 5.36 HP (4.0 kW)
Physical Dimensions: Approx. 102” L x 40” W x 58'' H (2.6m x 1.0m x 1.5m)
Machine Weight: Approx. 3,500 lbs to 4,190 lbs (1,500 kg to 1,900 kg depending on bed length and accessories)
