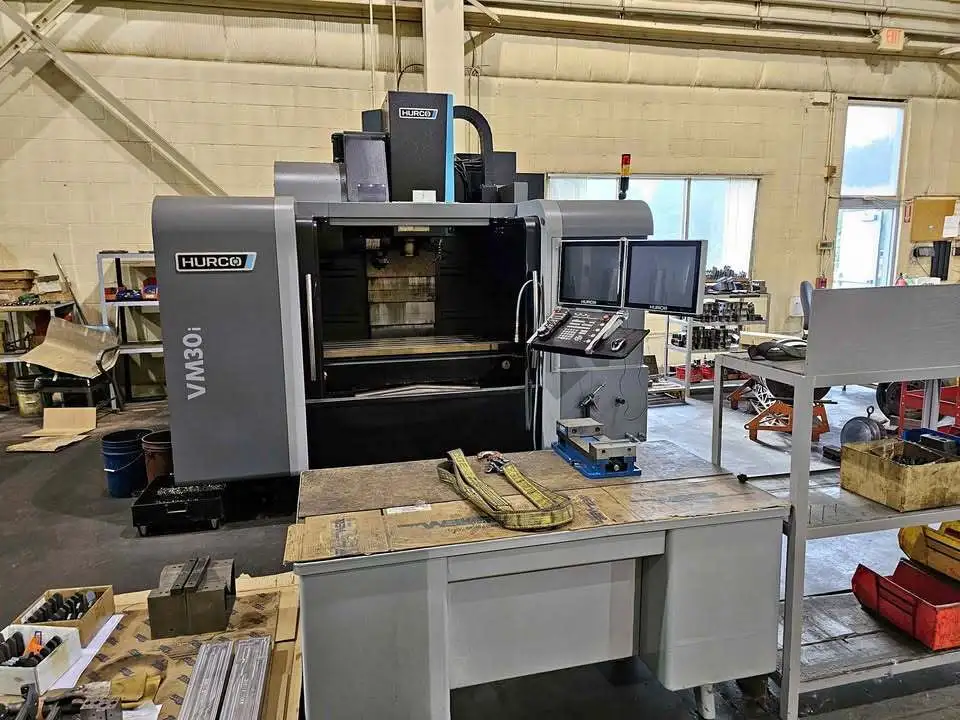

Hurco VM30I Vertical Machining Center (2017)
Have one to sell?
ConditionUsed
1 available
Hurco VM30I Vertical Machining Center (2017)
Hurco VM30I Vertical Machining Center (2017)
Travel and Capacity
X-Axis Travel: 50 inches (1,270 mm)
Y-Axis Travel: 20 inches (508 mm)
Z-Axis Travel: 20 inches (508 mm)
Table Size: 52 x 20 inches (1,321 x 508 mm)
Max Table Weight: 3,970 lbs (1,800 kg)
Spindle Specifications
Max Speed: 12,000 RPM
Spindle Power (Peak): 20 HP (15 kW)
Spindle Torque: 75 ft-lbs (102 Nm) at 1,450 RPM
Spindle Taper: CAT 40 (or BT 40 compatible)
Tool Changer
Tool Capacity: 24 stations
Tool Type: 40 Taper
Max Tool Diameter: 3.15 inches (80 mm)
Max Tool Length: 9.8 inches (250 mm)
Max Tool Weight: 15.4 lbs (7 kg)
Feedrates and Dimensions
Rapid Traverse (X/Y/Z): 1,102 in/min (28 m/min)
Machine Weight: Approx. 9,339 lbs (4,250–4,320 kg)
Control System: Hurco WinMax CNC Dual Folding Screen
Hurco Dual Folding Screen Control
Mill Machine Ultipockets
Mill Machine Inserts Pockets
Mill Machine Ramp Entry
Mill MAchine NCPP
Mill Machine DFX
Mill Machine MAX Classic ADV
Mill Machine 3D Mold
Mill Machine Swept Surface
Mill Machine Tool & Material Library
Mill Machine Ultimotion
Mill Machine Maxui Option
Mill Machine ISNC
Mill Machine SelectSurface Finish Quality
Mill Machine Converasational Merge
Mill Machine Rigid Tap
WinMAX Ultipockets
KIT ITX ASSY Chip Removal
WinMax Swept Surface Option
Hurco VM30I Vertical Machining Center (2017)
Imperial
| size | 50" x 20" x 20" |
| X Travel | 50" |
| Y Travel | 20" |
| Z Travel | 20" |
| Power | 20 hp |
| RPM | 12,000 RPM |
| # ATC | 20 |
| Taper | 40 |
| Table-W | 20" |
| Table-L | 52" |
| # Axis | 3 |
Hurco VM30I Vertical Machining Center (2017)
Travel and Capacity
X-Axis Travel: 50 inches (1,270 mm)
Y-Axis Travel: 20 inches (508 mm)
Z-Axis Travel: 20 inches (508 mm)
Table Size: 52 x 20 inches (1,321 x 508 mm)
Max Table Weight: 3,970 lbs (1,800 kg)
Spindle Specifications
Max Speed: 12,000 RPM
Spindle Power (Peak): 20 HP (15 kW)
Spindle Torque: 75 ft-lbs (102 Nm) at 1,450 RPM
Spindle Taper: CAT 40 (or BT 40 compatible)
Tool Changer
Tool Capacity: 24 stations
Tool Type: 40 Taper
Max Tool Diameter: 3.15 inches (80 mm)
Max Tool Length: 9.8 inches (250 mm)
Max Tool Weight: 15.4 lbs (7 kg)
Feedrates and Dimensions
Rapid Traverse (X/Y/Z): 1,102 in/min (28 m/min)
Machine Weight: Approx. 9,339 lbs (4,250–4,320 kg)
Control System: Hurco WinMax CNC Dual Folding Screen
Hurco Dual Folding Screen Control
Mill Machine Ultipockets
Mill Machine Inserts Pockets
Mill Machine Ramp Entry
Mill MAchine NCPP
Mill Machine DFX
Mill Machine MAX Classic ADV
Mill Machine 3D Mold
Mill Machine Swept Surface
Mill Machine Tool & Material Library
Mill Machine Ultimotion
Mill Machine Maxui Option
Mill Machine ISNC
Mill Machine SelectSurface Finish Quality
Mill Machine Converasational Merge
Mill Machine Rigid Tap
WinMAX Ultipockets
KIT ITX ASSY Chip Removal
WinMax Swept Surface Option
