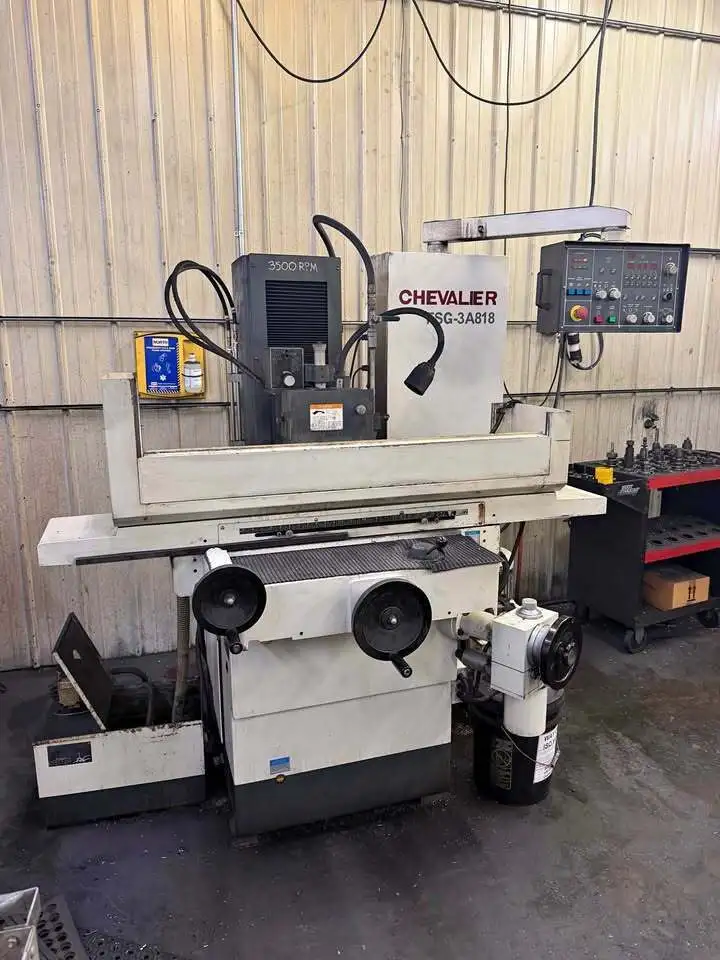

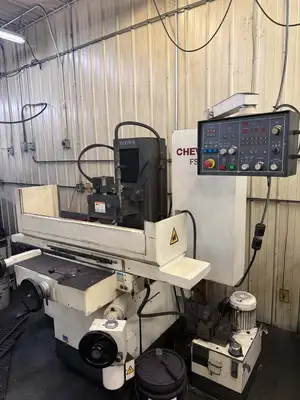

Chevalier FSG-3A818 Hydraulic Horizontal Surface Grinder (2014)

Chevalier FSG-3A818 Hydraulic Horizontal Surface Grinder (2014)

Capacity & Travel

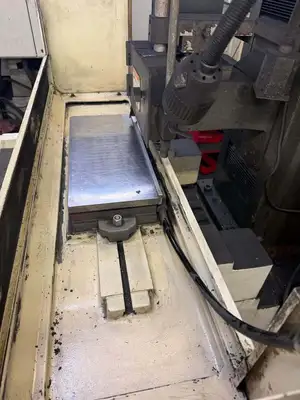

Table Size: 8" x 18" (203 mm x 457 mm)
Max Grinding Length / Width: 18" / 8"
Max Distance from Table to Spindle Center: 17" to 18"
Max Longitudinal Table Travel (Hydraulic): 19-3/4" to 20"
Max Crossfeed Travel: 9-1/2"
Speeds & Feeds
Longitudinal Table Speed: Infinitely variable, 16 to 82 FPM (or up to 984 IPM)
Crossfeed (Intermittent): 0.04" to 0.4" per stroke
Spindle Speed: 3,450 RPM (60Hz) / 2,850 RPM
Motors & Power
Spindle Drive Motor: 2 HP (3-phase)
Hydraulic Pump Motor: 1 HP
Elevation / Downfeed Motor: 0.25 HP
Crossfeed Motor: 0.05 HP
Electrical Requirement: 230V / 3-phase
Grinding Wheel & Physical Specs
Standard Wheel Size: 8" diameter x 1/2" width x 1-1/4" hole (203 mm x 12.7 mm x 31.75 mm)
Approximate Net Weight: 4,250 lbs
