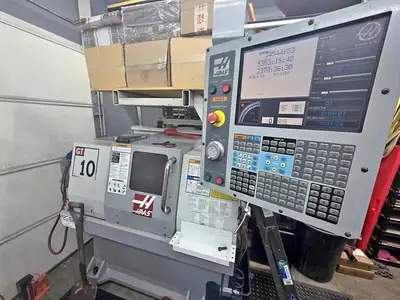

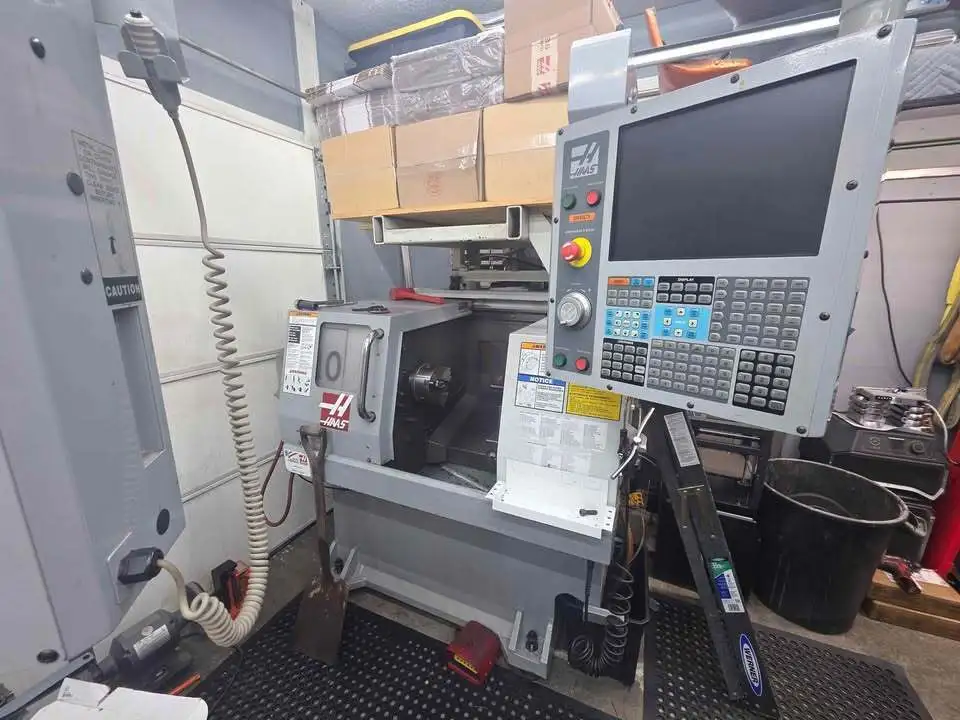

Haas GT-10 CNC Lathe (2006)

Haas GT-10 CNC Lathe (2006)

Capacity & Cutting Dimensions
Max Swing / Swing Over Bed: 16.25 in (413 mm)
Max Turning Diameter: 10 in (254 mm)
Max Machining Length: 8 in to 10 in (203–254 mm)
Bar Capacity: 1.38 in (35 mm)

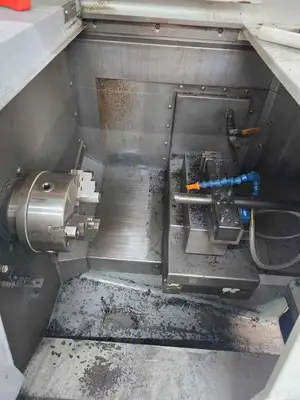

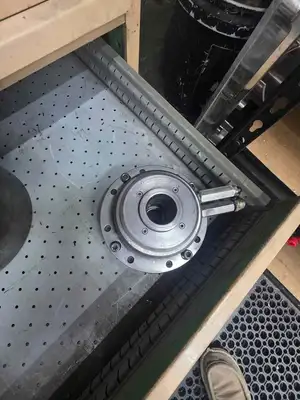

Chuck Size: 5 in or 6 in standard (collet/chucker setup)
Spindle Specifications
Max Speed: 3,000 RPM (Optional higher RPM packages existed on select builds)
Spindle Motor Power: 7.5 hp (5.6 kW) vector dual-drive system
Spindle Bore: 1.38 in
Spindle Nose: A2-5
Travel & Feedrates
X-Axis Travel: 6 in (152 mm)
Z-Axis Travel: 8 in to 12 in (203–305 mm) depending on configuration
Rapid Traverse Rate (X/Z): 710 ipm (18 m/min)Physical
220 power or 3 phase power. So it will run on your standard house power or industrial 3 phase
5000 cycle hours
2300 spindle hours
Approximate Weight: 3,080 lbs (1,400 kg)
Machine Dimensions (L x W x H): 82 in x 85 in x 75 in
