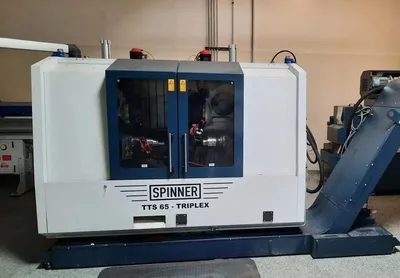

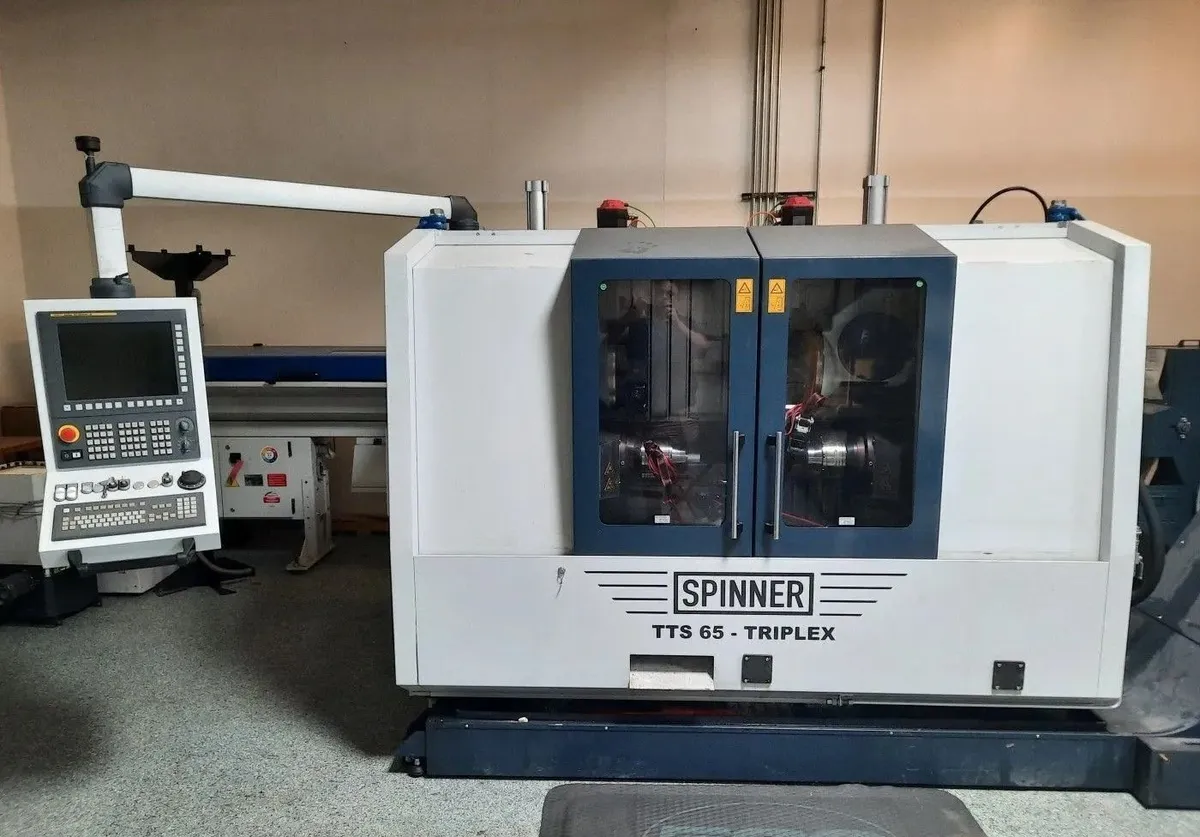

Spinner TTS-65 Triplex 8 Axis CNC Lathe (2022)

Spinner TTS-65 Triplex 8 Axis Twin Spindle Twin Turret Live Tool CNC Lathe (2022)

Machine/Spec TTS-65 Triplex
Working Area
X1/X3 Axis 7.1
X2 Axis 7.1
Y1/Y3 Axis 1.77/-1.77
Z1/Z3 Axis 27.7
Z2 Axis 24.4
Rapid Travers X 1181 IPM
Rapid Travers Y 1181 IPM
Rapid Travers Z 1181 IPM
Spindle 1 RPM 5000 RPM
Spindle Nose A6/DIN
Spindle Bore 2.56
Chuck Diameter 8.3
Performance 32.2 hp
Torque 111.4 ft/lb
Spindle 2 RPM 7000 RPM
Spindle Nose 110mm
Spindle Bore 1.65
Chuck Diameter 5.5
Performance 29.5 hp
Torque 94.4 ft/lb
Number of Tool Stations 3 X 12
Driven Tool Stations All
Tool Holder BMT45 (opt VDI25)
Max Speed Driven Toola 8000 RPM
Performance 5.76 hp
Torque 10 ft/lb
Machine Length 113.4
Machine Width 83.9
Machine Height 78.3
Machine Weight 17416.5 lb
