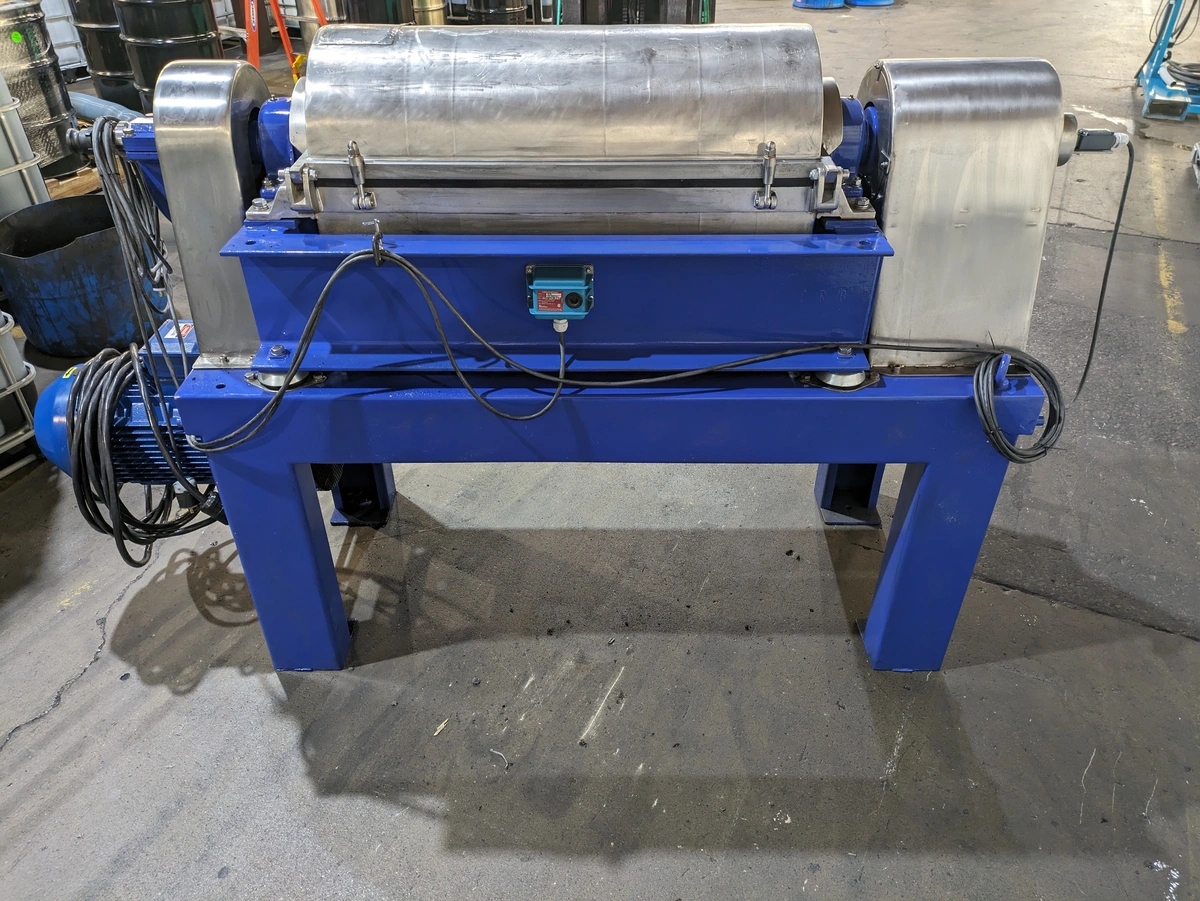

Alfa Laval NX314 Centrifuge (2018)

Alfa Laval NX314 Centrifuge (2018)
Key Specifications

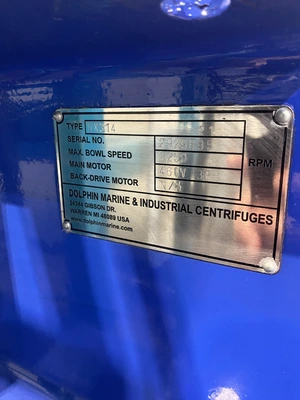

Max Bowl Speed: 3,250 RPM
Max Hydraulic Capacity: 20 m³/hr (~88 GPM)
Auger Differential Speed: 25 RPM

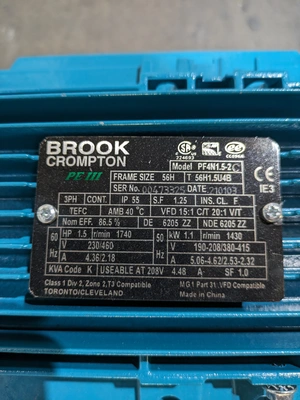

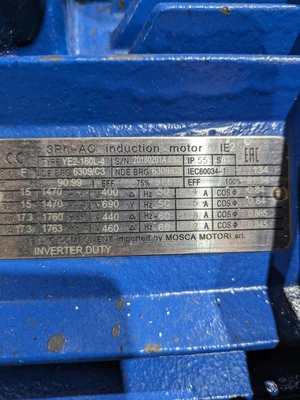

Main Motor: 15 HP, 230 VAC / 60 Hz
Planetary Gearbox: 2.5 kNM with GS Torque Limiter Coupling

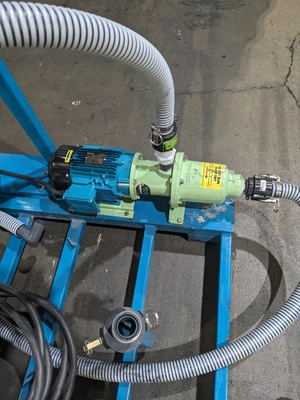

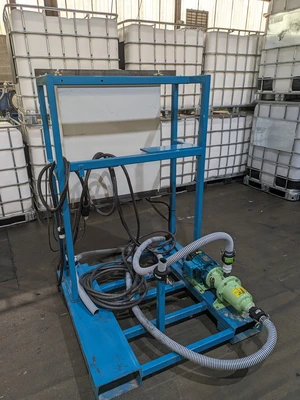

Feed Pump: 25 GPM Progressive Cavity
Nitrile Stator / Stainless Rotor / Carbon Steel Housing

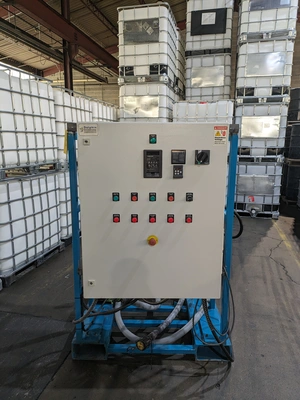

VFD-controlled via LCP
Material Contact Surfaces:

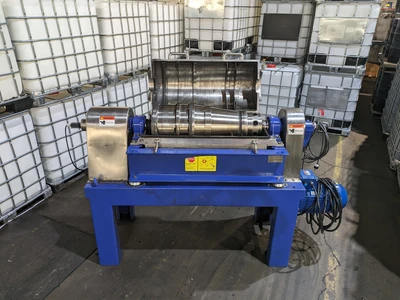

Bowl: 14" 316 Duplex Stainless Steel
Vessel: 316 Stainless Steel
Conveyor Flights: Tungsten Carbide Hard Surfaced for erosion resistance
Frame: Carbon Steel, unpainted
Discharge: Gravity for both separated fluid and sludge

Specifications: Standard Metric
Manufacturer Name Alfa Laval Alfa Laval
Year: 2018 2018
Serial Number: 2929895 2929895
Capacity Size: 20 CU M/HR 20 CU M/HR
Model: NX314 NX314
Capacity Speed: 25 GPM 25 GPM
Bowl Orientation: HORIZONTAL HORIZONTAL
Recommended Packaging Form: CUSTOM PALLET CUSTOM PALLET

Dimensions: Standard Metric
Overall: 163 x 73 x 123 IN – 3300 LBS 4140.20 x 1854.20 x 3124.20 mm – 1496.88 kg
