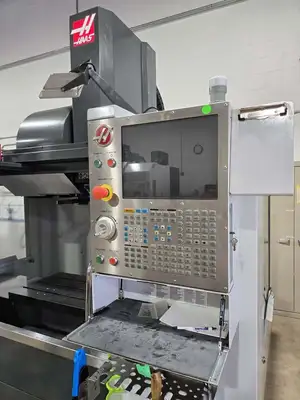

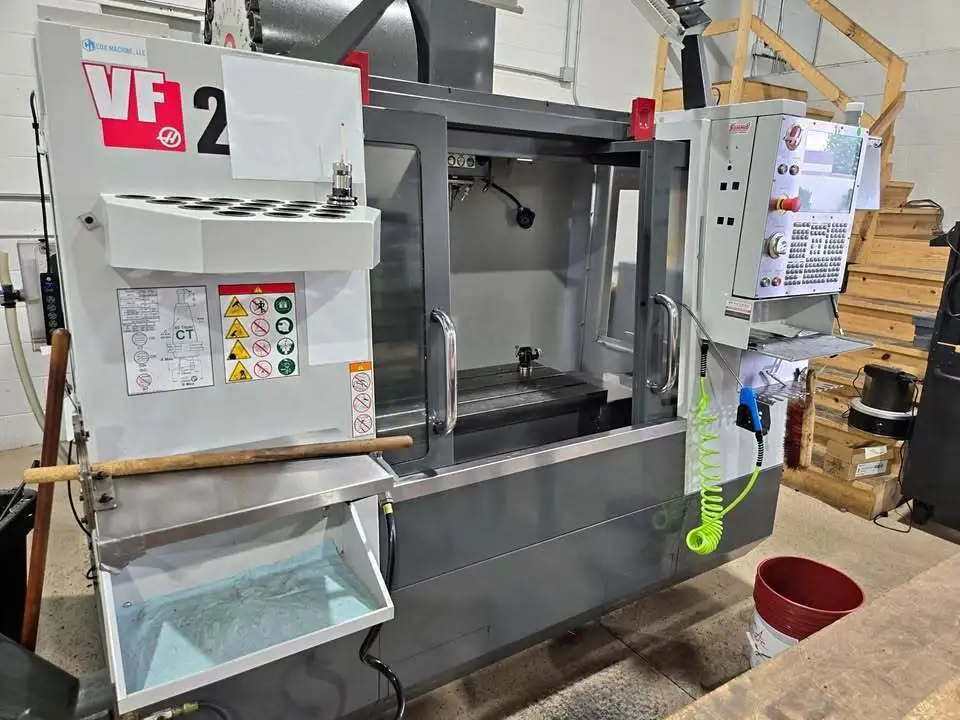

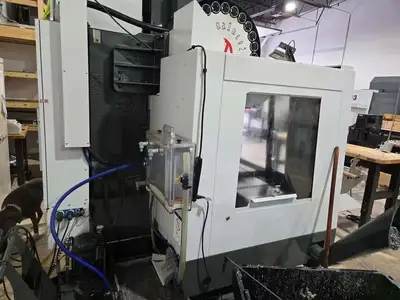

Haas Model VF2YT Vertical Machining Center (2016)

Haas Model VF2YT Vertical Machining Center
X Axis: 30"
Y Axis: 20"
Z Axis: 20 "
Spindle Nose to Table (\ max): 24"
Spindle Nose to Table (\ min): 4 "
Table: 36" x 18"
T-Slot Width: 5/8"
T-Slot Center Distance: 4.92"
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 3000 lb
Max Rating: 30 hp 22.4 kW
Max Speed: 8100 rpm
Max Torque: 90 ft-lb @ 2000 rpm 122 Nm @ 2000 rpm
Drive System: Inline Direct-Drive Inline Direct-Drive
Max Torque w/opt Gearbox: 250 ft-lb @ 450 rpm 339 Nm @ 450 rpm
Taper: 40
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled
Feedrates: S.A.E. METRIC
Rapids on X: 1000 in/min 25.4 m/min
Rapids on Y: 1000 in/min 25.4 m/min
Rapids on Z: 1000 in/min 25.4 m/min
Max Cutting: 650 in/min 16.5 m/min
AXIS MOTORS: S.A.E. METRIC
Max Thrust X: 2550 lb
Max Thrust Y: 2550 lb
Max Thrust Z: 4200 lb
Tool Changer: S.A.E.
Type: Carousel (SMTC Optional)
Tool Capacity: 40 Side
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 sec 4.2 sec
Chip-to-Chip (avg): 4.5 sec 4.5 sec
GENERAL: S.A.E. METRIC
Air Required: 4 scfm, 100 psi 113 L/min, 6.9 bar
