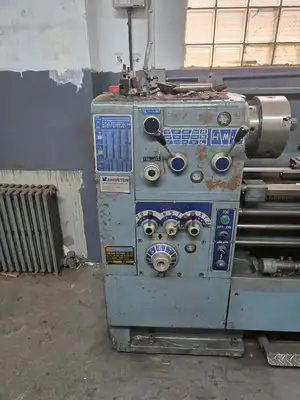

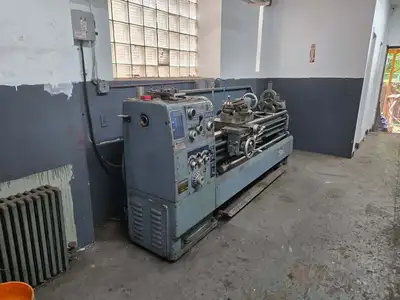

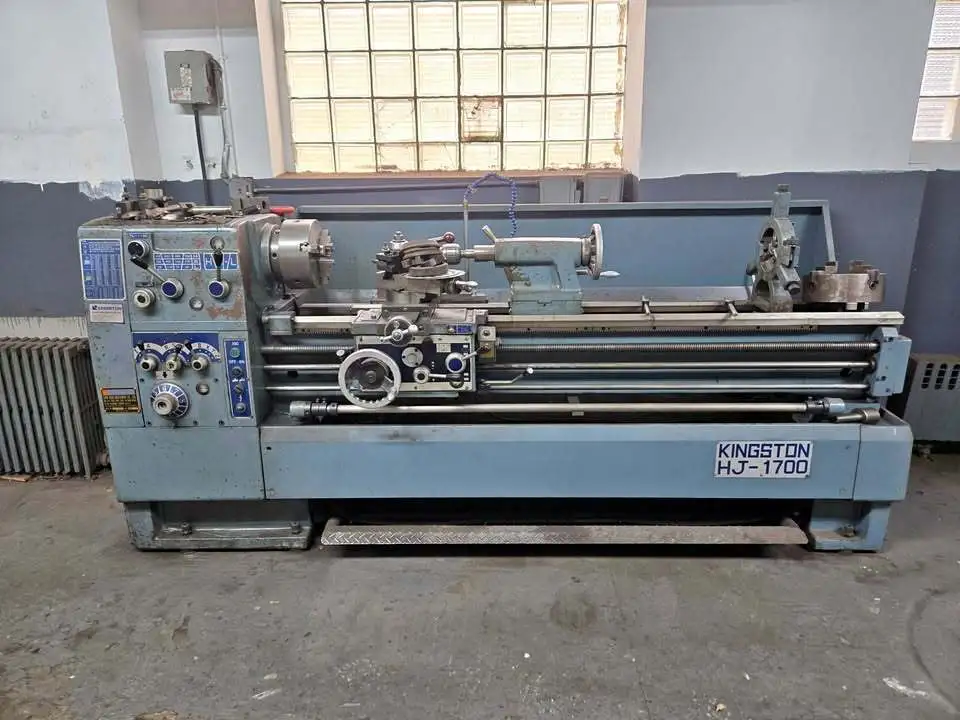

Kingston HJ-1700 Engine Lathe

Kingston HJ-1700 Engine Lathe

Swing Over Bed (In.) 17
Swing Over Cross Slide (In.) 10-9/16
Swing in Gap (In.) 24
Distance Between Centers (In.) 67
Width of Bed (In.) 11.75
Gap Width in Front of Face Plate (In.) 5-7/8
Height of Center from Leg Bottom (In.) 42-3/8
Spindle Through Bore (In.) 2-1/4
Taper of Spindle Bore and Center MT-6 | MT-4
Type of Spindle Nose D1-6
Number of Spindle Speeds 12
Range of Spindle Speed (RPM) 35 - 2,000
Number of Feed Changes 16
Range of Feeds per Revolution - Longitudinal (In.) .0012 - .039
Range of Feeds per Revolution - Cross (In.) .0004 - .0117
Diameter and Pitch of Leadscrew (Diameter | TPI)
1.38 | 4
Number of Inch Threads
44
Range of Inch Thread (TPI) 2 - 72
Number of Metric Threads 39
Range of Metric Thread (mm)
.2 - 14
Maximum Travel of Compound (In.) 5-7/8
Maximum Travel of Cross Slide (In.) 10.4
Tailstock Quill Travel (In.) 5-7/8
Tailstock Quill Diameter (In.) 2-3/8
Taper in Tailstock Quill MT-4
Main Motor (HP | KW)
7-1/2 | 5.59
230V/460V/3 Phase/60 Hz.,
Prewired 230V
Coolant Pump Motor (HP | W)
1/8 | 93.21
Machine Assembled Dimensions (L x W x H/In.) 111 x 41 x 47
Machine Floor Space Dimensions (L x W x H/In.) 120 x 41 x 47
Machine Weight (Lbs.) 3,960
Design and specifications are subject to change without notice.
