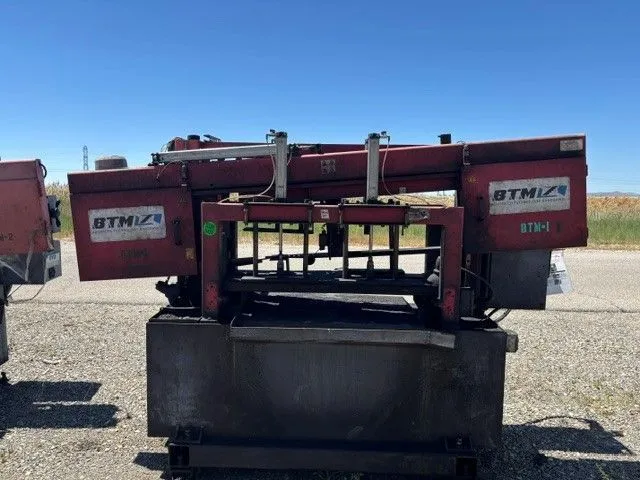

BTM 125 SA 34 11" x 49" Horizontal Band Saw (2013)

BTM 125 SA 34 Horizontal Band Saw (2013)

Cutting Capacity: 11" Height x 49" Width (280 mm x 1245 mm), optimized for wide plate and grating cutting.

Blade Dimensions: 260" Length x 1.25" Width x 0.043" Thickness (6610 mm x 34 mm x 1.1 mm).

Blade Motor Power: 2 HP to 3 HP (depending on the exact factory electronics package).

Blade Speed: Variable speed ranging from 22 to 140 Strokes Per Minute (SPM) or roughly 20–100 m/min.

Working Height: 36.6" (930 mm) from the floor.

Operation Type: Semiautomatic (SA), utilizing hydraulic downfeed and hydraulic clamping.

Key Performance Features

Misting Lubrication: Utilizes an advanced blade-misting lubrication system that keeps cuts exceptionally clean and minimizes post-fabrication cleaning time.

Laser Sighting: Equipped with a precision laser guide light for fast, accurate material alignment.

Stress-Relieved Framework:
BTM heat-treats and stress-relieves the structural steel frame after welding, which absorbs cutting vibrations and extends the operational life of the machine
