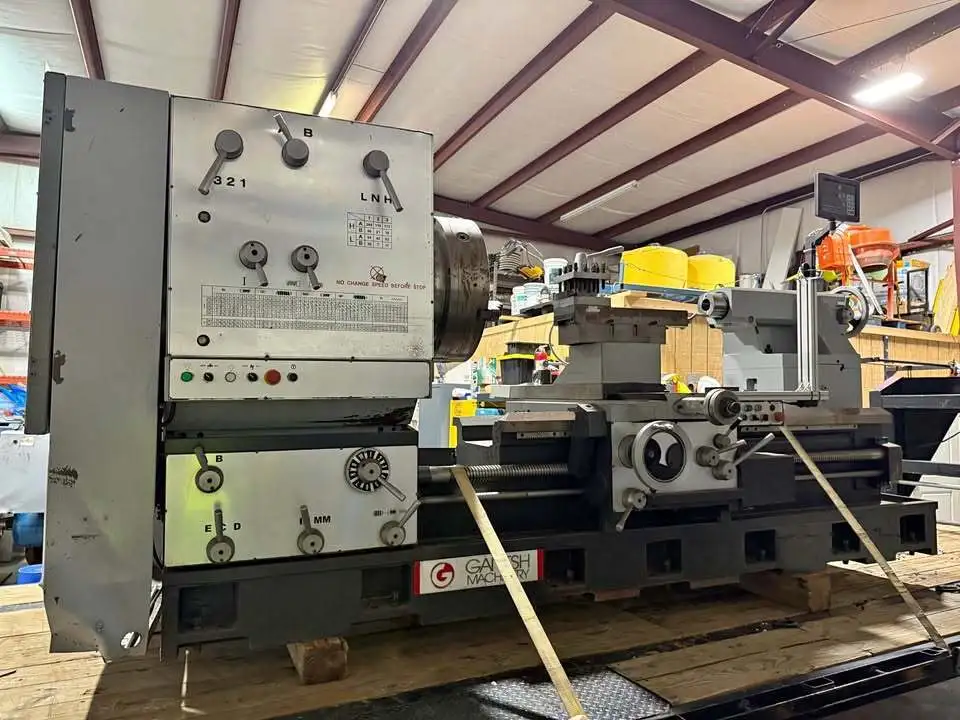

Ganesh GTD-4460 44" x 60" Engine Lathe (2018)

Ganesh GTD-4460 44" x 60" Engine Lathe (2018)

Capacity & Dimensions

Swing over Bed: 44 inches (1,120 mm)
Distance between Centers: 60 inches (1,500 mm)
Swing over Cross Slide: 27.95 inches (710 mm) )
Swing through Gap: 55.11 inches
Bed Width: 32 inches (810 mm) of Meehanite casting to absorb heavy vibration

Headstock & Spindle

Spindle Motor: 30-HP standard (40-HP optional configuration)Standard
Spindle Bore: 6 inches (152 mm) (Note: Heavy-duty oilfield variants can feature upgraded 9", 10", 12", or 15" optional big bores).
Spindle Nose: A2-11 standard (A2-15 or A2-20 options available for upgraded large-bore spindles)
Spindle Taper: MT-7
Spindle Speeds: 16-speed manual gear ranges delivering from 4 to 420 RPM
System Features

Bed Ways: Induction-hardened and ground bed ways coated with friction-reducing

Turcite-B.Feeds & Movement:

Built-in electric rapid traverse motor for effortless longitudinal and cross-positioning.
Standard Inclusions:
Equipped with a full back splashguard, heavy-duty tailstock, coolant pump system, and a Dorian quick-change tool post.
The total weight and footprint dimensions for rigging setup
Electrical requirements (voltage/phase)Available optional accessories like rear chuck mounts for oil-field work
