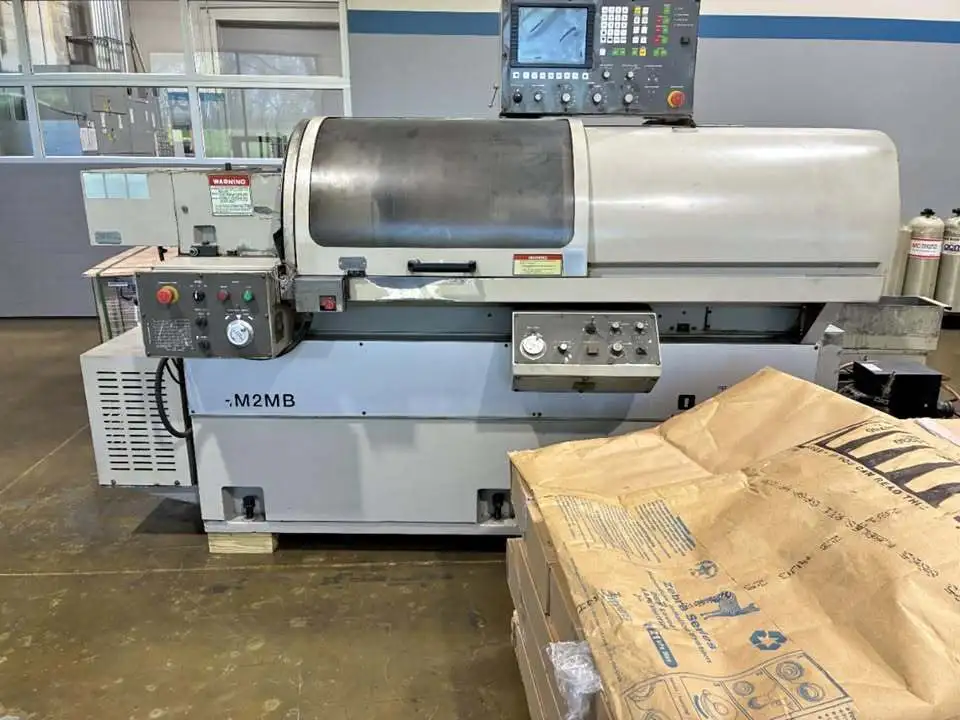

Okamoto IGM2MB CNC Internal Grinder

Okamoto IGM2MB CNC Internal Grinder

Capacity & Travel
Swing over table: 24.0 inches
Swing inside chuck cover: 14.0 inches
Internal grinding diameter range (ID): 0.24 to 8.0 inches
Maximum grinding stroke: 8.0 inches
Table maximum travel (Long travel): 20.0 inches
Maximum crossfeed travel (X-axis): 9.4 inches
WorkheadSpindle speed: 50 to 850 RPM
Swivel angle: -5° to +15°Workhead motor: 2.0 HP
Spindle & Motors
Grinding wheel spindle motor: 5.0 HP
Spindle speed: Up to 20,000 RPM (model and application dependent)
Control & Features

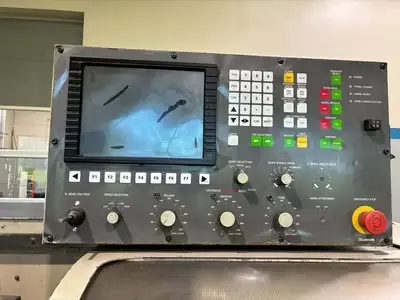

Controller: Programmable MDI control system with an 8.4-inch color LCD display
Program capacity: Storage for up to 36 programs
Table motion:
High-speed reciprocation via linear guides and ball screws (speeds up to 800 ipm)
Physical Dimensions & Weight
Floor space (L x W x H): 96" x 54" x 69"
Net weight: 6,160 lbs
