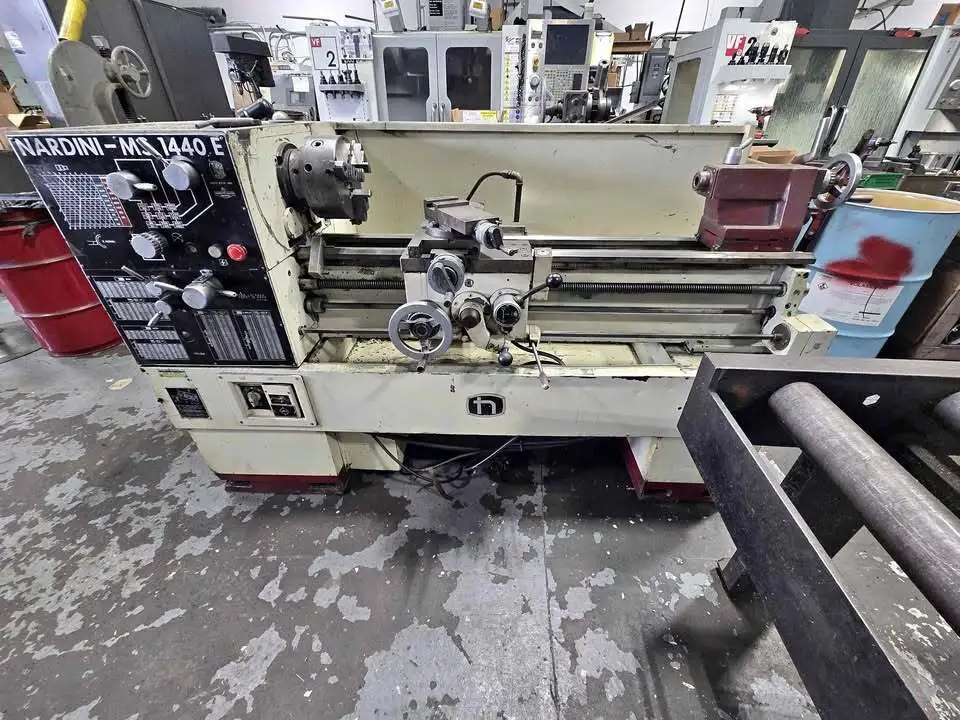

Nardini Mascote MS-1440E Engine Lathe

Nardini Mascote MS-1440E Engine Lathe

Swing Over Bed: 13-3/4 inches
Swing Over Cross Slide: 7-7/8 inches
Swing Through Removable Gap: 19-3/4 inches
Distance Between Centers: 40 inches (Note: Some variants feature 54-inch centers)
Headstock & Spindle
Spindle Bore: 1-5/8 inches (1.656")Spindle Nose: D1-5 Camlock
Spindle Speeds: 18 speeds ranging from 25 to 2,000 RPM (up to 2,500 RPM on select electrical configurations)
Spindle Taper: #3 Morse Taper (#3MT)Feeds & Threading

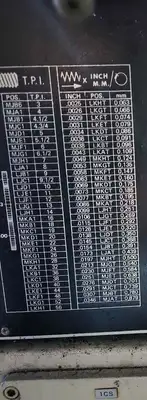

Threading Feeds: 192 total feed rates
Inch Threads: (33 to 48 changes) 3 to 56 T.P.I.
Metric Threads: (45 changes) 0.40 to 7 mm
Longitudinal Feeds: 0.0015 to 0.0552 I.P.R.
Tailstock
Tailstock Quill Travel: 5-1/8 inches
Tailstock Quill Diameter: 2 inches
Tailstock Center Taper: #3 Morse Taper (#3MT)
Motor & Physical Dimensions
Main Motor: 6 HP, 2-speed motor (typically wired for 220V or 440V, 3-Phase)
Machine Dimensions: Approximately 80” to 84” L x 36” W x 48” to 60” H
Machine Weight: Approximately 2,500 to 2,800 lb
