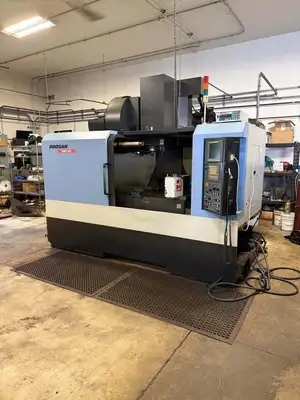

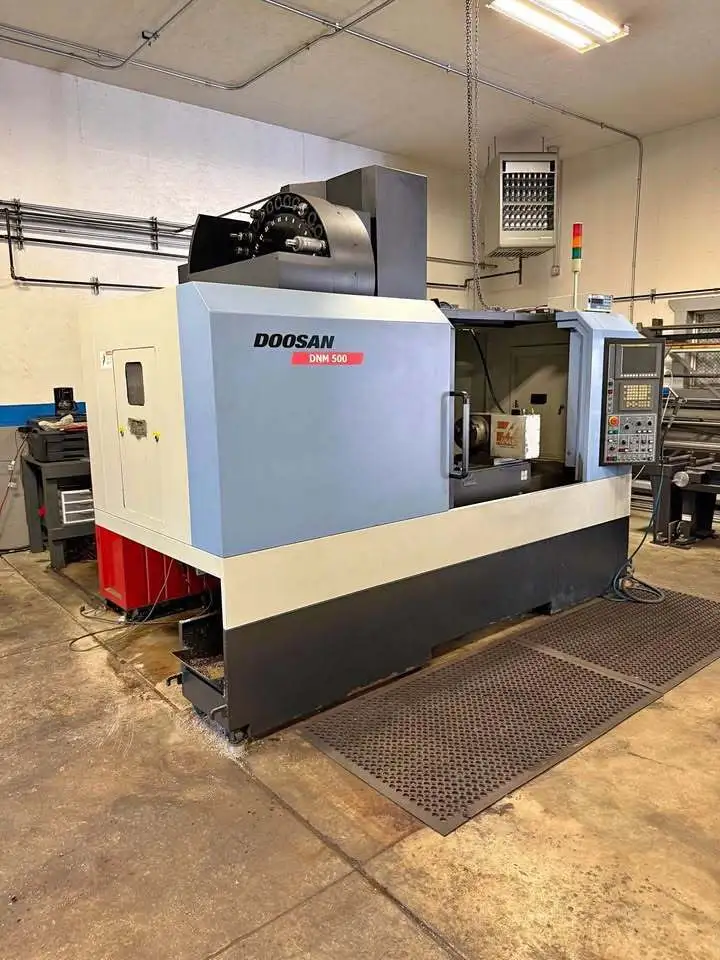

Doosan DNM500 Vertical Machining Center (2009)
Have one to sell?
ConditionUsed
1 available
Doosan DNM500 Vertical Machining Center (2009)
X-Axis: 40.2″
Y-Axis: 21.26"
Z-Axis: 20.08"
Table Size: 47.3″ x 21.3″
X Traverse Rate: 1,417 IPM
Y Traverse Rate: 1,417 IPM
Z Traverse Rate: 1,181 IPM
Spindle Speed: 8,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
ATC: 30
Fanuc i Series Control
Chip Conveyor
Wired for 4th - (Rotary Table Not Included In Sale)

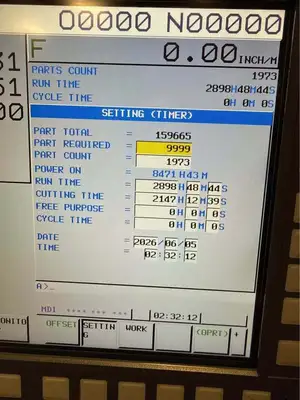

Hours -
Power On - 8471H 43M
Operating Time - 2898H 48M
Cutting Time - 2147H 12M
Imperial
| size | 40" x 21" x 20" |
| X Travel | 40.16" |
| Y Travel | 21.26" |
| Z Travel | 20.08" |
| Power | 20 kW |
| RPM | 8,000 RPM |
| # ATC | 30 |
| Taper | 40 |
| Table-W | 21.26" |
| Table-L | 47.24" |
| # Axis | 3 |
Doosan DNM500 Vertical Machining Center (2009)
X-Axis: 40.2″
Y-Axis: 21.26"
Z-Axis: 20.08"
Table Size: 47.3″ x 21.3″
X Traverse Rate: 1,417 IPM
Y Traverse Rate: 1,417 IPM
Z Traverse Rate: 1,181 IPM
Spindle Speed: 8,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
ATC: 30
Fanuc i Series Control
Chip Conveyor
Wired for 4th - (Rotary Table Not Included In Sale)
Hours -
Power On - 8471H 43M
Operating Time - 2898H 48M
Cutting Time - 2147H 12M
