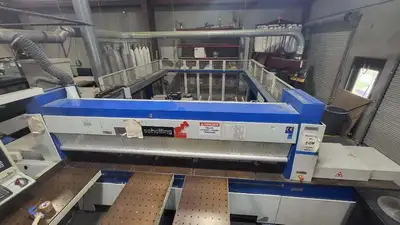

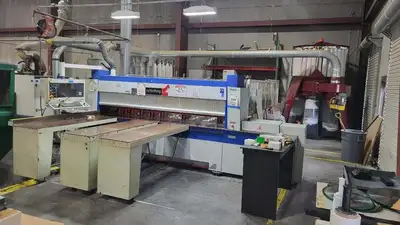

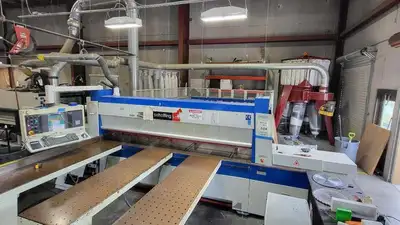

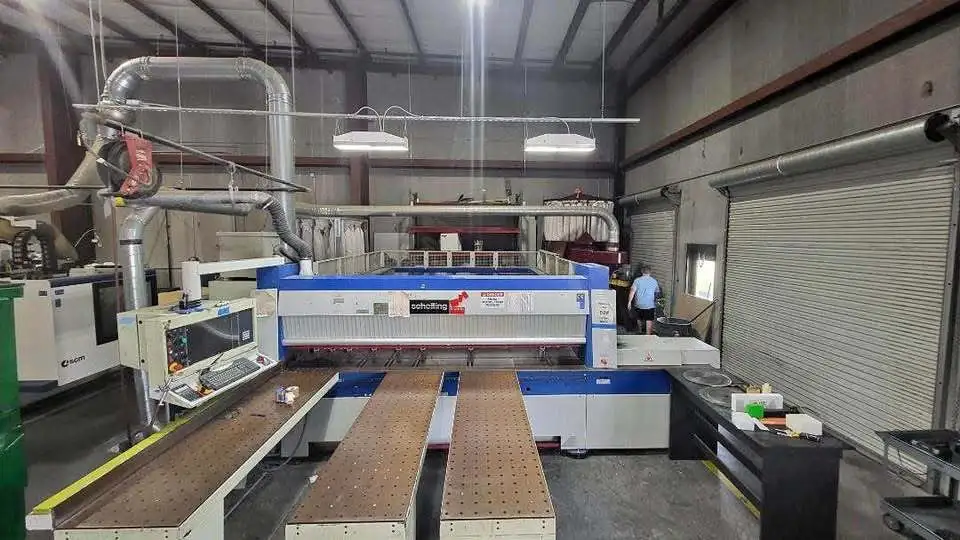

Schelling FM-H 330/310 Horizontal Panel Beam Saw

Schelling FM-H 330/310 Horizontal Panel Beam Saw

Blade Projection: 125 mm cutting height (145 mm blade)
Cutting Dimensions: ~3,100 mm (3.1 meters / 10 feet)
Capacity
Feed & Travel Speeds:
Variable forward speeds up to 80–120 m/min;
return speed up to 120 m/min
Main Motor Power: ~15 kW to 19 kW (20 HP+)
230V/460V 3 phase
Loading System: Rear-loading motorized lift table for automated stack feeding
Key Features
Heavy industrial structure designed for continuous multi-shift operation.
Computer-controlled optimization via PC front-end controller (such as Schelling MCS systems).Air float tables on the front to protect panels and ease manual handling.
Pneumatic material aligners for accurate positioning before the cut line
