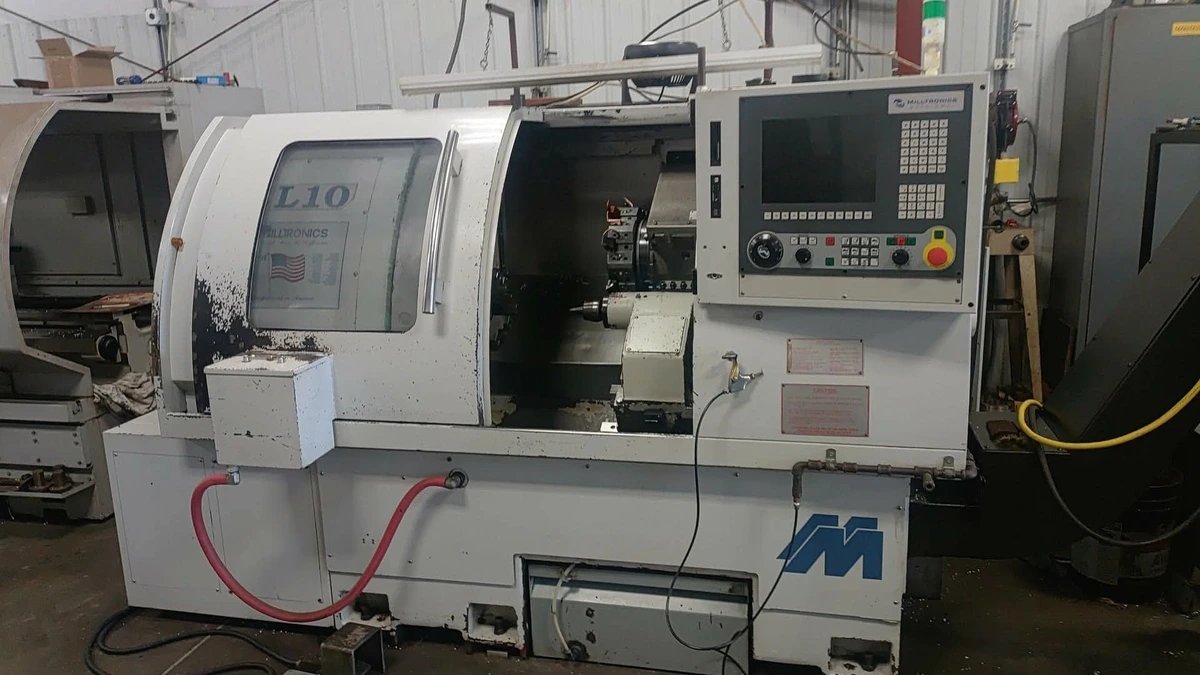

Milltronics SL10 CNC Lathe (2007)
Have one to sell?
ConditionUsed
1 available
Milltronics SL10 CNC Lathe (2007)
Milltronics SL10 2 Axis CNC Lathe (2007)
Core Machine Specifications
Chuck Size: 10″ (3-jaw hydraulic chuck) Atlas
Maximum RPM: 4,000 RPM
Bar Capacity: 2.5″ to 2.55″
Spindle Bore: 3.0″
Spindle Motor: 15 HP
Turret Capacity: 8
Capacities & Travels
Maximum Swing Over Bed: 20″
Maximum Turning Diameter: 12.25″
Maximum Turning/Machining Length: 21″ to 29.9″
X-Axis Travel: 7.5″Z-Axis Travel: 21″
Rapid Traverse Rate (X/Z): 1,000 IPM
Milltronics Centurion CNC 7200
10" Chuck Atlas Hyd
10" Chuck Pratt Hyd
Tailstock
Chip Conveyor
Parts Catcher ( arm missing )
Bar Feed
Multi Format Card Reader
Milltronics SL10 CNC Lathe (2007)
Imperial
| size | 10" chuck |
| Swing | 20" |
| Machining Length | 29.9" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 2.5" |
| Power | 24 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 12.25" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Weight | 7000 |
Milltronics SL10 2 Axis CNC Lathe (2007)
Core Machine Specifications
Chuck Size: 10″ (3-jaw hydraulic chuck) Atlas
Maximum RPM: 4,000 RPM
Bar Capacity: 2.5″ to 2.55″
Spindle Bore: 3.0″
Spindle Motor: 15 HP
Turret Capacity: 8
Capacities & Travels
Maximum Swing Over Bed: 20″
Maximum Turning Diameter: 12.25″
Maximum Turning/Machining Length: 21″ to 29.9″
X-Axis Travel: 7.5″Z-Axis Travel: 21″
Rapid Traverse Rate (X/Z): 1,000 IPM
Milltronics Centurion CNC 7200
10" Chuck Atlas Hyd
10" Chuck Pratt Hyd
Tailstock
Chip Conveyor
Parts Catcher ( arm missing )
Bar Feed
Multi Format Card Reader
