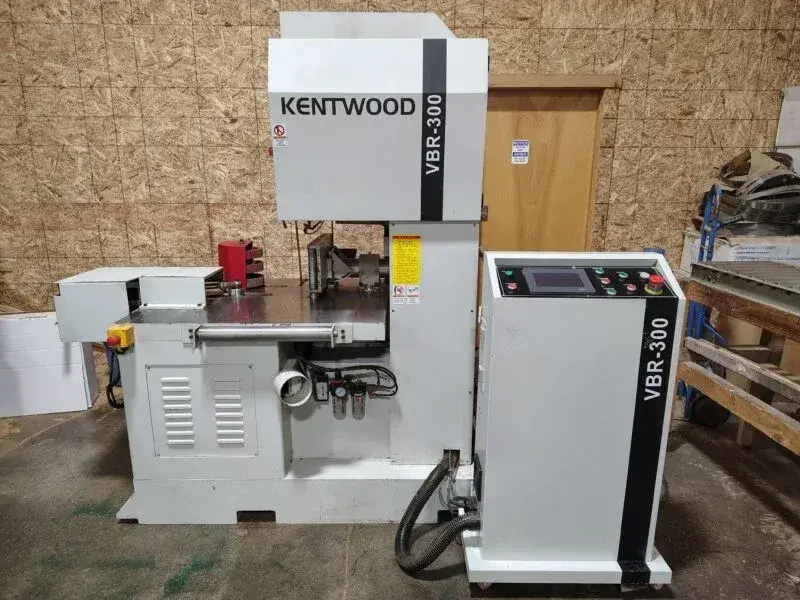

Kentwood VBR-300 Vertical Band Resaw

Kentwood VBR-300 Vertical Band Resaw

Max Material Size (Width x Height): 19.68″ x 13.77″ (500 x 350 mm)
Fence Movement: 7.87″ (200 mm)
Feed Roller Opening: 11.81″ (300 mm)
Minimum Cut Piece: 0.118″ (3 mm)
Table Height from Floor: 35.03″ (890 mm)
Blade and Wheel Specifications
Saw Wheel Diameter: 31.5″ (800 mm)
Saw Blade Length: 196.06″ (4980 mm)
Saw Blade Width: 2″ (50 mm)
Feed Speed (Variable): 0 – 147.6 ft/min (0 – 45 m/min)
Motor and Power Specifications
Saw Wheel Motor: 30 HPFeed Motor: 1 HP (with inverter)
Feed Roller Movement Motor: 0.25 HP
Fence Motor: 0.25 HP
Physical Dimensions and Weight
Dust Hood Outlet Diameter: Φ4″ x 2
Packing Dimensions (L x W x H): 51.57″ x 89.37″ x 94.09″ (131 x 227 x 239 cm)
Net Weight: 4,202 lbs (1906 kg)
Gross Weight: 4,651 lbs (2110 kg)
