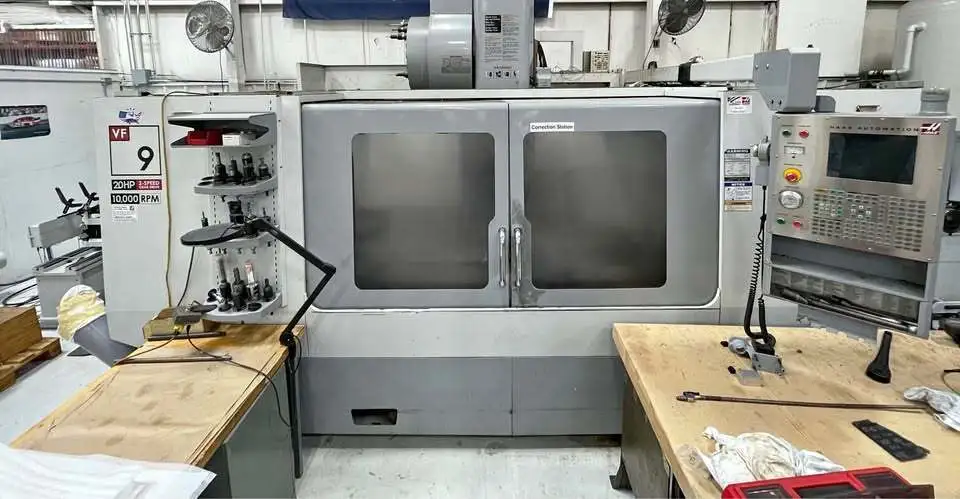

Haas VF9B/40 4 Axis Vertical Machining Center (2005)
Have one to sell?
ConditionUsed
1 available
Haas VF9B/40 4 Axis Vertical Machining Center (2005)
Haas VF9 4 Axis Vertical Machining Center (2005)

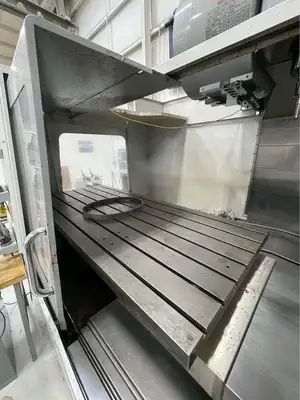

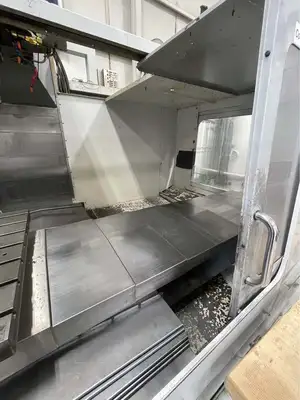

Travel Capacity & Table
X Axis Travel: 84 in (2,134 mm)
Y Axis Travel: 40 in (1,016 mm)
Z Axis Travel: 30 in (762 mm)
Table Length: 84 in (2,134 mm)
Table Load: 4,000 lb (1,814 kg)
Spindle Specifications
Max Rating: 30 hp (22.4 kW)
Max Speed: 8,100 rpm
Max Torque: 90 ft-lb @ 2,000 rpm (122 Nm)
Taper Type: 40 Taper
Tool Changer & Operation
Tool Capacity: 30+1 (Side-mount automatic tool changer)
Rapid Traverse Rate: 600 ipm (15.2 m/min)
Air Required: 100 psi, 4 scfm

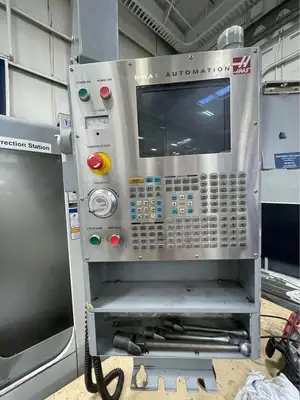

Haas CNC
4th Axis Rotary Table
Side Mount Tool Changer
Chip Auger
Miscellaneous Tool Holders ( approx 24 )
Haas VF9B/40 4 Axis Vertical Machining Center (2005)
Imperial
| size | 84" x 40" x 30" |
| X Travel | 84" |
| Y Travel | 40" |
| Z Travel | 30" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| # ATC | 24 |
| Taper | CAT-40 |
| Table-W | 36" |
| Table-L | 84" |
| # Axis | 4 |
Haas VF9 4 Axis Vertical Machining Center (2005)
Travel Capacity & Table
X Axis Travel: 84 in (2,134 mm)
Y Axis Travel: 40 in (1,016 mm)
Z Axis Travel: 30 in (762 mm)
Table Length: 84 in (2,134 mm)
Table Load: 4,000 lb (1,814 kg)
Spindle Specifications
Max Rating: 30 hp (22.4 kW)
Max Speed: 8,100 rpm
Max Torque: 90 ft-lb @ 2,000 rpm (122 Nm)
Taper Type: 40 Taper
Tool Changer & Operation
Tool Capacity: 30+1 (Side-mount automatic tool changer)
Rapid Traverse Rate: 600 ipm (15.2 m/min)
Air Required: 100 psi, 4 scfm
Haas CNC
4th Axis Rotary Table
Side Mount Tool Changer
Chip Auger
Miscellaneous Tool Holders ( approx 24 )
