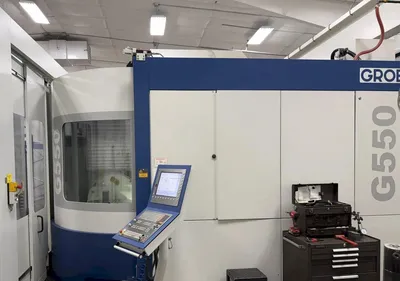

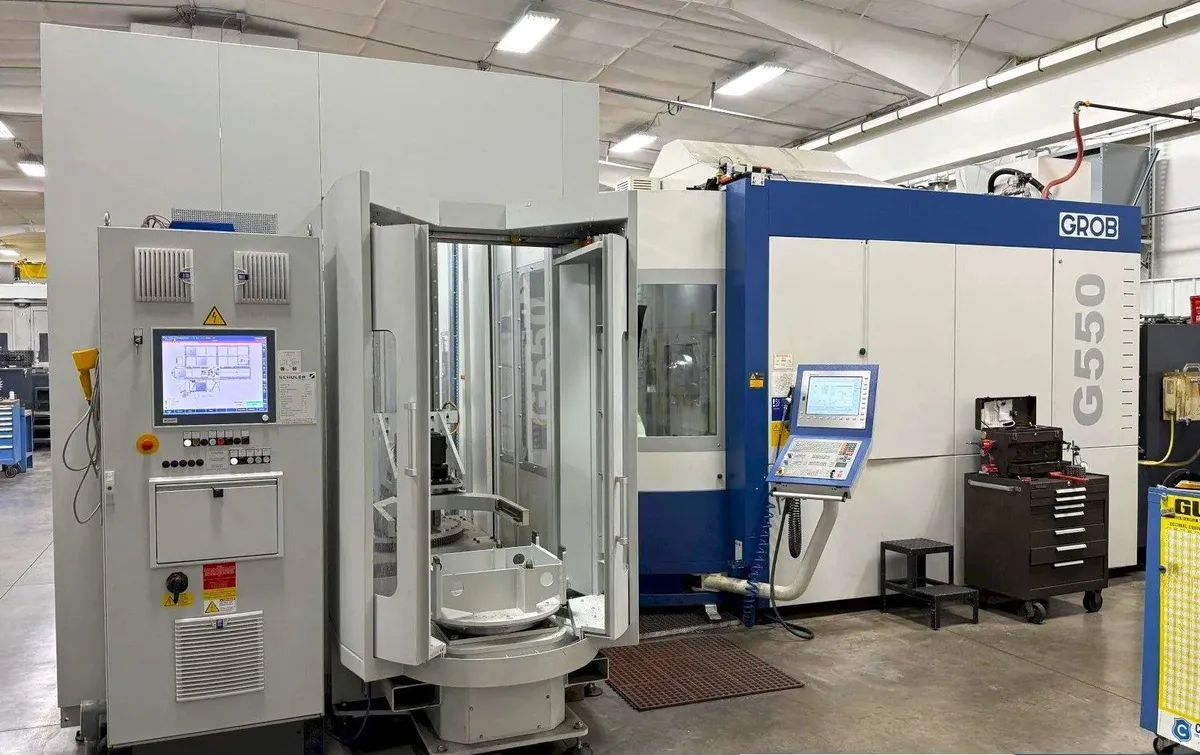

Grob G550 5 Axis Universal Machining Center (2015)
Have one to sell?
ConditionUsed
1 available
Grob G550 5 Axis Universal Machining Center (2015) with 10 Station Pallet Pool, Heidenhain iTNC 530 CNC Control A/B Axis Tilting Rotary Table High Pressure Coolant Thru Spindle Grob Special Diagnostics Renishaw Probing
Grob G550 5 Axis Universal Machining Center (2015)
Type of CNC Control Heidenhain iTNC 530
# Axis 5

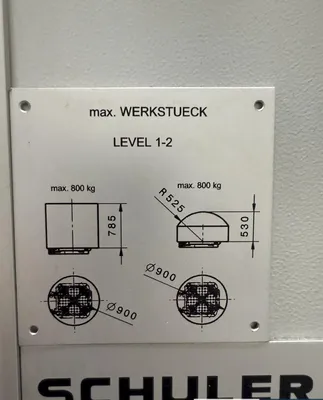

Pallet Load Capacity 1653 lb 749.79 kg
Table Diameter 30.31"
X-Axis Travel 31.5 in 800.10 mm
Y-Axis Travel 40.2 in 1,021.08 mm
Z-Axis Travel 38.2 in 970.28 mm
A Axis Swivel -185° to + 45°
B Axis Indexing 0.001°
Spindle Taper HSK 63A
Spindle Speed 30,000 RPM
Spindle Motor (HP) 43 hp
Tool Changer Capacity 120 120
Coolant Through Spindle yes
Machine Dimensions 253" x 114" x 131"
Machine Weight 57000 lb 25,854.74 kg

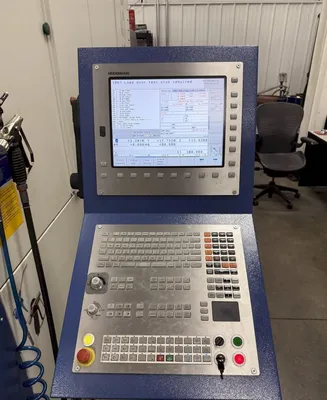

- Heidenhain iTNC 530 CNC Control

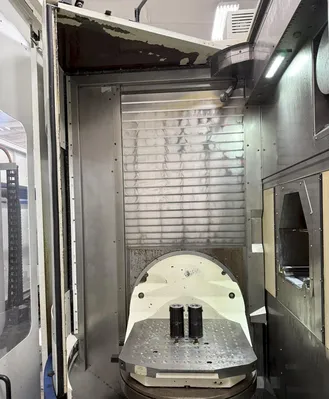

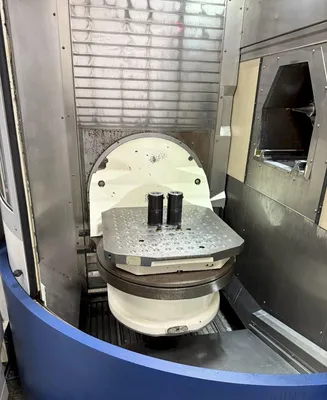

- A/B Axis Tilting Rotary Table
- High Pressure Coolant Thru Spindle
- Grob Special Diagnostics
- Mist Collector
- Oil Skimmer

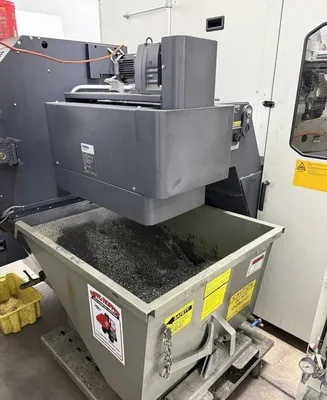

- Chip Conveyor
- Coolant Flush
- Auto Door

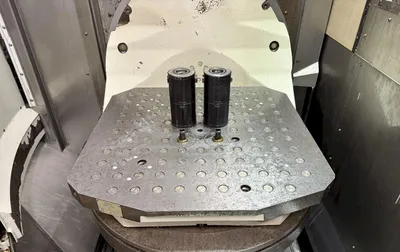

- Grid Hole Pattern Pallet Design

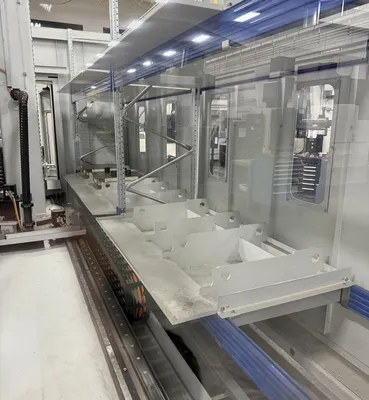

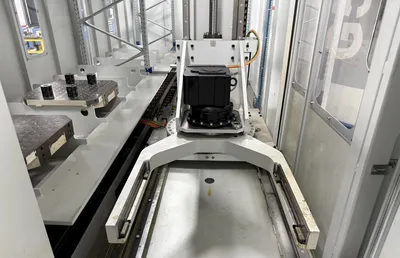

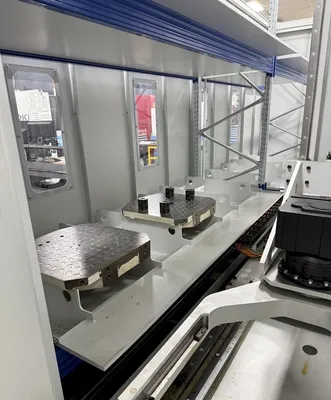

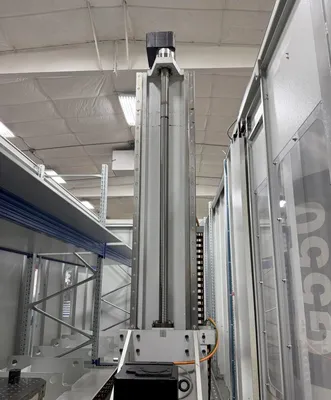

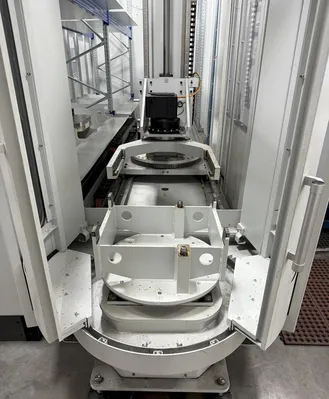

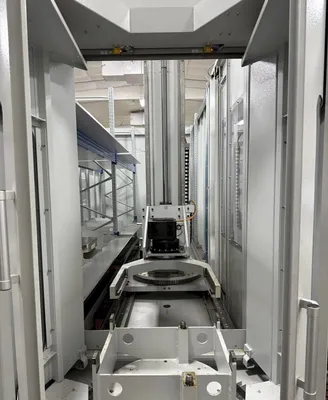

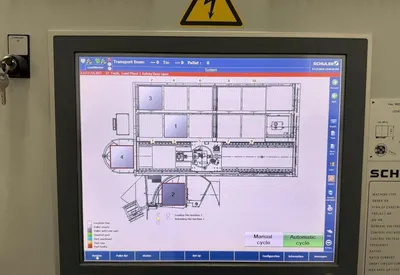

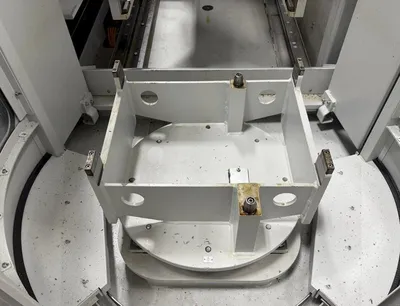

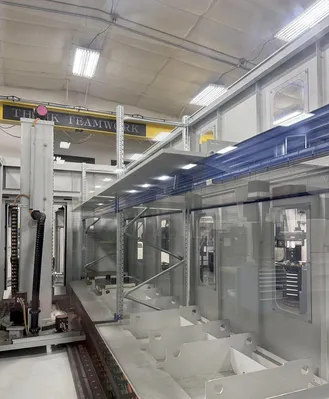

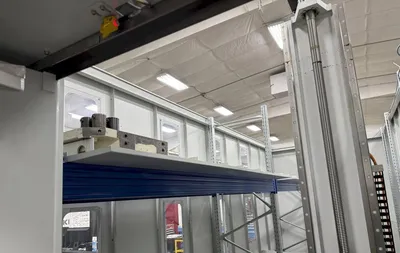

- 10 Pallet Pool System (4 Pallets Available)
- Pallet Clamping on Roarty Table
- DCM (Dynamic Collision Monitoring)
- Smart. NC for iTNC 530
- KinematicOpt
- 5 Axis Kinematic-Set Premium
- Blum Laser Tool Monitoring
- Grob Tool Breakage Detection Device
- Renishaw Probe interface (Probe not Included)
