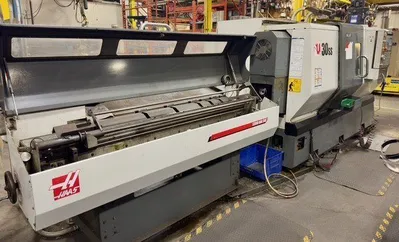

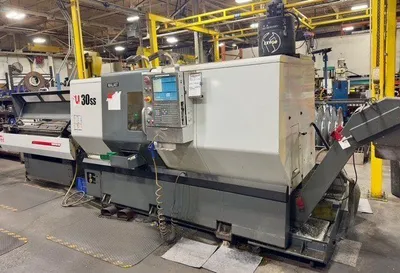

Haas ST30SS Live Tool CNC Lathe (2013)

Haas ST30SS Live Tool CNC Lathe

Maximum Part Swing: 31.75" (806 mm)
Maximum Cutting Diameter: 16.0" (406 mm)
Maximum Cutting Length: 26.0" (660 mm)
Chuck Size: 10" (254 mm) hydraulic chuck
Bar Capacity: 3.0" (76 mm)Spindle Specifications
Spindle Speed: 4,500 RPM
Spindle Motor: 30 hp (22.4 kW) vector drive
Spindle Nose: A2-6Drive System: Belt drive

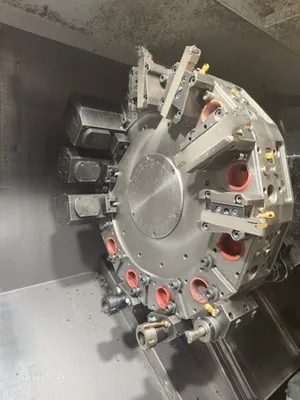

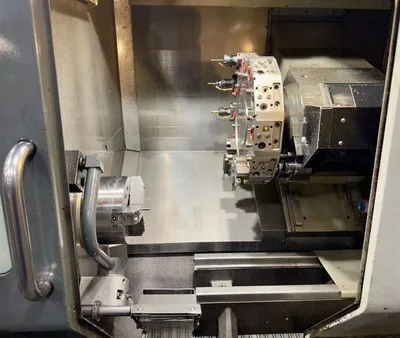

Turret & Live Tooling
Turret Capacity: 24-station hybrid turret (12 VDI / 12 BOT)
Live Milling: Supported (3-axis capabilities with C-axis spindle orientation)
Tapping: Rigid tapping
Travel & Feedrates
X-Axis Travel: 12.5" (318 mm)
Z-Axis Travel: 26.0" (660 mm)Rapid Traverse (X/Z): 945 ipm (24.0 m/min)
Utilities & Electricals
Coolant Tank Capacity: 55 Gallon (208 Liter) with 3/4 hp pump

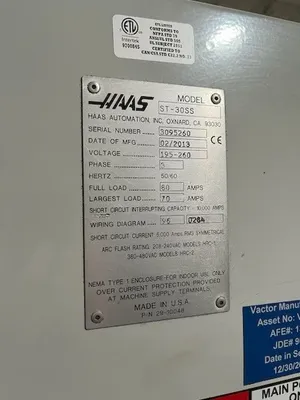

Electrical Requirement: 220 VAC @ 70 Amps (3-Phase, Low) or 440 VAC @ 35 Amps (3-Phase, High)
