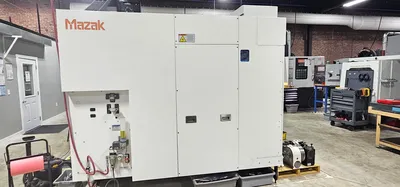

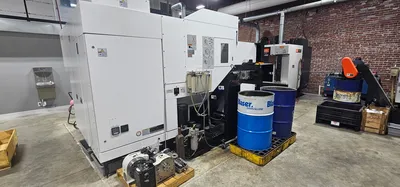

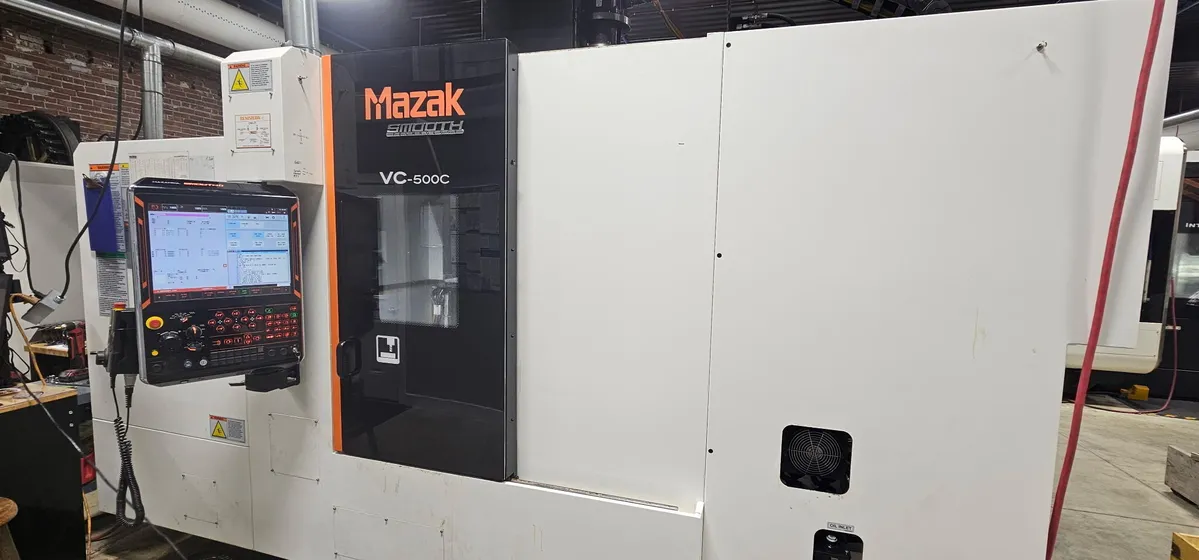

Mazak VC-500C (2) Pallet Vertical Machining Center (2020)

Mazak VC-500C (2) Pallet Vertical Machining Center (2020)

Axis Travels and Capacity
X-Axis Travel: 39.37 inches (1,000 mm)
Y-Axis Travel: 19.88 inches (505 mm)
Z-Axis Travel: 20.07 inches (510 mm)
Maximum Workpiece Weight: 1,300 lbs per pallet
Spindle Nose To Table (Min.- Max.) 1.57″ – 21.65″
Number Of Std T-Slots 5
T-Slot Width 5/8″
Table and Pallets
Number of Pallets: 2 inline changer
Table Size: 41.33 inches x 19.68 inches
Max Weight On Table 1300 LBS
Spindle and Tooling
Spindle Speed: 12,000 RPM
Spindle Motor Power: 25 hp (18.63 kW)
Taper: 40
Automatic Tool Changer (ATC): 30 tools (standard side-mount)
Max Tool DIA 3.15″ – 4.92″
Max Tool Length 10.23″
Max Tool Weight 17.63″ Lbs
Air Required (Per Cycle) 80 Psi, 4 Scfm
Power
208v / 30 Kva / 3-Phase / 50/60 Htz
Rapid Traverse Rates Axis 1181 IPM

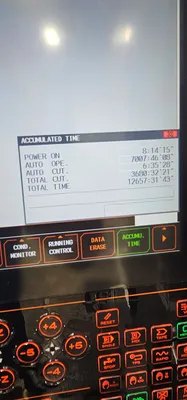

CNC Control: Mazatrol SmoothG
