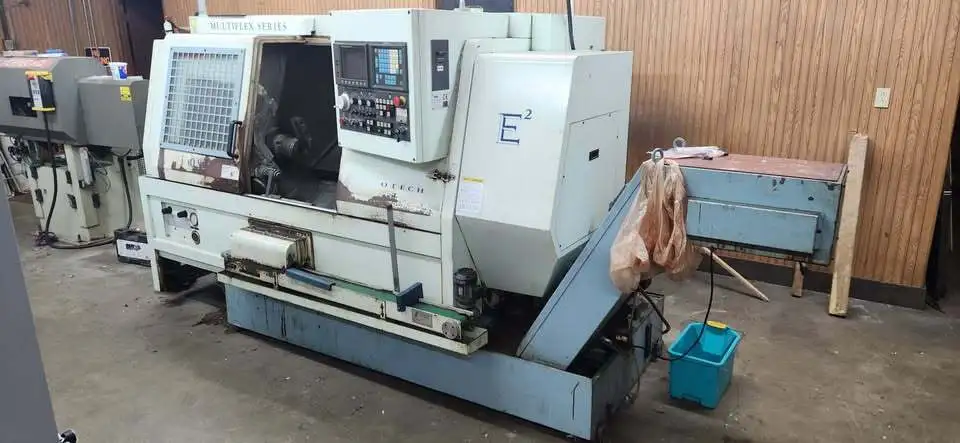

Eurotech 730SL Live Tool CNC Lathe with Sub Spindle
Have one to sell?
ConditionUsed
1 available
Eurotech 730SL Live Tool CNC Lathe with Sub Spindle
Eurotech 730SL Live Tool CNC Lathe with Sub Spindle
Max Turning Diameter: 12.62 inches
Swing over bed: 18.5 inches
Max Turning Length: 19.68 inches
Bar Capacity: 2.75 inches
Main & Sub Spindle Speed: 40 to 4,000 RPM
(Main: 35 HP, Sub: 10 HP)
Travels: X-Axis: 8.62 inches,
Z-Axis: 20.05 inches,
B-Axis (Sub-spindle): 20.25 inches
Turret Capacity: 12 station total, including 6 live/rotary stations (3,000 RPM live tool speed)
Fanuc 0-T CNC
Live Tool
Chip Conveyor
Tool presetter
Collet Chuck
LNS Barfeed
Eurotech 730SL Live Tool CNC Lathe with Sub Spindle
Imperial
| size | 10" Chuck |
| Swing | 18.5" |
| Machining Length | 19.8" |
| Chuck Size | 10" |
| Bar Capacity | 2.75" |
| Power | 35 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 12.62" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
Eurotech 730SL Live Tool CNC Lathe with Sub Spindle
Max Turning Diameter: 12.62 inches
Swing over bed: 18.5 inches
Max Turning Length: 19.68 inches
Bar Capacity: 2.75 inches
Main & Sub Spindle Speed: 40 to 4,000 RPM
(Main: 35 HP, Sub: 10 HP)
Travels: X-Axis: 8.62 inches,
Z-Axis: 20.05 inches,
B-Axis (Sub-spindle): 20.25 inches
Turret Capacity: 12 station total, including 6 live/rotary stations (3,000 RPM live tool speed)
Fanuc 0-T CNC
Live Tool
Chip Conveyor
Tool presetter
Collet Chuck
LNS Barfeed
