DMG Mori DMU 50 econoline 5 Axis Vertical Machining Center (2014)
Have one to sell?
ConditionUsed
1 available
DMG Mori DMU 50 econoline 5 Axis Vertical Machining Center (2014), high-precision 5-axis vertical machining center. It is engineered primarily for 3+2 axis positional machining but can handle complex 5-sided milling operations for small to medium-sized workpieces. Siemens SINUMERIK 840D SLIMline CNC Control, Low Hours 2218 Power On / 380 Cut Hours
DMG Mori DMU 50 econoline 5 Axis Vertical Machining Center (2014)
Machine Specifications
X-Axis Travel: 19.7 in / 500 mm
Y-Axis Travel: 17.7 in / 450 mm (Note: standard configurations usually span 420–450 mm)
Z-Axis Travel: 15.7 in / 400 mm
Rapid Traverse Speed (X/Y/Z): Up to 945 ipm / 24 m/min
Total Machine Weight: ~8,818 lbs / 4,000 kg
Table & Workpiece Capacity

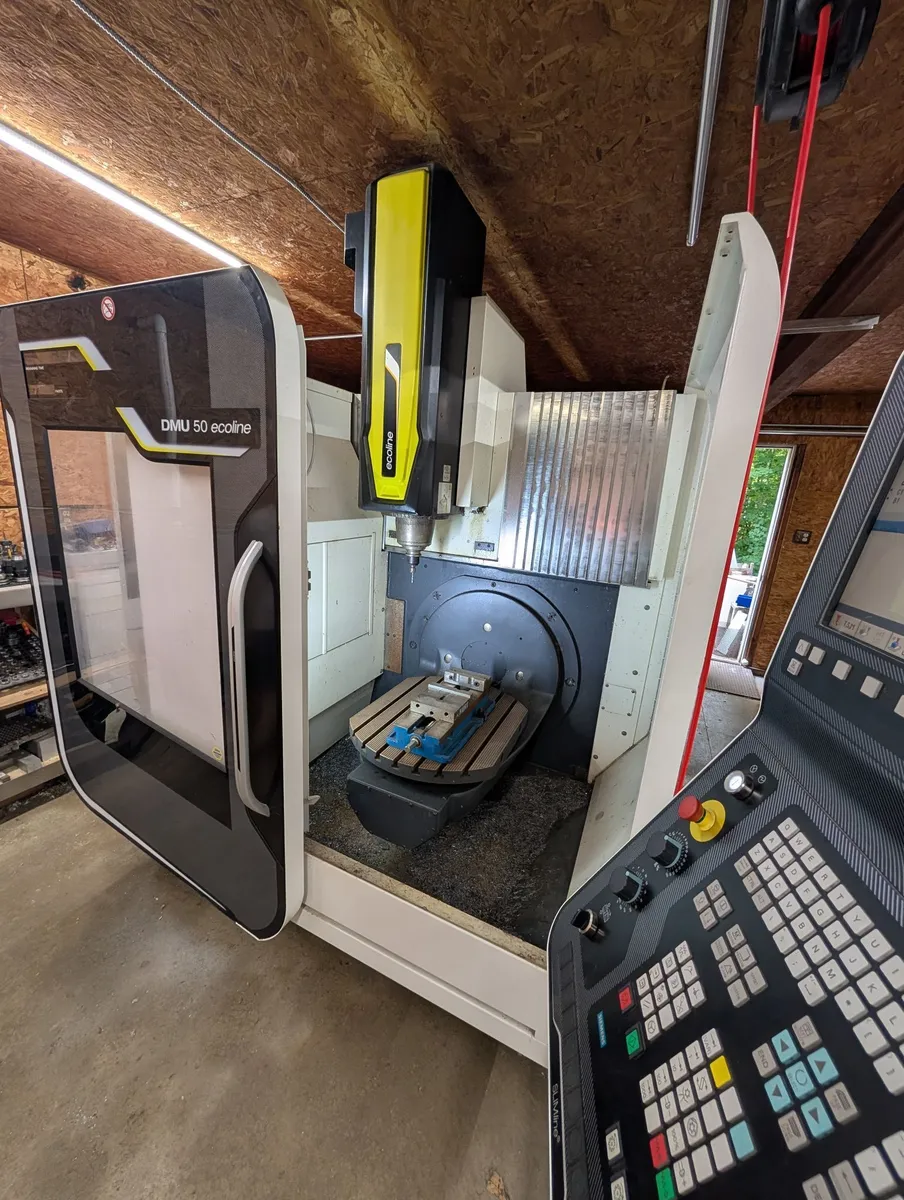

The machine features a robust, patented 2-axis NC swivel rotary table utilizing a cantilevered design for clear front-door accessibility.
Table Dimensions: 24.8 x 19.7 in / 630 x 500 mm
Maximum Workpiece Weight: 661 lbs / 300 kg
B-Axis Swivel Range: -5° to +110°
C-Axis Rotation Range: 360°
Spindle Options
The standard setup focuses on reliable torque, with choices available depending on the model year:
Standard Spindle Speed: 8,000 RPM
Optional Spindle Speed Upgrade: 10,000 RPM or 12,000 RPM (for higher speed machining)
Spindle Taper: SK40 / CAT 40 / BT40
Drive Power: ~19.4 HP / 14.5 kW

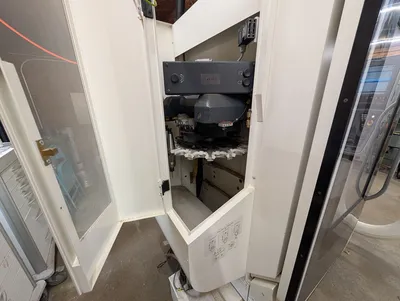

Tool Changer
Tool Magazine Capacity: 16 slots standard (expandable up to 30 slots on select builds)
Max Tool Length: 11.8 in / 300 mm
Max Tool Weight: 13.2 lbs / 6 kg

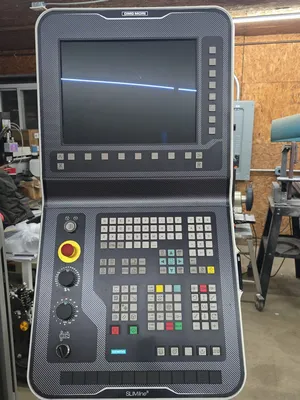

Siemens SINUMERIK 840D SLIMline CNC Control
Low Hours 2218 Power On / 380 Cut Hours
