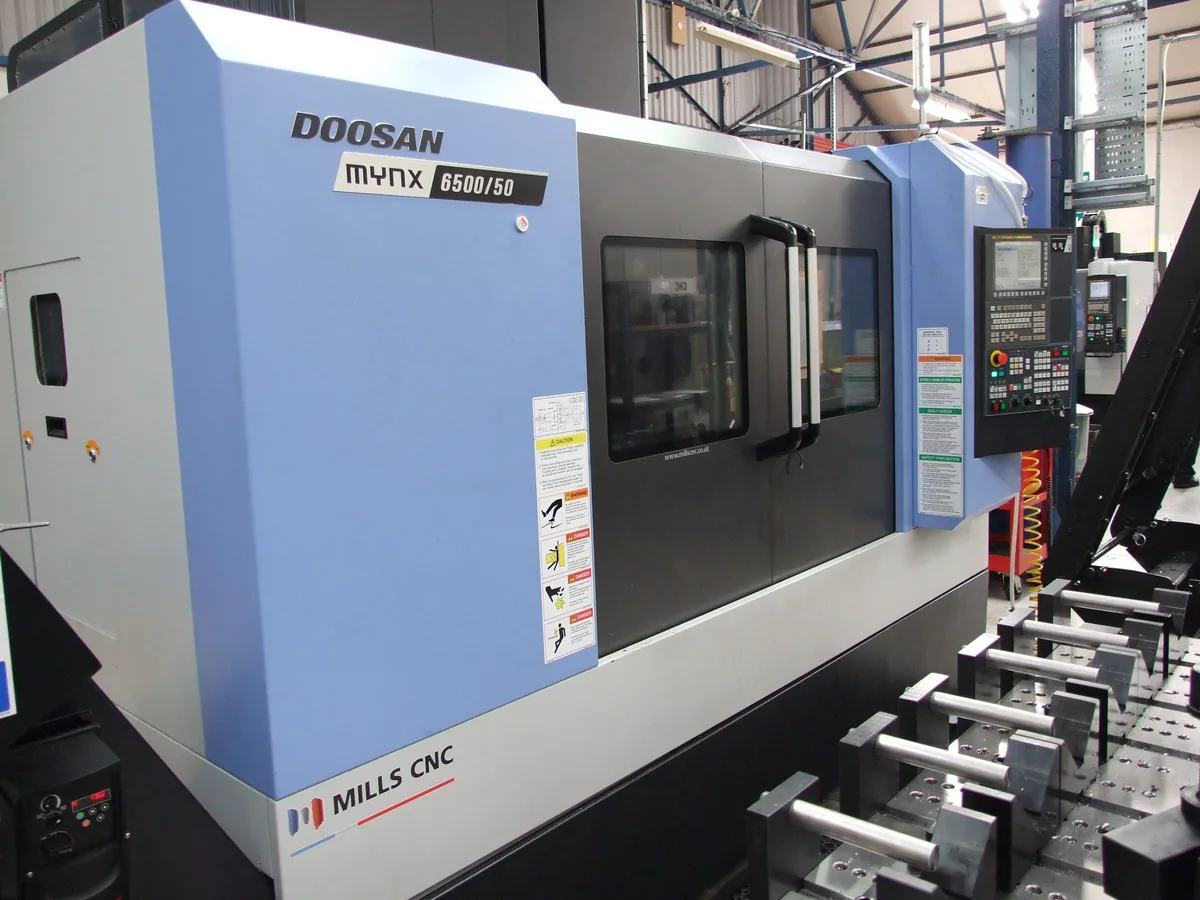

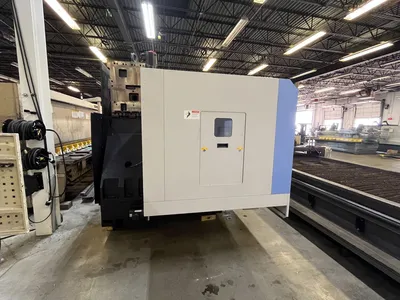

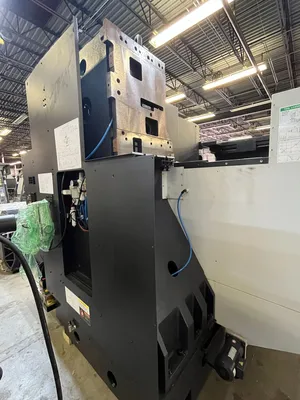

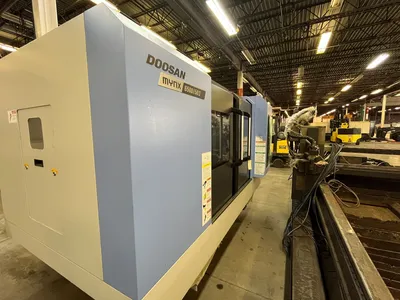

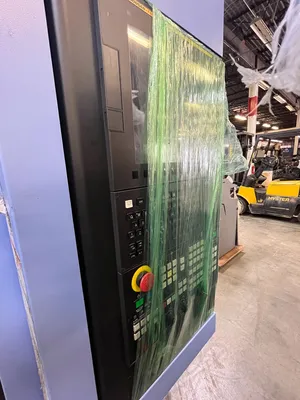

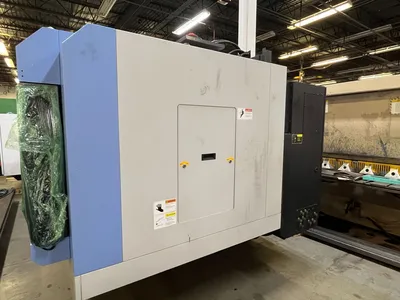

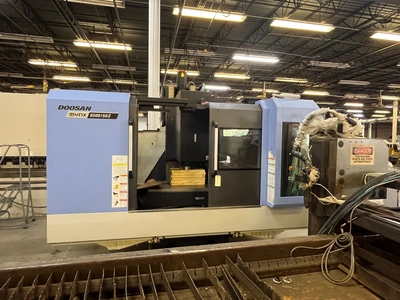

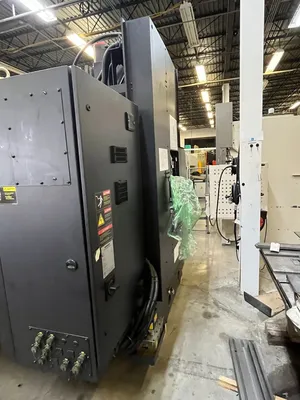

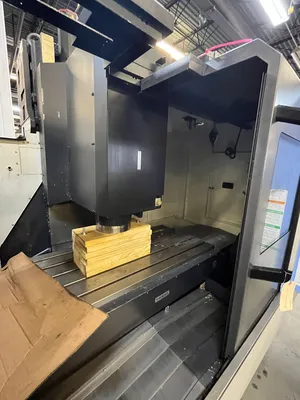

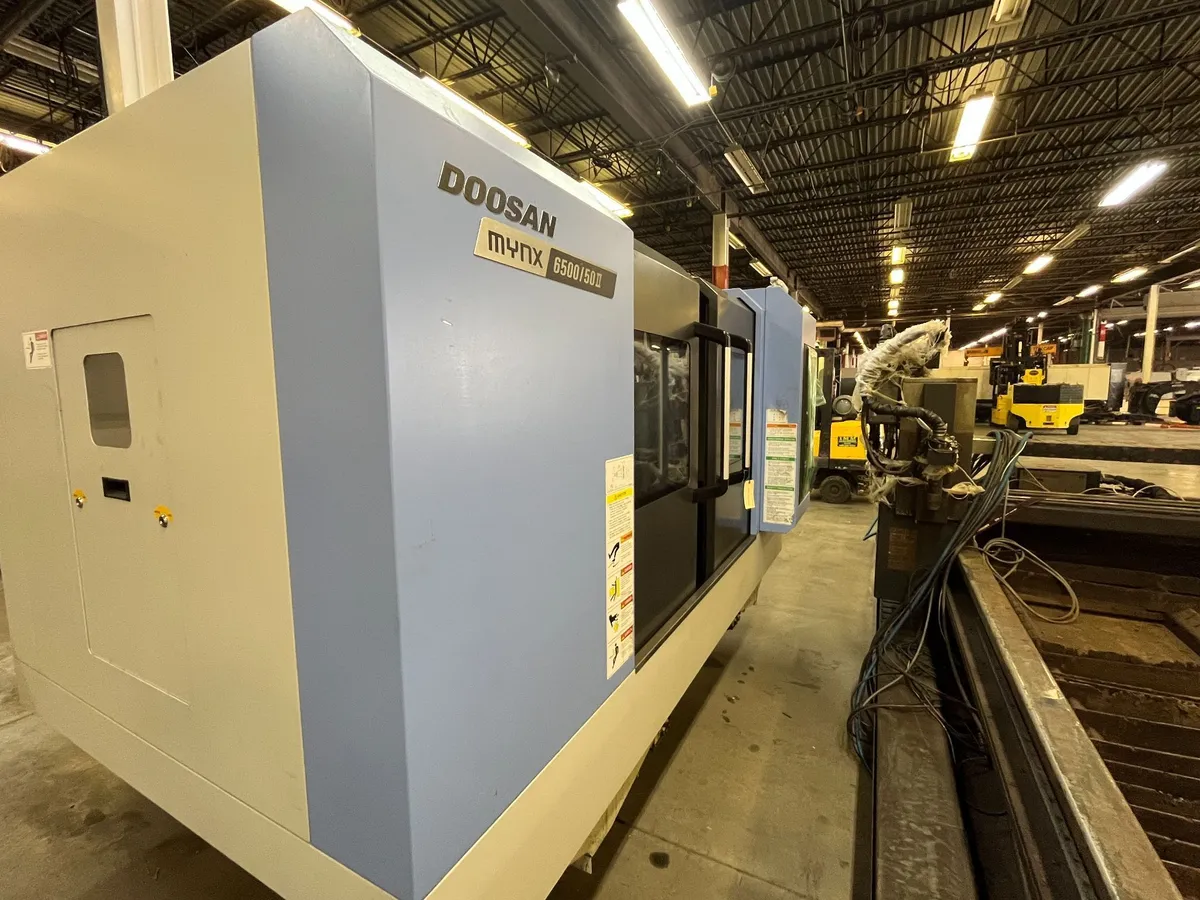

DN Solutions Doosan Mynx 6500/50II Vertical Machining Center (2022)

DN Solutions Doosan Mynx 6500/50II Vertical Machining Center (2022)

Axis Travels and Table

X-Axis Travel: 1270 mm (50.0 inches)
Y-Axis Travel: 670 mm (26.4 inches)
Z-Axis Travel: 625 mm (24.6 inches)
Table Size: 1400 x 670 mm (55.0 x 26.4 inches)
Max Table Load: 1000 kg to 1200 kg (2200 lbs)
Spindle
Spindle Taper: CAT / BT 50 (BIG-PLUS dual-contact available)
Max Spindle Speed: 6000 RPM (gear-driven / belt options vary by configuration)
Spindle Power: 20 to 30 HP (15 kW / 18.5 kW)
Tool Changer and Capacities
Tool Magazine Capacity: 30 station (side-mounted standard, or 24 station depending on build)
Max Tool Diameter: 125 mm (3.54 to 4.9 inches)
Max Tool Length: 350 mm (11.8 inches)
Max Tool Weight: 15 kg (17.6 lbs)
