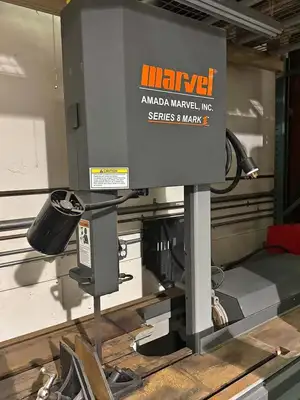

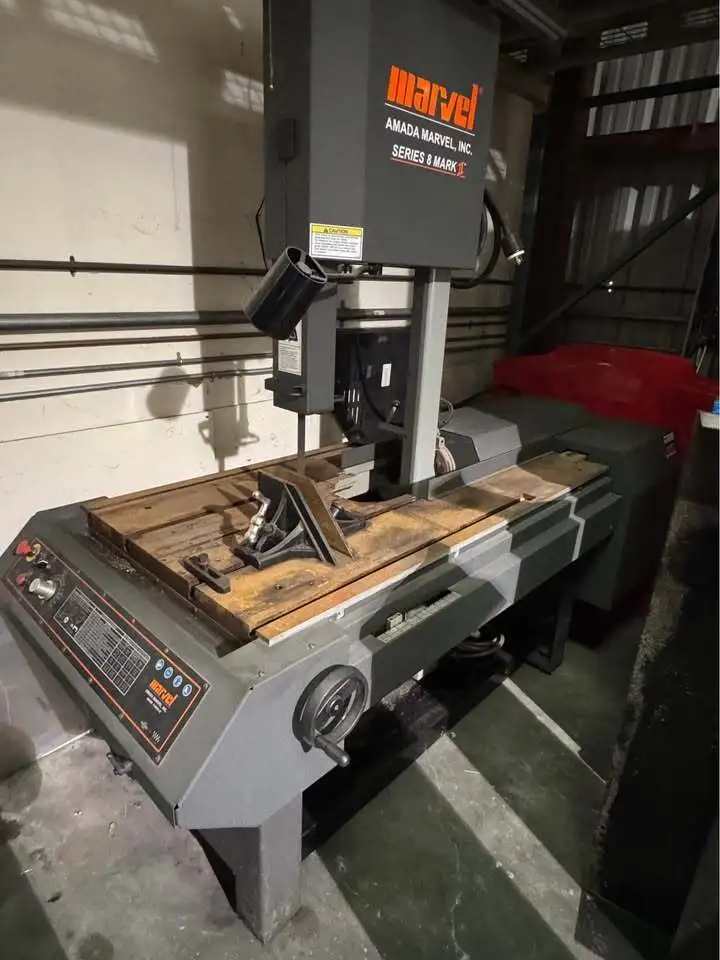

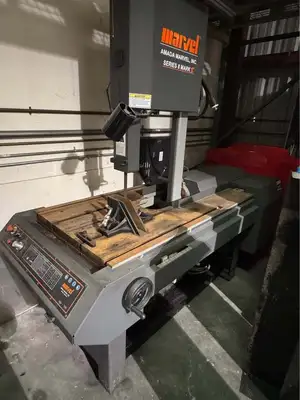

Marvel Series 8 Mark II Vertical Band Saw (2021)

Marvel Series 8 Mark II Vertical Band Saw (2021)

Capacity @ 90 deg.: 18 x 22″
Capacity @ 45 deg.: 12.75″ x 17″
Max tilt to right: 45 degree
Max tilt to left: 45 degree
Throat depth: 18″
Throat height: 22″
Blade speeds: 40 – 450 FPM infinitely variable
Blade dimensions: 14’6″ x 1″ x .035″
Blade guides: Carbide
Blade drive type: Motor to pulley
Blade tension: Manual
Coolant type: Flood
Motor horsepower: 2 HP
Voltage: 230/460 volt
Currently wired: 230 volt (full load amps at 230v = 9)
Wheel diameter: 18″
Working surface of table: 24.25″ x 33″
Working height: 35″
Dimensions: 90″ L x 49″ W x 85″ H (94” H on skid)
Weight: 2,870 lbs.
