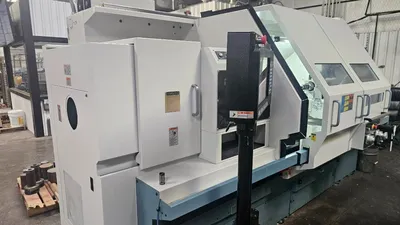

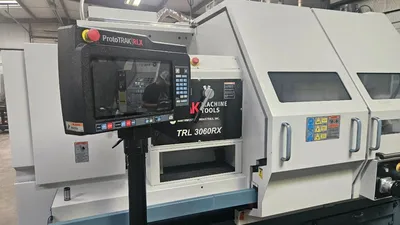

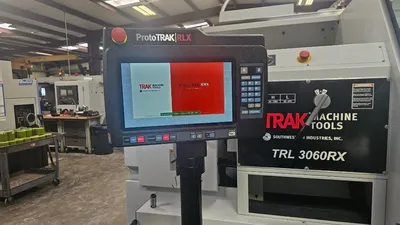

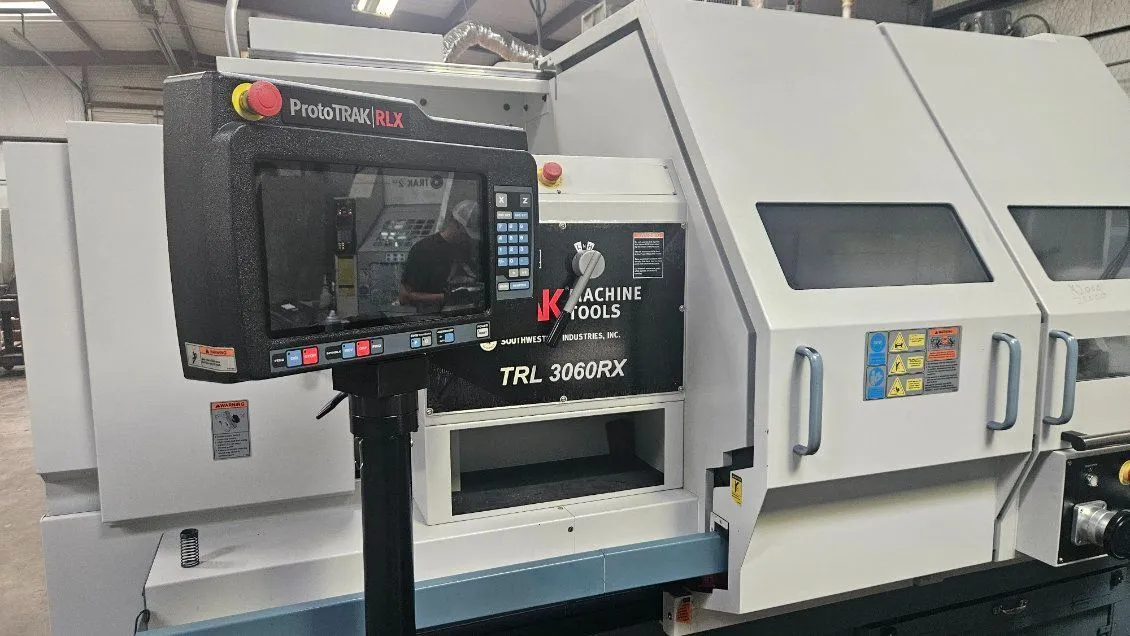

Southwestern Industries TRAK 3060RX CNC Lathe (2024)

Southwestern Industries TRAK 3060RX CNC Lathe (2024)

Capacity & Dimensions
Swing Over Bed: 33″
Distance Between Centers: 60″
Swing Over Cross Slide: 21.2″
Swing Over Gap: 43.5″
Length of Gap: 15.5″
Maximum Turning Length (Z-Axis Travel): 60″
Cross Slide Travel (X-Axis Travel): 20.5″
Bed Width / Height: 19.69″ width / 18.70″ height
Machine Net Weight: 13,970 lbs
Physical Footprint (L x W x H): 150.31″ x 86.61″ x 88.25″
Spindle & Headstock
Spindle Motor: 30 HP continuous
Spindle Nose: A2-11
Spindle Through Hole: 6.30″
Spindle Speed Ranges: 2 ranges
Low Range: 20 – 415 RPM
High Range: 40 – 1,300 RPM
Spindle Taper: Non-MT standard taper (MT #6 reduction sleeve)
Headstock Lubrication: Oil bath (8.5-gallon capacity)
Tailstock & Tooling
Quill Diameter: 4.13″
Quill Travel: 8″
Quill Taper Hole: MT #6
Maximum Tool Section: 1.5″
Motion & Power Requirements
Rapid Feed Rates: 400 IPM on Z-axis / 200 IPM on X-axis
Axis Motors: Brushless servo motors with electronic handwheels and jogstick
Voltage Requirement: 480V +/- 10% (3-phase, 60Hz)Full Load Current: 59 Amps
