Dainichi DL75/4000 29" x 157" Flat Bed CNC Lathe
Have one to sell?
ConditionUsed
1 available
Dainichi DL75/4000 29" x 157" Flat Bed CNC Lathe
Dainichi DL75/4000 29" x 157" Flat Bed CNC Lathe
Model: DL75 × 400
Swing Over Bed: 29.5" (750 mm)
Swing Over Carriage: 18.9" (480 mm)
Distance Between Centers: 157.5" (4,000 mm)
X-Axis Travel: 17.7" (450 mm)
Z-Axis Travel: 160.2" (4,070 mm)
Spindle Speed: 12–1,120 RPM
Spindle Bore: 3.35" (85 mm)
Main Motor: 15/10 HP (11/7.5 kW)
Approximate Weight: 12,100 lbs

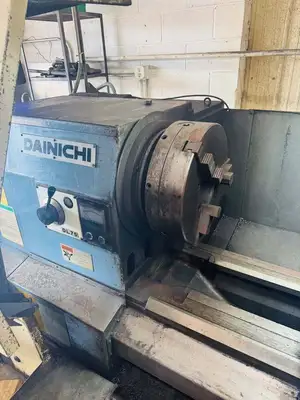

18" 3-Jaw Chuck

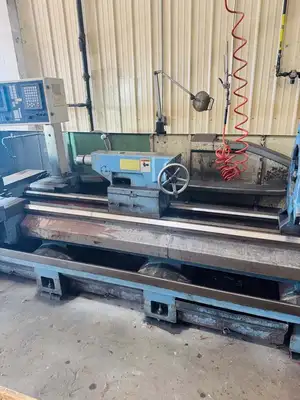

Tailstock
(2) Factory Steady Rests
Rapid Traverse
Electronic Positioning/DRO System (operational; batteries need replaced)
Coolant System
Dainichi DL75/4000 29" x 157" Flat Bed CNC Lathe
Imperial
| size | 30" x 157" |
| Swing | 29.7" |
| Machining Length | 157" |
| # Axis | 2 |
| Chuck Size | 18" |
| Bar Capacity | 3.35" |
| Power | 15 hp |
| Max RPM | 1,120 RPM |
| Turning Dia | 18.9" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
Dainichi DL75/4000 29" x 157" Flat Bed CNC Lathe
Model: DL75 × 400
Swing Over Bed: 29.5" (750 mm)
Swing Over Carriage: 18.9" (480 mm)
Distance Between Centers: 157.5" (4,000 mm)
X-Axis Travel: 17.7" (450 mm)
Z-Axis Travel: 160.2" (4,070 mm)
Spindle Speed: 12–1,120 RPM
Spindle Bore: 3.35" (85 mm)
Main Motor: 15/10 HP (11/7.5 kW)
Approximate Weight: 12,100 lbs
18" 3-Jaw Chuck
Tailstock
(2) Factory Steady Rests
Rapid Traverse
Electronic Positioning/DRO System (operational; batteries need replaced)
Coolant System
