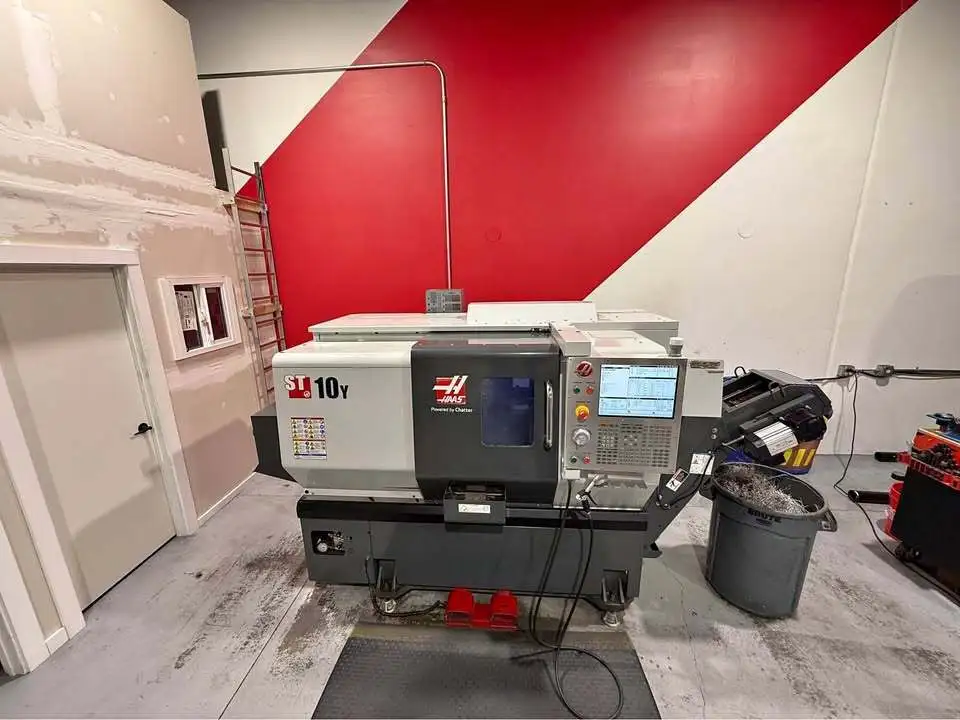

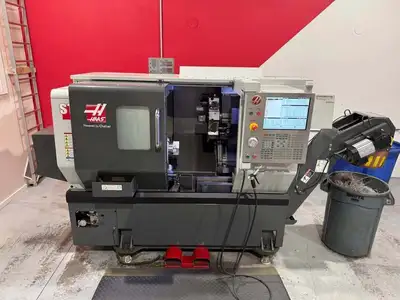

Haas Model ST10Y Slant Bed Live Tool CNC Lathe (2017)
Have one to sell?
ConditionUsed
1 available
Haas Model ST10Y Slant Bed Live Tool CNC Lathe (2017) 6" Chuck, Y Axis, Live Tool, Chip Conveyor, Haas CNC Control
Haas Model ST10Y Slant Bed Live Tool CNC Lathe (2017)
Chuck Size 6.5"
Max Cutting Dia. 9.0"
Max Cutting Length 14.0"
without workholding
Std. Bar Capacity 1.75"
Spindle Max Speed 6000 rpm
Max Motor Rating 15 hp
Max Torque 75 ft-lb @ 1300 rpm
Spindle Nose A2-5
Spindle Bore 2.31"
Swing Diameter Over Front Apron 25.25"
Over Cross Slide 16.25"
Over Tailstock 23.50"
Travels & Feedrates
X Axis 7.88"
Y Axis -- 2.0"
Z Axis 14"
X-Axis Rapids 1200 ipm 472 ipm
Y-Axis Rapids -- 472 ipm
Z-Axis Rapids 1200 ipm
Power - 3-Phase 195 - 260 V 195 - 260 V
- Tailstock

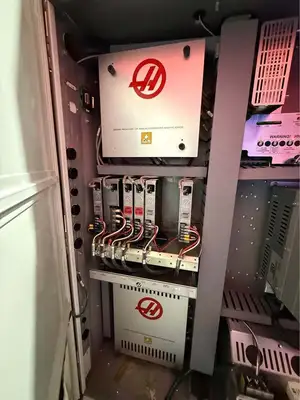

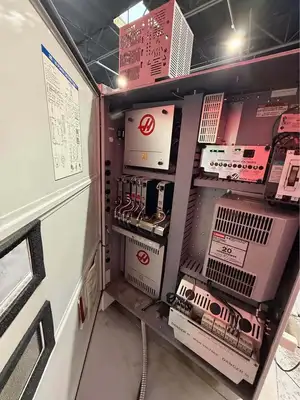

- Haas CNC Control
- Chip Conveyor
- Extended Memory
- 6.5" Chuck

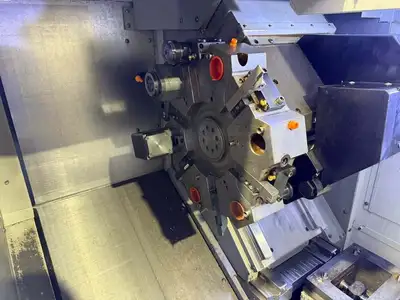

- Live Tool Holder
