Nakamura-Tome WT-150 MMYS Dual Turret Dual Spindle Live Tool CNC Lathe (2007)
Have one to sell?
ConditionUsed
1 available

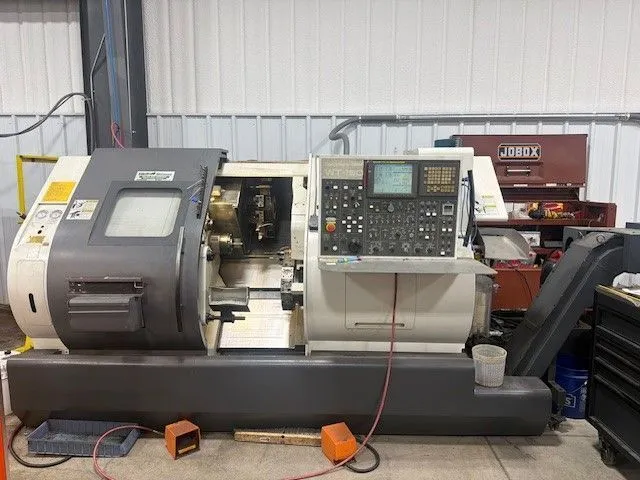

The Nakamura-Tome WT-150 MMYS Dual Turret Dual Spindle Live Tool CNC Lathe (2007) is a compact, multi-tasking CNC lathe with twin spindles and twin turrets. It features dual opposed spindles, live milling on both turrets, Y-axis capability, and a sub-spindle for complete part-handling.
Nakamura-Tome WT-150 MMYS Dual Turret Dual Spindle Live Tool CNC Lathe (2007)
Capacity and Axes
Max. Turning Diameter: 190 mm (7.48")
Max. Turning Length: 515 mm (20.27")
Bar Capacity: 51 mm (2.0")Chuck Size: 152 mm (6")
Number of Axes: 8
Main and Sub-Spindle
Spindle 1
Speeds: up to 5,000 RPM
Spindle 1 Motor Power: 15 kW / 11 kW (approx. 20 HP)
Spindle 2
Speeds: up to 4,500 RPM
Spindle 2 Motor Power: 11 kW / 7.5 kW
C-Axis Indexing: 360° (0.001° increment) on both spindles
Turrets and Milling

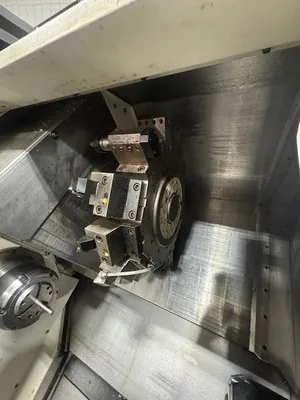

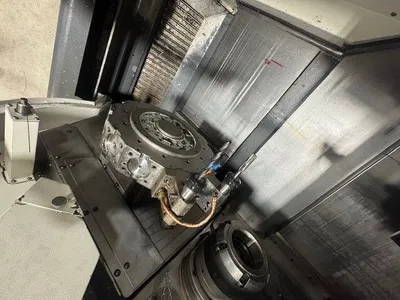

Number of Turrets: 2 (Upper and Lower)

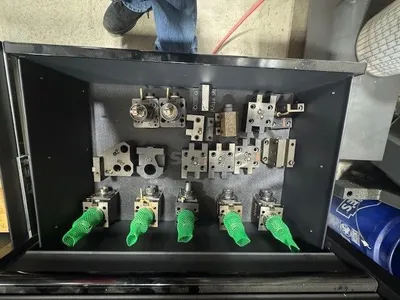

Tool Positions: 12 stations per turret

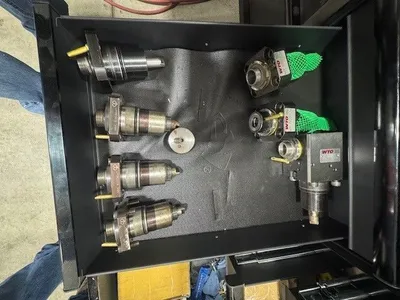

Live Tool Speed: Up to 6,000 RPM
Live Tool Power: 5.5 kW / 3.7 kW
Y-Axis Travel: upper turret
Dimensions and Control
Machine Weight: Approx. 8,600 kg (19,000 lbs)
Control System: FANUC
Built 2007
first installed 2009
43060 Power on time
3911 run hours Main (Left)
9518 run hours sub
Renishaw tool probe
broken tool detection

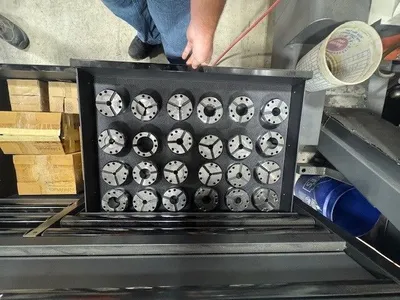

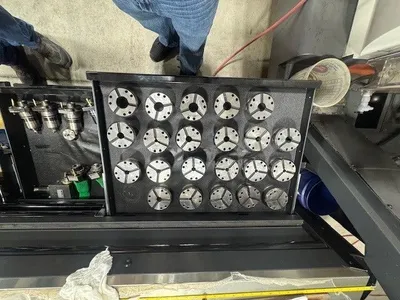

Microcentric B65 Collets
(2)6 inch 3 jaw Kitagawa chucks
parts catcher
High pressure coolant
NT Nurse
MGI
Fanuc 18i-TB control
