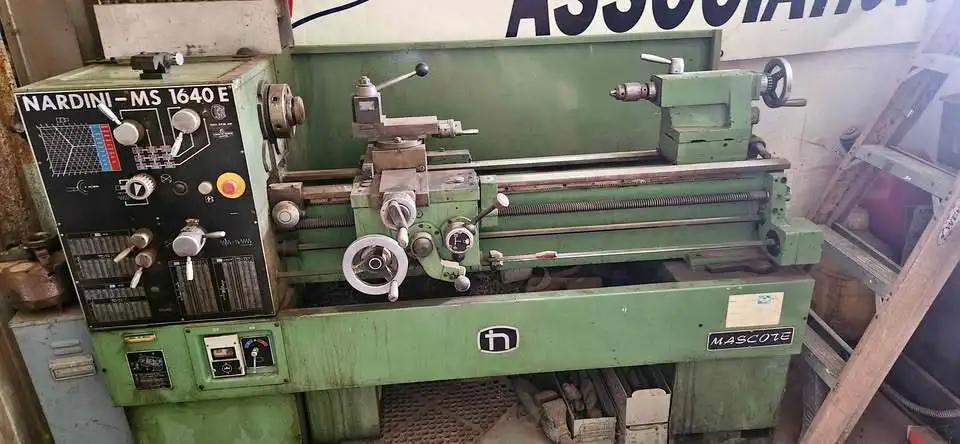

Nardini Mascote MS-1640 Engine Lathe

Nardini Mascote MS-1640 Engine Lathe
Swing Over Bed: 16 1/8″

Swing Over Cross Slide: 10 1/4″

Swing In Gap: 22″

Length Of Gap: 4 3/4″

Distance Between Centers: 40″

Cross Slide Travel: 9 1/4″

Spindle Nose: D1-5 Camlock

Spindle Speeds (18): 31.5 – 2,500 Rpm

Spindle Hole: 1.885″

Tailstock Taper: Mt #3

Tailstock Quill Travel: 5 1/8″

Inch Threading Range (48): 3 1/2 – 42 Tpi

Metric Threading Range (48): 0.40 – 7.00 Mm Pitch

Inch Feed Range (48): 0.0016 – .0399 Inch / Rev

Metric Feed Range (48): 0.042 – 1.013 Mm / Rev

Motor: 4.0, 6.3 HP / 220v / 3ph (2-Spd)

Dimensions: 87″ x 36″ x 55″ H

Weight: approx. 3,400 lbs.
