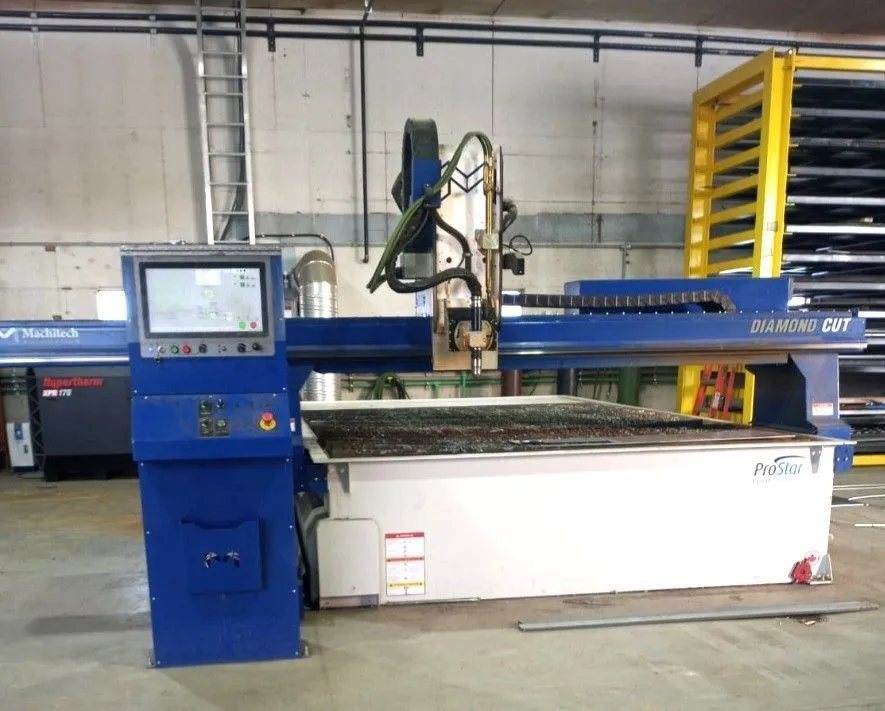

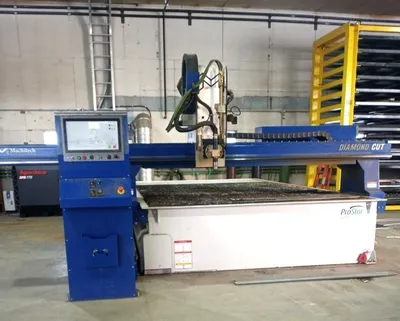

Machitech Diamond Cut XPR 170 CNC Plasma Cutter (2021)

Machitech Diamond Cut XPR 170 CNC Plasma Cutter (2021)

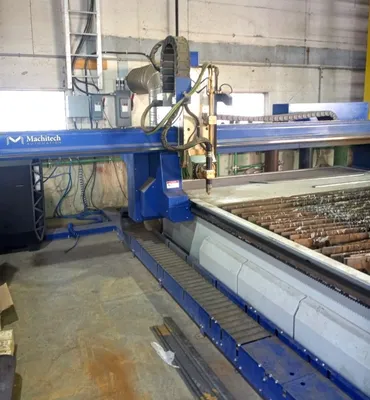

Table & Motion Specifications
The Diamond Cut series stands out for its heavy-duty, unitized structural frame and high-acceleration drive setup:

Table Configurations:
8' x 12'
Drive System: Driven by premium Bosch servo motors.
Rail Protection: Utilizes Machitech's patented inverted linear rail system to protect critical bearings from dust, slag, and cutting impacts.
Rapid Traverse Speed: Capable of high-speed travel up to 3,500 Inches Per Minute (IPM).Positional Accuracy: Precise tolerances down to ±0.002".
Multi-Axis Capability: Supports optional 5-axis bevel head configurations for advanced edge prepping.
CNC Control & Software
Operation and automation are handled through integrated Hypertherm and Machitech controls:
CNC Controller: Machitech NX4 Controller featuring a 19" glass touchscreen interface.
Native Integration: Full diagnostic suite for the XPR system built natively into the controller, including automatic consumable selection guidance wizards based on material and thickness.
Torch Height Control (THC): Automatic Torch Height Control that constantly samples arc voltage to keep the torch at the perfect cutting distance.
Safety Breakaway: Magnetic torch breakaway system to automatically pause production during a collision.CAD/CAM Software:
Bundled with Hypertherm ProNest 2025 CAD/CAM software for automated nested profile pathing.

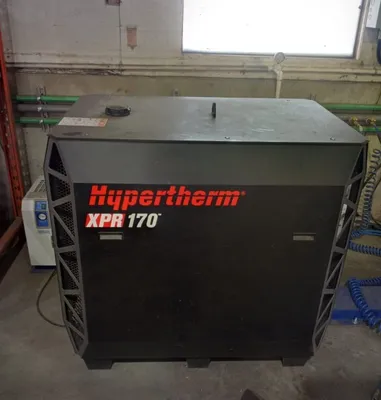

Hypertherm XPR170 Plasma Source Capabilities
The XPR170 power supply provides next-generation X-Definition edge quality on conductive metals:
Maximum Output Current: 170 Amps.
Maximum Output Power: 35.7 kW.Duty Cycle: 100% duty cycle rating at full 35.7 kW capacity.
Optimal Cutting Range: 3 mm to 35 mm (1/8″ to 1-3/8″).
Rapid Traverse Speed: 3500 IPM
Cutting Speed 2.5 MPM
Mild Steel Cutting Thickness:
Piercing Capacity: Up to 1-9/16" (40 mm) with argon assist.

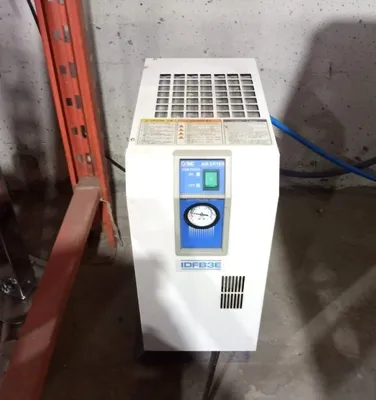

Production Capacity: Up to 1-3/8" (35 mm) using standard air.
Stainless Steel Capacity: Cuts up to 7/8" (22 mm).
Aluminum Capacity: Cuts up to 1" (25 mm).
Severance Capacity: Maximum limit up to 2-3/8" (60 mm)
