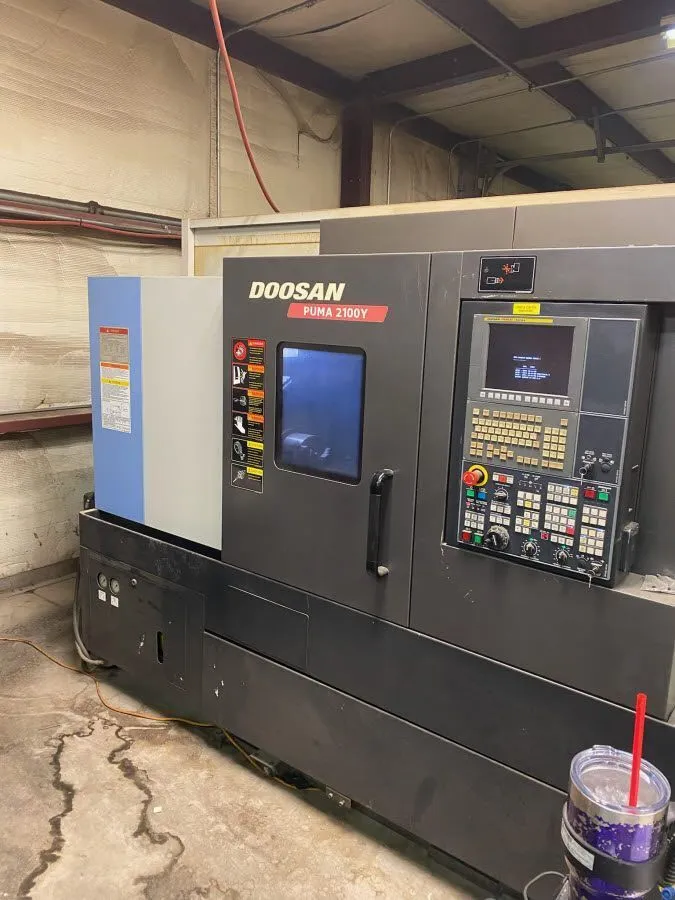

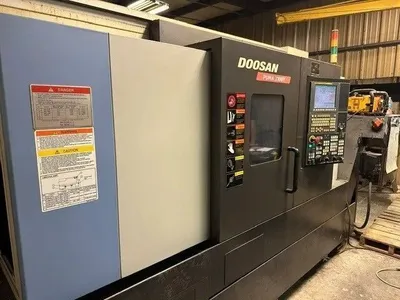

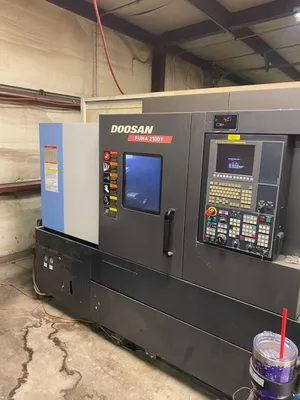

Doosan Puma 2100Y Live Tool CNC Lathe with and Y-Axis (2014)

Doosan Puma 2100Y Live Tool CNC Lathe with and Y-Axis (2014)

CAPACITY:
Swing over bed (swing over front door) 780 mm (680mm) (30.7" (26.8"))
Swing over carriage 630 mm (24.8")
Maximum turning diameter 406 mm (15.98")
Maximum turning length 520 mm (20.47”)
Distance between spindle nose and tailstock center 720 mm (28.35")
SPINDLE:
Spindle speed 50-5,000 rpm
Spindle nose A2-6
Draw tube ID 68 mm (2.56")
Spindle bore diameter 76 mm (2.99")
AC spindle motor (15% ED) 22 kW (30 hp)
Maximum spindle torque (10% ED) 358 N.m (264 ft-lb)
C-AXIS:
Minimum programmable angle .001 degree
Rapid traverse rate 200 rpm
C-axis repeatability +/-.006 degree
C-axis positioning accuracy .0167 degree
BED, SADDLE & CROSS SLIDE:
Angle of slant bed 30 degree
X axis travel 260 mm (10.2”)
Z axis travel 590 mm (23.2”)
X axis rapid traverse rate 30 m/min (1,181 ipm)
Z axis rapid traverse rate 30 m/min (1,181 ipm)
