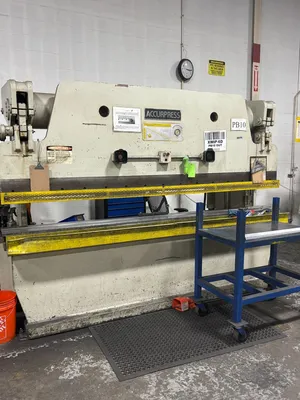

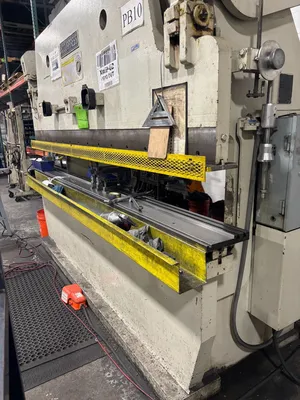

Accurpress 713010 130 Ton X 10' Hydraulic Press Brake

Accurpress 713010 130 Ton X 10' Hydraulic Press Brake

Specifications:
Tonnage: 130 Tons
Overall length bed/ram: 10’
Distance between housings: 100”
Ram depth stop style: limit switches with fine adjustment
Ram tilt adjustment: Powered
Number of gauging axis: 1
Stroke length: 8”
Throat depth: 10”
Clamp style American
Ram clamps (sectionalized or solid bar): Sectionalized
Hydraulic or manual clamping: Manual
Die space (open height): 14”
Die space (closed height): 6”
Number of cylinders: 2
Advance speed: 115 IPM
Pressing speed: 24 IPM
Return speed: 260 IPM
Die holder type: Standard single groove
Bed height: 34”
Bed cap width: 4.5”
Main motor: 15 H.P.
Voltage: 240 / 3 phase
Dimensions: 143” x 53” x 84”
Weight: 15,000 Lbs.
