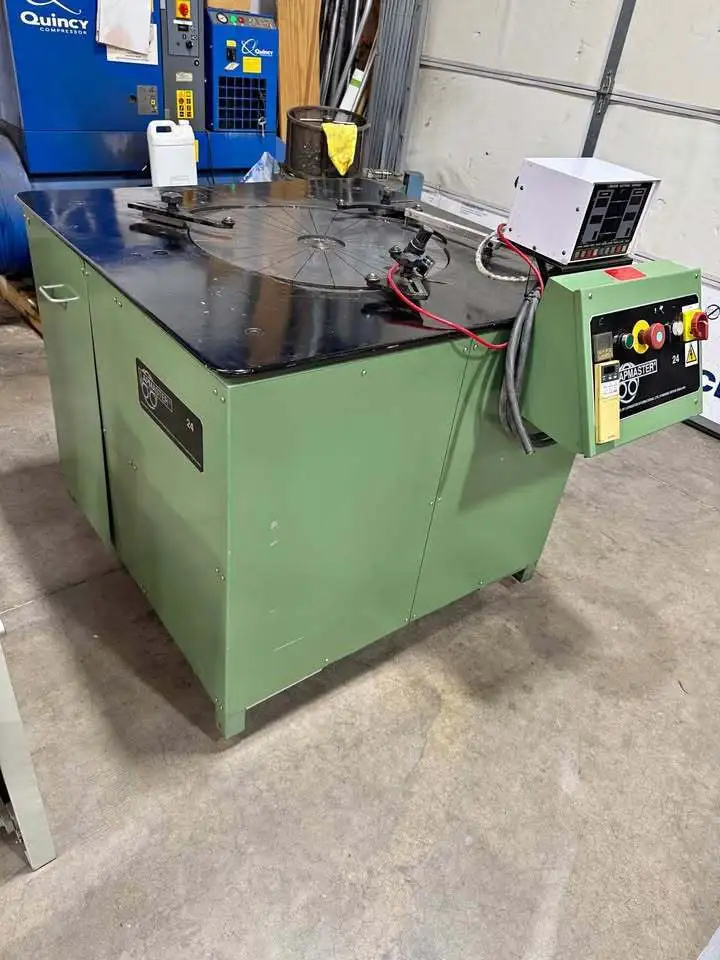

Lapmaster 24 Lapping Machine

Lapmaster 24 Lapping Machine

Capacity and Tooling

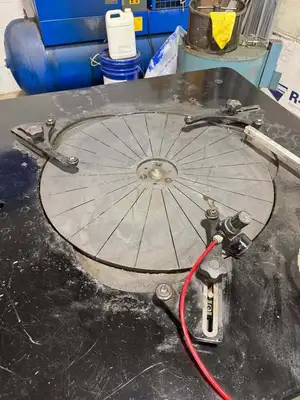

Lapmaster 24 Plate Diameter: 24″
Cast Iron Serrated Conditioning Rings: (3) 11.25″ O.D. x 9.75″ I.D.
Standard RPM: 70
Lap Plate Speed: 70 RPM
Drive Motor: 2 HP
Electrics: 460/3/60
Dimensions – Approximate: 43″(L-R) x 52″(F-B) x 52″(H)
Weight – Approximate: 1,225 Lbs.
• Plate Diameter: 24 inches (610 mm)

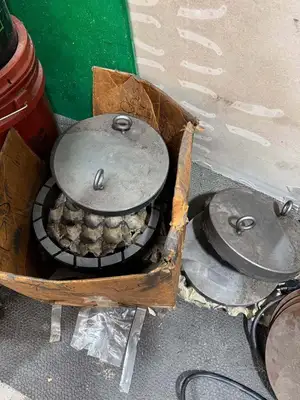

• Conditioning Rings: 3 or 4 high-density, serrated cast iron rings
• Ring Dimensions: 11.2 inches (286 mm) outer diameter
• Workholder Discs: Blank workholder discs with felt pads
Mechanical Specifications
• Drive Motor: 2 HP / 1.5 kW motor with a heavy-duty reduction gearbox
• Lap Plate Speed: Fixed at 70 RPM (variable speed drive is optional)
• Weight: ~1,225 lbs to 1,550 lbs depending on the machine version (Open Face vs. Pneumatic Lift)
• Dimensions: 43 inches (W) x 52 inches (D) x 52 inches (H)
Operation and Systems
• Abrasive System: Floor-standing slurry distribution system with a pump and tank
• Timer: Multiple-range digital process timer

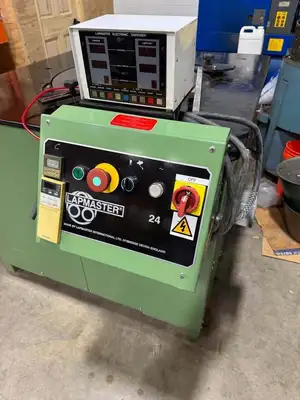

• Controls: 110V operator controls compliant with EN 60 204 safety standards
• Pneumatic Lift: Optional model available; features vertical pneumatic cylinders on sliding rails to adjust pressure loads
Current Electrical Arrangement: 460/3/60
