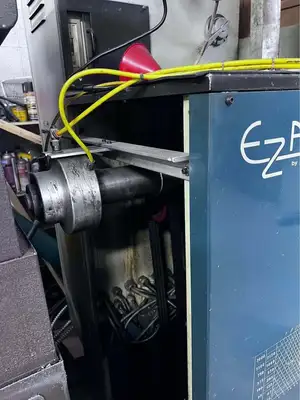

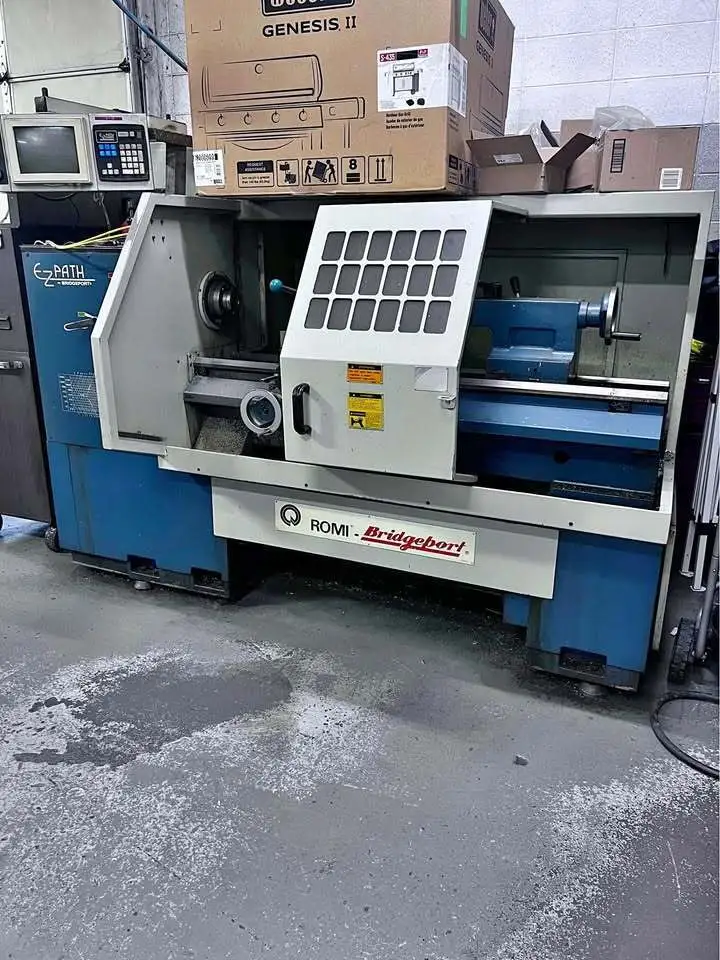

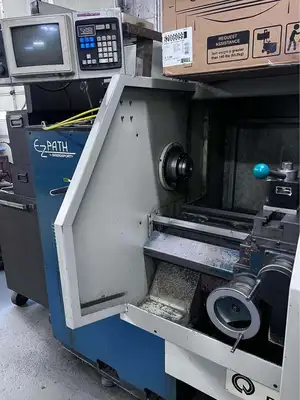

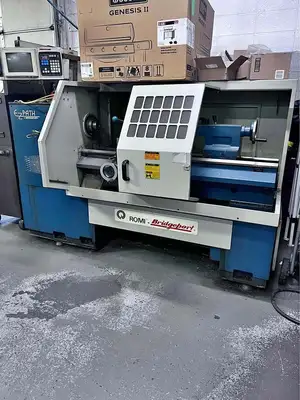

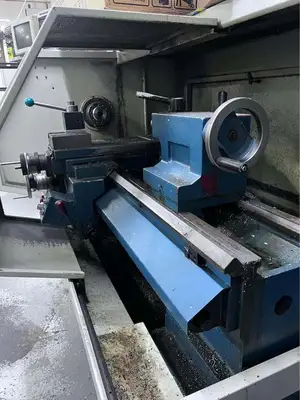

Bridgeport Romi EZ Path 16" x 40" CNC Lathe

BRIDGEPORT ROMI EZ PATH 16.5" X 40" LATHE
w/EZ PATH PC BASED CONTROL
MODEL: EZ PATH NEW: 1996

SPECIFICATIONS:
SWING OVER BED......................... 16.5"
DISTANCE BETWEEN CENTERS............... 40"
SWING OVER CROSS SLIDE................. 8.6"
SPINDLE NOSE........................... ASA A2-5"
SPINDLE BORE........................... 1.97"
SPINDLE SPEEDS (24):
HIGH RANGE (12 SPEEDS)............... 67 TO 3,000 RPM
LOW RANGE (12 SPEEDS)................ 37.5 TO 1,500 RPM
RAPID TRAVELS.......................... 250 IPM, (Z & X)
TAILSTOCK QUILL TRAVEL................. 6.3"
TAILSTOCK QUILL DIAMETER............... 2"
TAILSTOCK TAPER........................ #4MT
FLOOR SPACE REQUIRED................... 68" X 110"
APPROXIMATE WEIGHT..................... 4,000 LBS.
