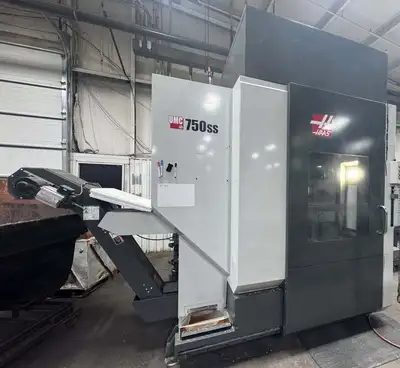

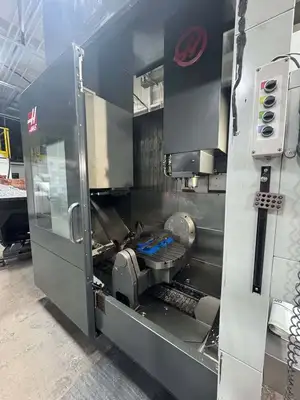

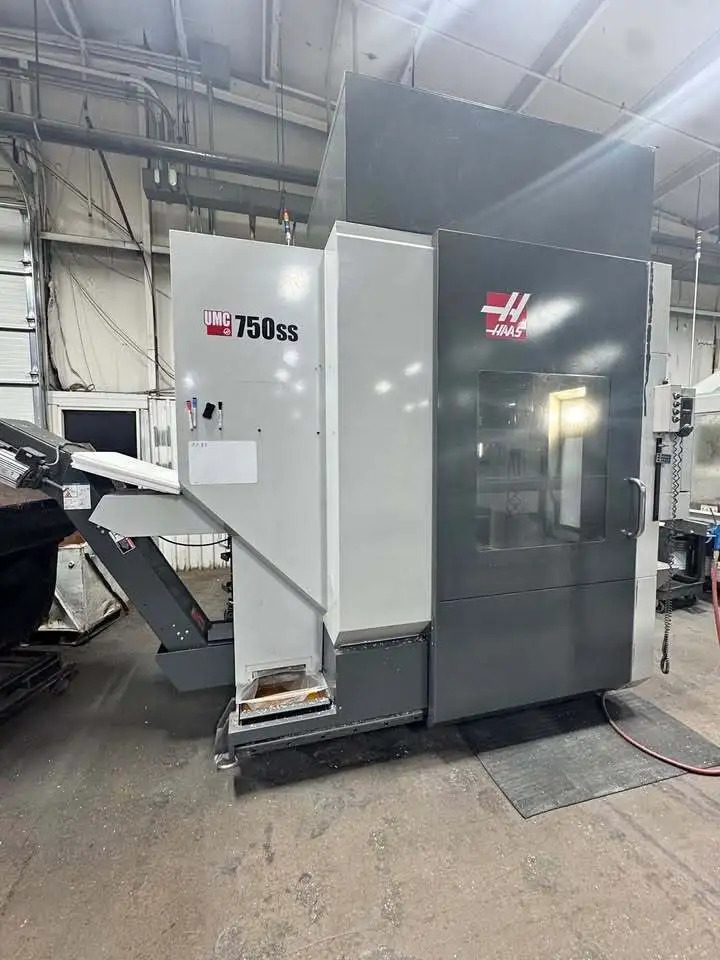

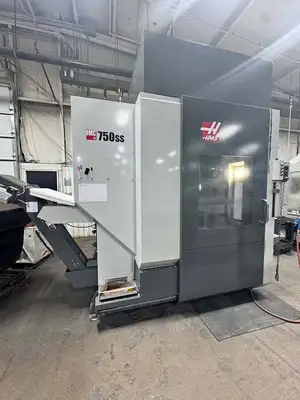

Haas UMC-750SS 5-Axis Vertical Machining Center (2015)
Have one to sell?
ConditionUsed
1 available
2015 HAAS UMC-750SS 5-Axis Machining Center: Experience high-speed machining with a 15,000 RPM spindle, 40-position ATC, 2-axis trunnion table, and advanced HAAS CNC control. Features Renishaw wireless system and dynamic work offsets. Great for precise projects.
TABLE:
B-Aixs Tilt/Travel: +120/-35 DEGREES
C-Aixs Rotation: 360 DEGREES
Table Diameter: 19.7"
Table Work Weight Capacity: 660 LBS.
- Haas CNC Control With 1 GB Memory Expansion
- RJH-C - Remote Jog Handle With Color LCD
- Ethernet Interface
- Haas Connect Option
- 2-Axis Programmable Trunnion Table
- High Speed Machining Vps Editing
- Home- Second Home Position
- Media Display - Media Display M-Code
- WIPS-R-EC Renishaw Intuitive Probing
- Renishaw OTS Touch-Off Probe
- MACROS
- UMC-750SS - VMC UMC Medium
- Rotation And Scaling
- RTAP-3 Rigid Tapping
- DWO-Dynamic Work Offsets & TCPC-Tool Center Point Control
- M19 Spindle Orientation
- Compensation Tables
- Programmable Coolant Nozzle
- 300 PSI Thru Spindle Coolant
- EC-E4 Belt-Type Chip Conveyor
-- Price Reduced Due to A and C Axis Issue
