| size | 41" x 20" x 20" | 41" x 20" x 20" |
| X Travel | 41" | 1,041.4 mm |
| Y Travel | 20.9" | 530.86 mm |
| Z Travel | 20.1" | 510.54 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 53.1" | 1,348.7 mm |

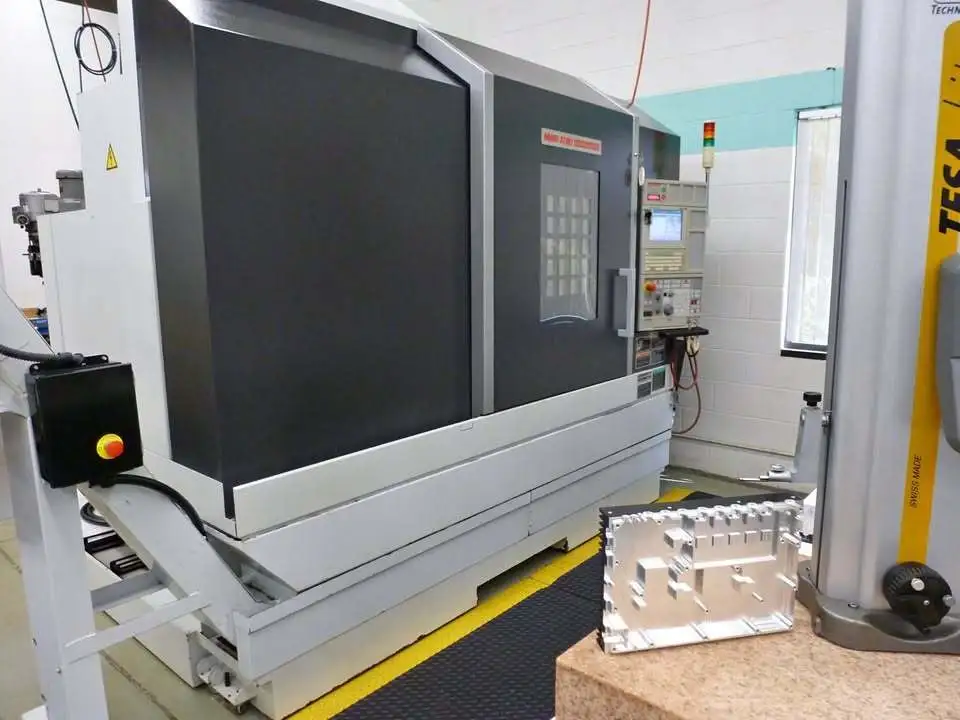

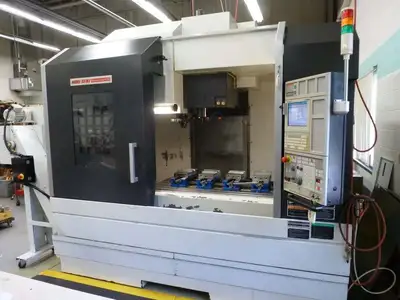

Mori Seiki DURAVERTICAL 5100 Vertical Machining Center (2016)
X-Axis Travel: 41.3 inches (1050 mm)
Y-Axis Travel: 20.9 inches (530 mm)
Z-Axis Travel: 20.1 inches (510 mm)
Table Size: 53.1× 23.6 inches (1350 × 600 mm)
Max. Workpiece Weight: Approx. 2,200 lbs (998 kg)
Spindle Taper: CAT40
Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Tool Capacity: 30 ATC
Machine Weight: Approx. 14,000 lbs
width 107.9” x depth 94.5” x height 101.0”
Fanuc Oi-MD Control
30 tools storage magazine capacity
12,000 rpm Spindle
BT Tool Arm
4 mounted Vise’s to table 6” KURT Optional VERSALOCK VISE Model # 3600V
Through Spindle coolant system interface only, side thru
Servo Amplifier and NC parts for DDRT rotary table (connected from ceiling)
Lookahead control
Bell-shaped acceleration/deceleration after cutting feed interpolation
Additional built in work light, total of two
Internal chip conveyors (4 spiral type)
LNS Turbo Micro-scraper 500 Chip conveyor, external, Left side discharge Model # 53858092
Spindle Oil Cooler/ Thermal displacement
MAPPS I98942 A08
Coolant tank
3 Stage Signal Tower
Mass of machine 14,080 pounds
High precision, high speed Direct Drive Spindle/ faster acceleration
Machine size width 107.9” x depth 94.5” x height 101.0”
