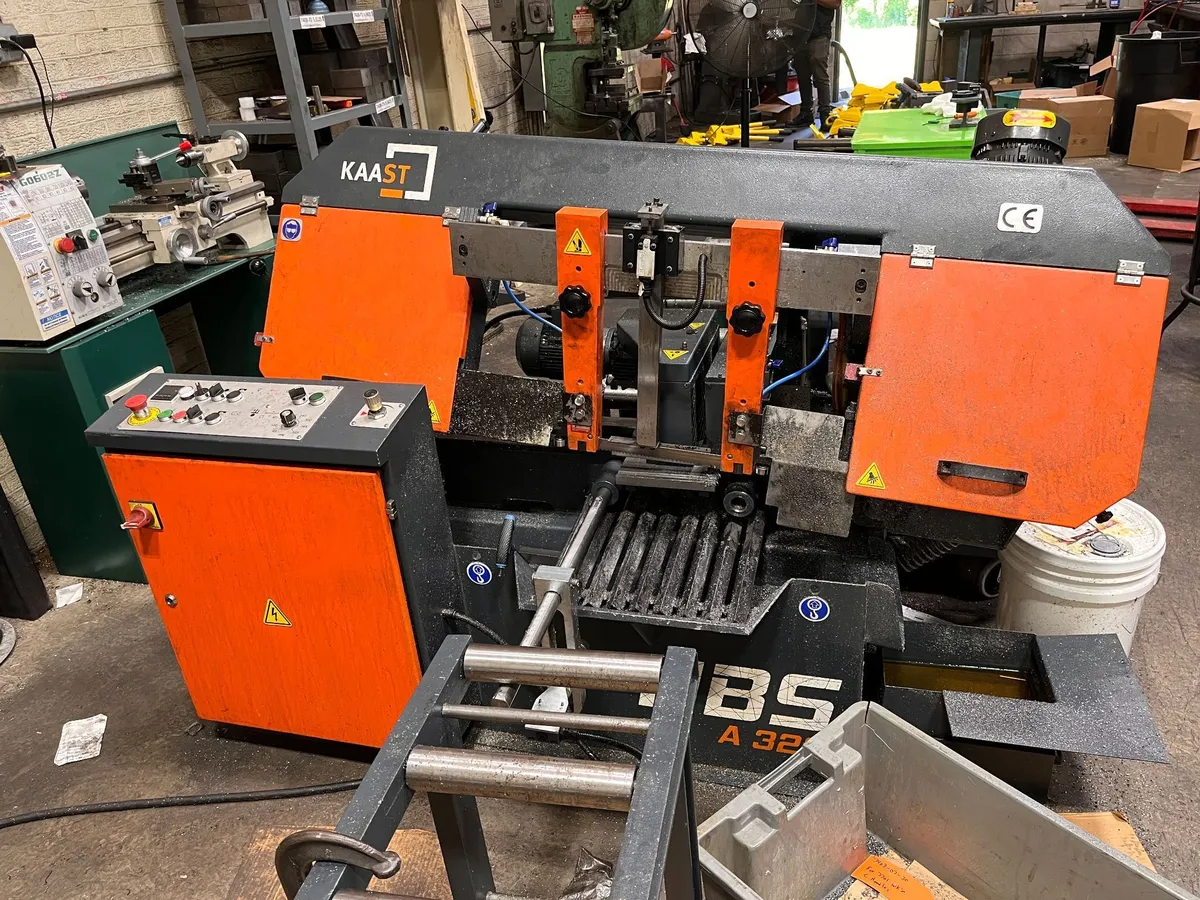

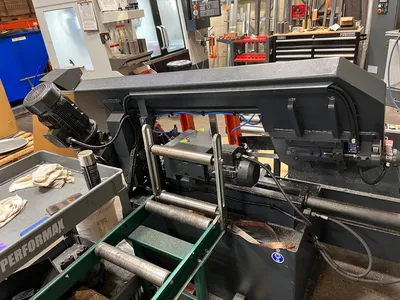

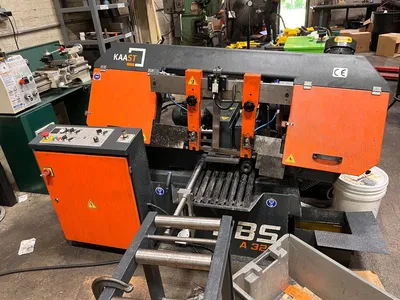

Kaast HBS A320 Horizontal Band Saw (2024)

Kaast HBS A320 Horizontal Band Saw (2024)

Cutting Capacity
Round (90°): 12.6" (320 mm)
Square (90°): 12.6" x 12.6" (320 x 320 mm)
Flat / Rectangular (90°): 12.6" x 13.8" (320 x 350 mm)
Miter Cutting: None (90° straight cuts only for this fully-automatic model)
Drive Motors & Power
Main Blade Motor: 3.0 HP (2.2 kW)
Hydraulic Pump Motor: 0.5 HP (0.37 kW)
Coolant Pump Motor: 0.16 HP (0.12 kW)
Standard Electrical: 220V or 440V / 3-Phase / 60 Hz
Blade & Speed Dimensions
Blade Dimensions: 144" x 1.06" x 0.035" (3660 x 27 x 0.9 mm)
Blade Speed: 65 to 295 feet per minute (20–90 m/min)
Speed Regulation: Infinitely variable via electronic inverter
Material Feeding & Automation
Feed Style: Automatic hydraulic roller feed with vice clamping
Single Stroke Feed Length: Up to 19.6" (500 mm) per stroke
Multi-Stroke Feeding: Unlimited (re-feeds automatically for longer parts)
Control Interface: PLC touch screen with programmable piece counter
Footprint & Weight
Machine Dimensions: 75" L x 34" W x 54" H (1900 x 850 x 1350 mm)
Machine Weight: 1,585 lbs (720 kg)Working Height: 25.2" (640 mm)
