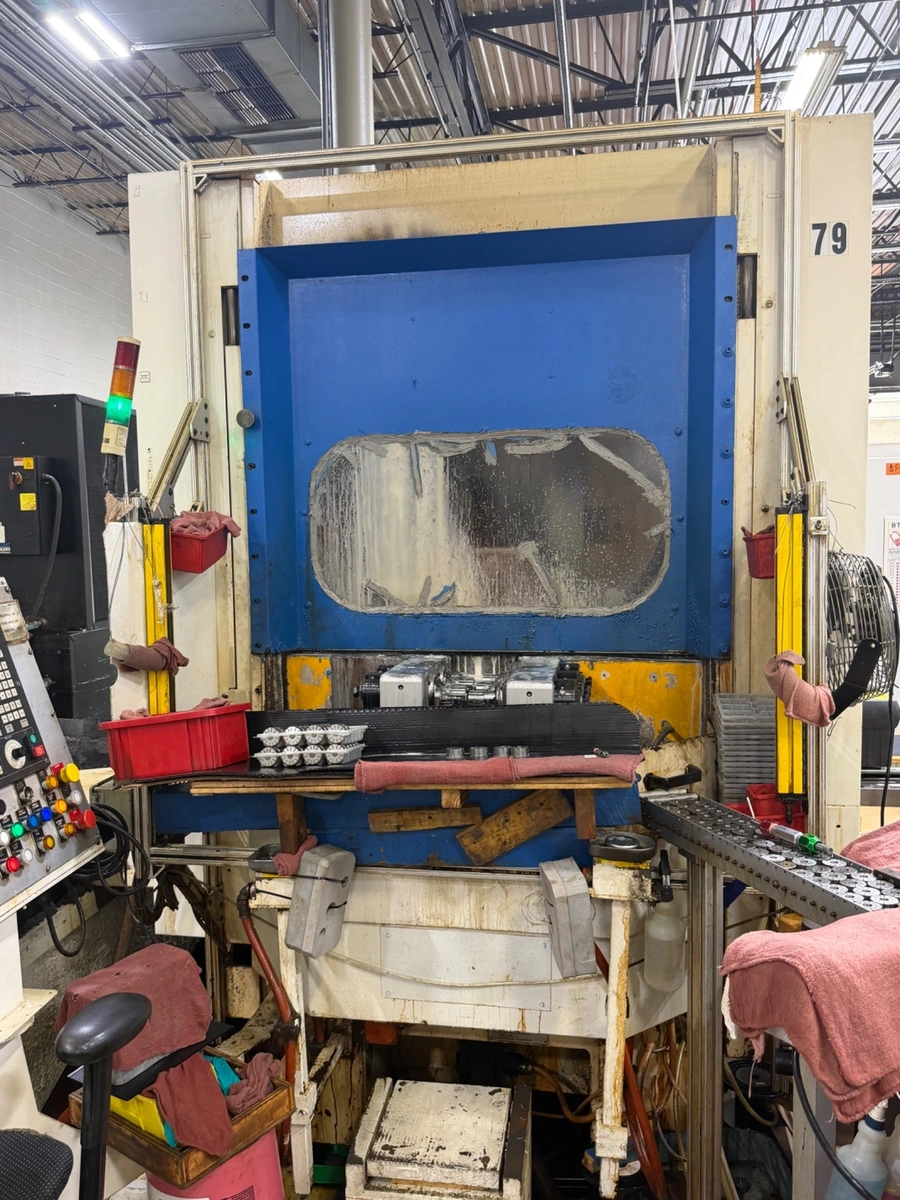

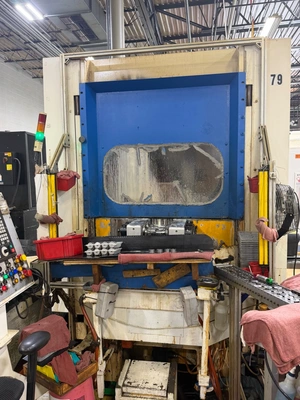

Magerle MFS 12.45.32 CNC Creep Feed Grinder

Magerle MFS 12.45.32 CNC Creep Feed Grinder

Longitudinal Travel (X-axis): 47.24 inches (1200 mm nominal)
Transverse Travel (Y-axis): 17.72 inches (450 mm)
Vertical Travel (Z-axis): 12.60 inches (320 mm)
Table Width: 17.72"
Table Length: 47.24"
Grinding Method: Fully integrated creep feed grinding with continuous dressing capabilities.
Performance & Structural Features
Creep Feed Capability: Outfitted with ultra-low, highly stable hydrostatic or precision linear guideway table feeds to allow full-depth profile grinding in a single pass.
Rigid Cast Iron Design: Built on a heavy, vibration-dampening monolithic bed structure designed to handle intense grinding forces and ensure excellent thermal stability.
High-Power Spindle: Designed to drive wide or large-diameter profile wheels, offering high torque at lower RPMs specifically tailored for creep feed operations.
Dressing Integration: Supports overhead or table-mounted diamond roll dressers for automated wheel profiling and sharp-edge compensation during the machining cycle.
Machine Weight: 15,000 lbs
