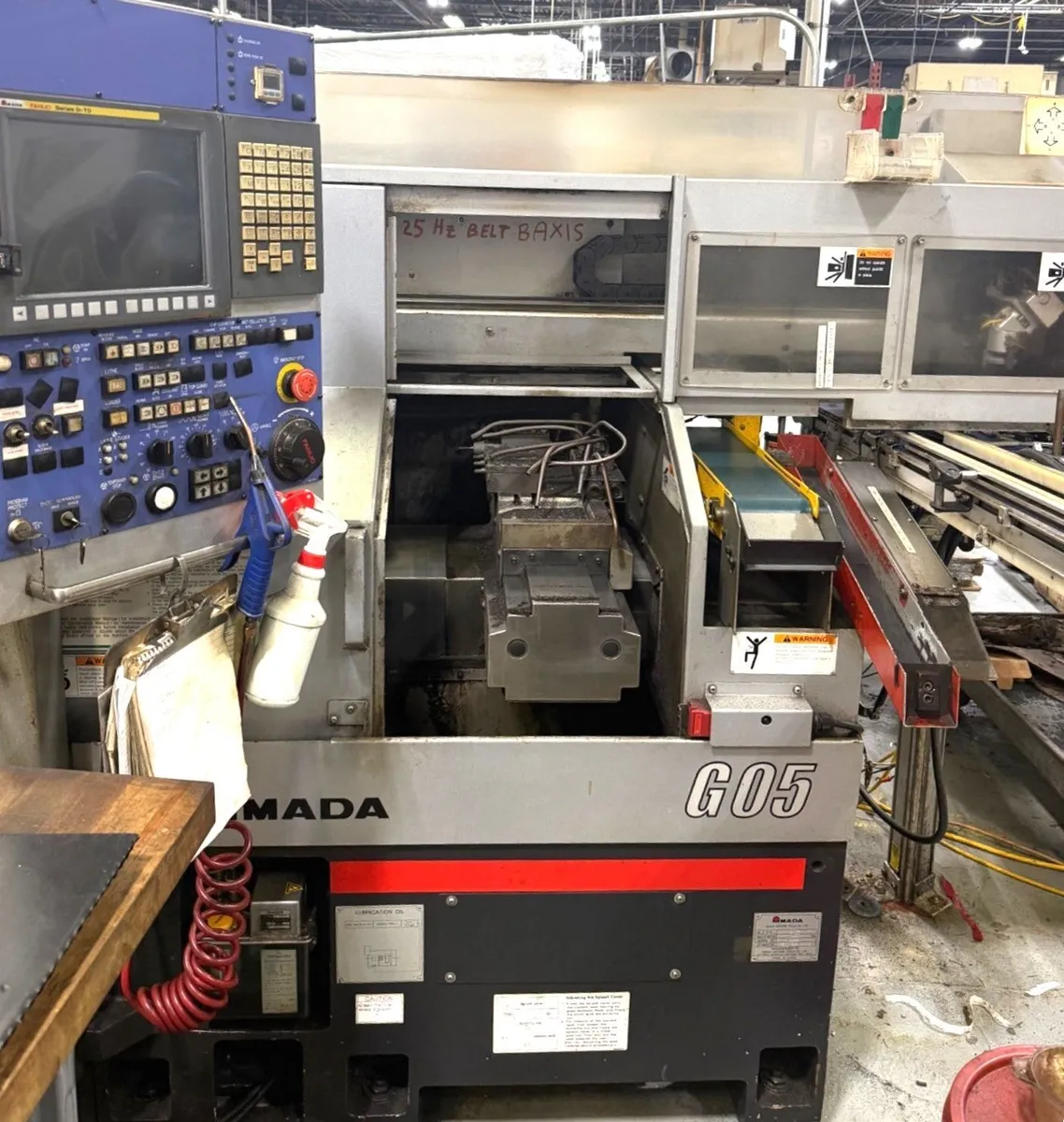

Amada Wasino G-05 CNC Gang Style Lathe (2013)
Have one to sell?
ConditionUsed
1 available
Amada Wasino G-05 CNC Gang Style Lathe (2013)
Amada Wasino G-05 CNC Gang Style Lathe (2013)
Chuck Size: 4″
Spindle Nose: 3.93″
Spindle Bore: 1.10″
Spindle Speed: 8,000 RPM
Spindle Motor: 5 HP
Spindle Center Height: 37.4″
X Axis Travel: 8.66″
Z Axis Travel: 8.66″
X Axis Rapid Traverse: 590 IPM
Z Axis Rapid Traverse: 590 IPM
Floor Space Requirement: 65″ x 66″
Machine Height: 63″
Machine Weight: 3,500 LBS
Power Requirements: 208/60/3 phase
Loader Specs:
Workpiece Size: 2.2″ x 2.0″
Workpiece Weight: 1.1 LBS
Jaw Stroke: 0.1
Fanuc 0iTD CNC
LNS Turbo Magentic Chip Conveyor
Parts Conveyor
Amada Wasino G-05 CNC Gang Style Lathe (2013)
Imperial
| size | 4" Chuck |
| Swing | 0.3409" |
| Machining Length | 0.3409" |
| # Axis | 2 |
| Chuck Size | 4" |
| Bar Capacity | 0.0433" |
| Power | 5 hp |
| Max RPM | 8,000 RPM |
| Tailstock | No |
| Live Tooling | No |
| Sub Spindle | No |
Amada Wasino G-05 CNC Gang Style Lathe (2013)
Chuck Size: 4″
Spindle Nose: 3.93″
Spindle Bore: 1.10″
Spindle Speed: 8,000 RPM
Spindle Motor: 5 HP
Spindle Center Height: 37.4″
X Axis Travel: 8.66″
Z Axis Travel: 8.66″
X Axis Rapid Traverse: 590 IPM
Z Axis Rapid Traverse: 590 IPM
Floor Space Requirement: 65″ x 66″
Machine Height: 63″
Machine Weight: 3,500 LBS
Power Requirements: 208/60/3 phase
Loader Specs:
Workpiece Size: 2.2″ x 2.0″
Workpiece Weight: 1.1 LBS
Jaw Stroke: 0.1
Fanuc 0iTD CNC
LNS Turbo Magentic Chip Conveyor
Parts Conveyor
