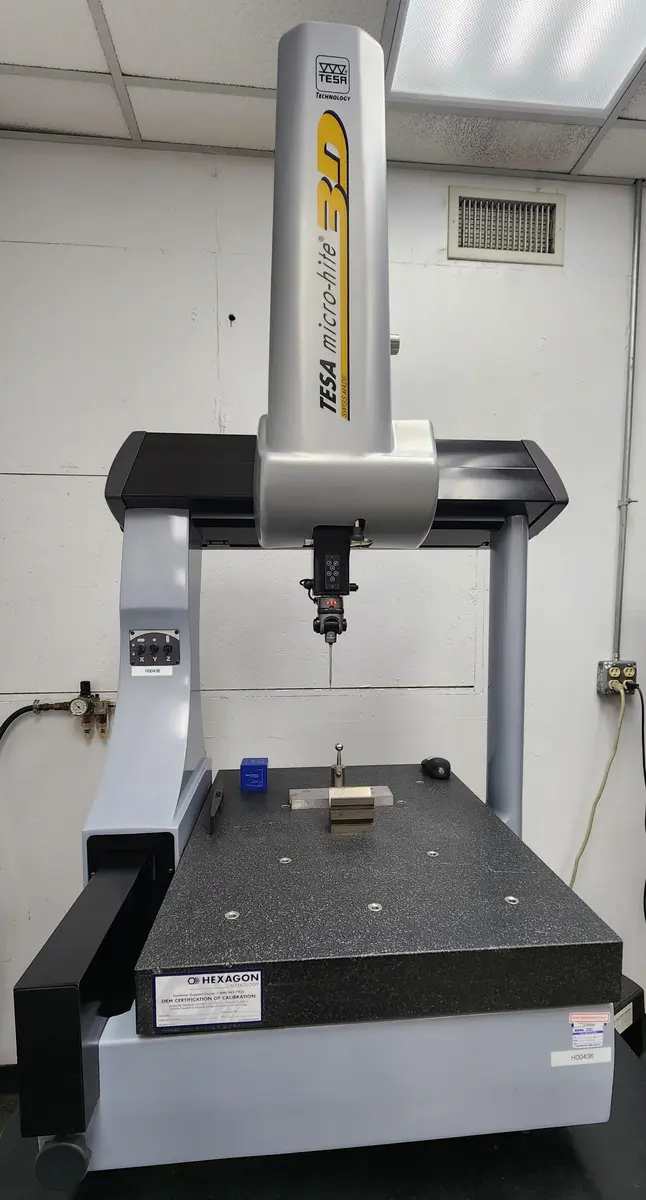

Brown & Sharpe TESA Micro-Hite 3D 4-5-4 CMM Coordinate Measuring Machine (2012)

Brown & Sharpe TESA Micro-Hite 3D 4-5-4 CMM Coordinate Measuring Machine

Measuring Range & Volume
X-Axis Travel: 440 mm (approx. 18 inches)
Y-Axis Travel: 490 mm (approx. 20 inches)
Z-Axis Travel: 390 mm (approx. 15.4 to 17 inches depending on configuration)
Accuracy & Metrology Performance
Maximum Permissible Error
Manual Mode: 3 + 4L / 1000 μm (where L is the measuring length in mm)
Motorized/DCC Mode: 2.5 + 3.9L / 1000 μmRepeatability: 2 μm
Resolution: 0.001 mm (0.00001 in) via a patented opto-electronic scale system
Physical & Structural Features
Machine Base:
Rigid granite measuring table, typically measuring roughly 29.5" x 22" x 3" with integrated thread points for fixture mounting.
Bearing System:
22 high-precision air bearings ensuring fluid movement across all three coordinate axes.
Maximum Workpiece Weight: Up to 227 kg (approx. 500 lbs).
Total Machine Mass: Approximately 300 to 350 kg (machine frame and table combined).
