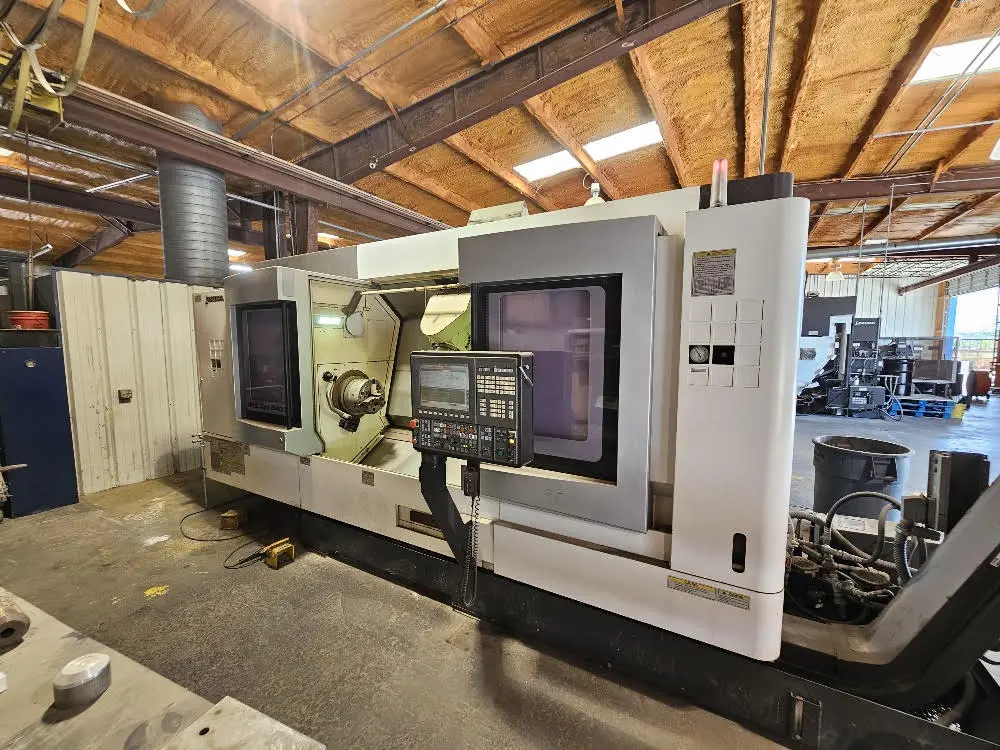

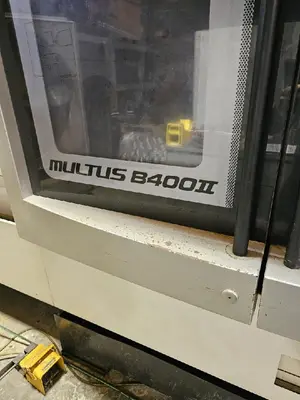

Okuma Multus B400IIW/1500 Multi Function CNC Lathe (2012)
Have one to sell?
ConditionUsed
1 available
Okuma Multus B400IIW/1500 Multi Function CNC Lathe (2012), Universal head, sub-spindle, live tooling, and Y-axis. . Equipped with features such as Hi-Cut Pro, Admac 3D monitor, 80 station ATC.
Okuma Multus B400IIW/1500 Multi Function CNC Lathe (2012)
Max Swing Over Saddle: 27.95"
Max Machining Diameter: 27.95"

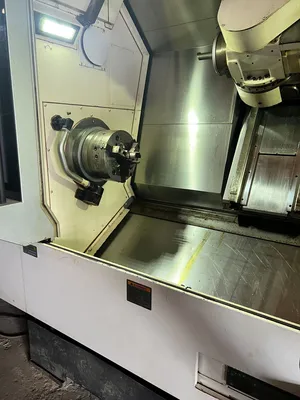

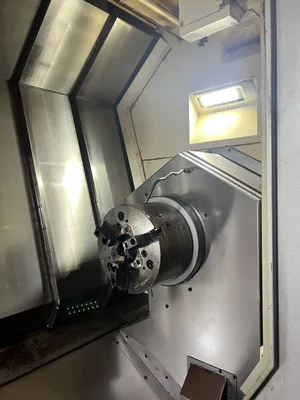

Main Spindle Chuck Size: 12" Kitagawa B-12" 3-Jaw Power Chuck
sub spindle chuck size: 12" Kitagawa B-12, 12" 3-Jaw Power Chuck

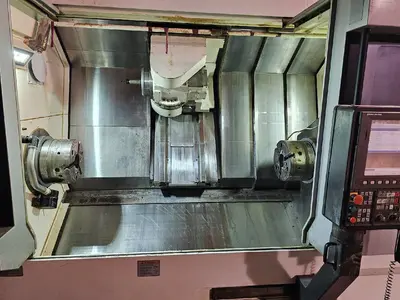

Max Working Distance Between Spindles: 59.06"
X-Axis (Cross Travel): 27.17"
Z-Axis (Longitudinal Travel): 60.83"
Y-Axis Travel: 9.02"
B-Axis (Rotation of Universal Head): 225°
C-Axis (Indexing Positions of Main Spindle): .001°
Spindle Bore: 4.33"
Spindle Nose: A2-11
Spindle Horsepower: 40 HP
SPINDLE SPEED RANGE: 38 - 3,800 RPM
Capacity: 80 Station Capto C6 ATC
Live Tooling Horsepower: 14 HP
Live Tooling Speed Range: 90 - 6,000 RPM
B-axis range: 225°
0.001° with 6,000 rpm:
OSP P300S CNC
Main spindle and Sub-spindle: 12" Kitagawa B-15 12" 3-Jaw Power Chuck
Hi-Cut Pro
Hi-G Control
Admac 3D Virtual Monitor

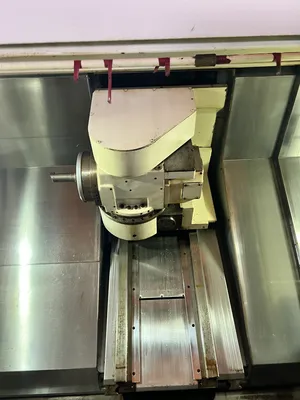

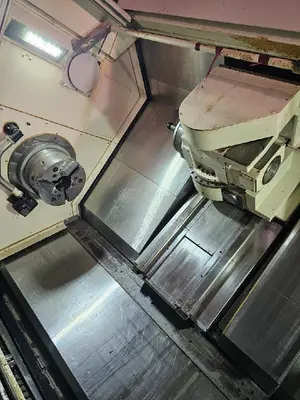

Full Contouring B-Axis Universal Head
Lathe Tool Indexing

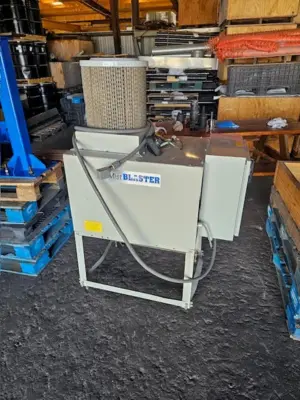

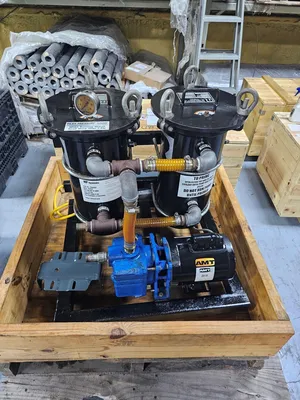

Complete with Chip Blaster 1
1000 PSI Coolant Though Spindle
Touch Setter
Touch Sensor
H1 Turret
Elevated Chip Conveyor

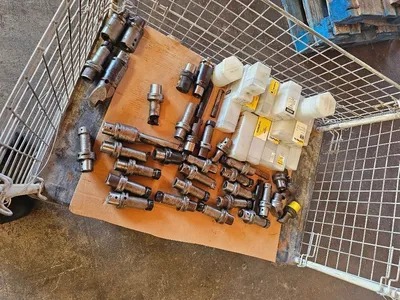

2- Tooling Carts with Tooling

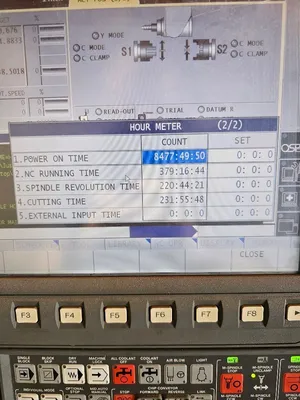

Power ON 8477
Running Time 379
Spindle Time 220
Cut Time 231
Dimensions Below: L x W x H:
Machine: 193”X9’X9’
Chip Conveyor: 200”X49 1/2”X6’
Chip Blaster: 25 ½”X 54”X 80”
Spindle Chiller: 40 ½”X14 ¼”X39”
Oil Cooler: 17 ¾” X 17”X39”
Weight: 34,000lbs
Okuma Multus B400IIW/1500 Multi Function CNC Lathe (2012), Universal head, sub-spindle, live tooling, and Y-axis. . Equipped with features such as Hi-Cut Pro, Admac 3D monitor, 80 station ATC.
Imperial
| size | 12" Chuck |
| Swing | 27.95" |
| Machining Length | 60" |
| Chuck Size | 12" |
| Bar Capacity | 4.33" |
| Power | 40 hp |
| Max RPM | 10,000 RPM |
| Turning Dia | 27.95" |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC |
Okuma Multus B400IIW/1500 Multi Function CNC Lathe (2012)
Max Swing Over Saddle: 27.95"
Max Machining Diameter: 27.95"
Main Spindle Chuck Size: 12" Kitagawa B-12" 3-Jaw Power Chuck
sub spindle chuck size: 12" Kitagawa B-12, 12" 3-Jaw Power Chuck
Max Working Distance Between Spindles: 59.06"
X-Axis (Cross Travel): 27.17"
Z-Axis (Longitudinal Travel): 60.83"
Y-Axis Travel: 9.02"
B-Axis (Rotation of Universal Head): 225°
C-Axis (Indexing Positions of Main Spindle): .001°
Spindle Bore: 4.33"
Spindle Nose: A2-11
Spindle Horsepower: 40 HP
SPINDLE SPEED RANGE: 38 - 3,800 RPM
Capacity: 80 Station Capto C6 ATC
Live Tooling Horsepower: 14 HP
Live Tooling Speed Range: 90 - 6,000 RPM
B-axis range: 225°
0.001° with 6,000 rpm:
OSP P300S CNC
Main spindle and Sub-spindle: 12" Kitagawa B-15 12" 3-Jaw Power Chuck
Hi-Cut Pro
Hi-G Control
Admac 3D Virtual Monitor
Full Contouring B-Axis Universal Head
Lathe Tool Indexing
Complete with Chip Blaster 1
1000 PSI Coolant Though Spindle
Touch Setter
Touch Sensor
H1 Turret
Elevated Chip Conveyor
2- Tooling Carts with Tooling
Power ON 8477
Running Time 379
Spindle Time 220
Cut Time 231
Dimensions Below: L x W x H:
Machine: 193”X9’X9’
Chip Conveyor: 200”X49 1/2”X6’
Chip Blaster: 25 ½”X 54”X 80”
Spindle Chiller: 40 ½”X14 ¼”X39”
Oil Cooler: 17 ¾” X 17”X39”
Weight: 34,000lbs
