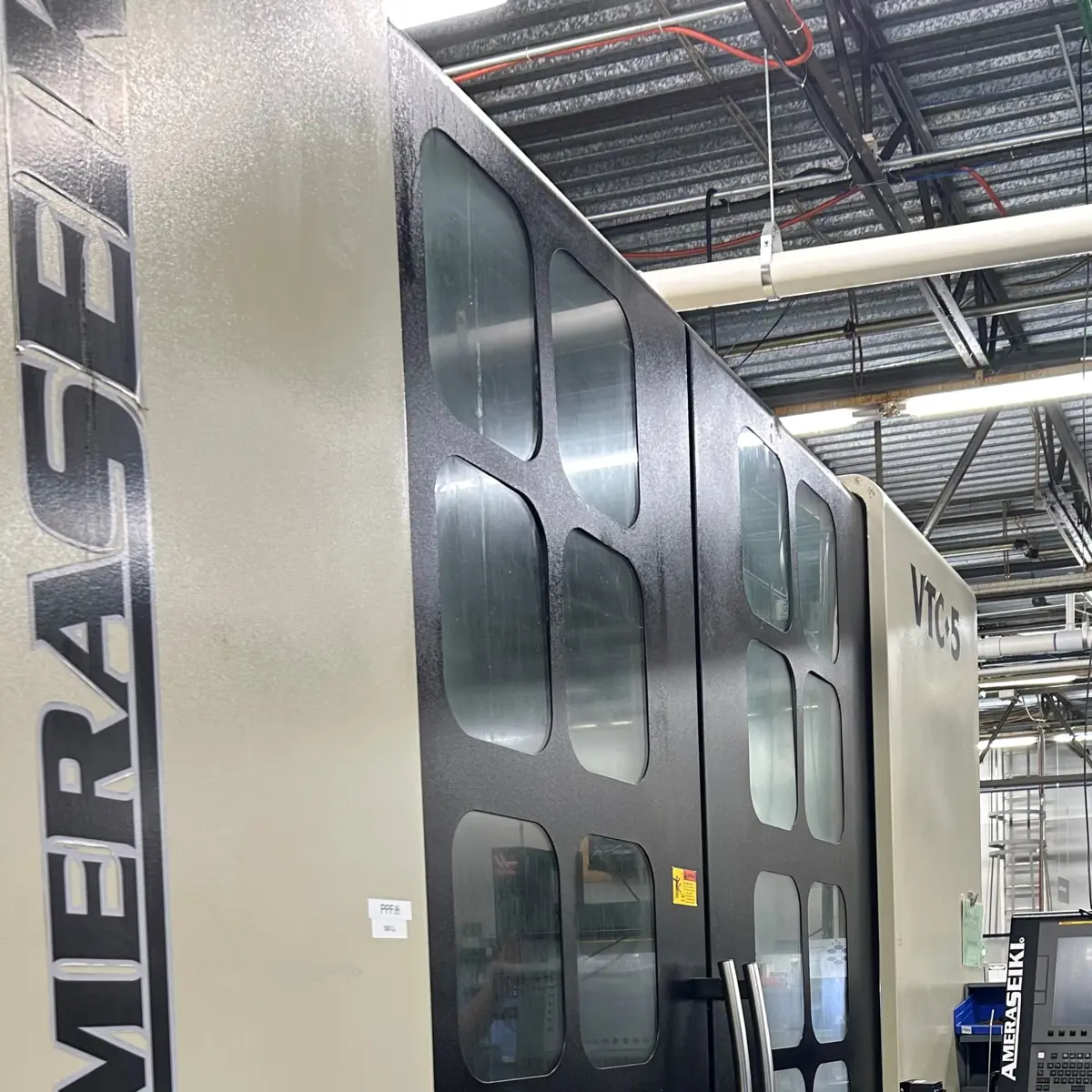

Amera Seiki VTC-5 Vertical Machining Center (2022)
Have one to sell?
ConditionUsed
1 available
Amera Seiki VTC-5 Vertical Machining Center (2022), The fixed table also allows you to work on extremely long, heavy pieces that can’t be attached safely to the moving table on a traditional bridge mill or machining center. We offer our VTC in two sizes to best meet your machining requirements. See the specifications page to find out if Amera-Seiki’s Vertical Traveling Column mill is the best machine for your job!
Amera Seiki VTC-5 Traveling Column Vertical Machining Center (2022)
X-Axis: 86.6 inches (2,200 mm)
Y-Axis: 24.4 inches (620 mm)
Z-Axis: 24.4 inches (620 mm)
Spindle Specifications
Spindle Taper: 40
Standard Speed: 10,000 RPM
Feed & Table
Table Size 2,500 x 600 mm (approximately 98.4" x 23.6")
Rapid Feed Rate (X/Y/Z): 32,000 mm/min
Maximum Table Load: 1,800 kg
Fanuc Oi-MB
Full Enclosure Guard
Rigid Tapping
Remote Handwheel
Halogen Work Light
Beacon Light
Auto. Power Off
Auto Lube System
Spindle Air Purge System
Spindle Air Blow System
Coolant System
Heat Exchanger for Electrical Box
